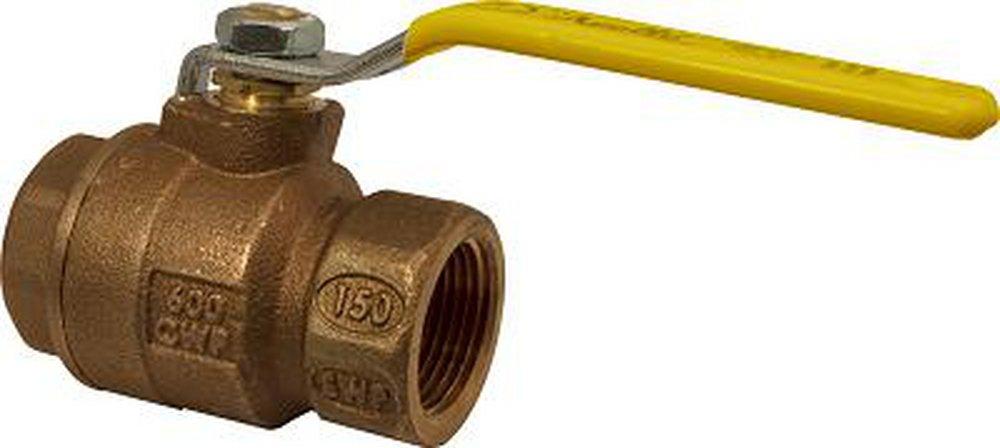

Apollo Valves 77C10201A 77C-A Series 3/8 in. Bronze Full Port NPT 600# Ball Valve

Product Description

The Apollo Valves 77C10201A is a bronze full-port ball valve designed for various fluid applications. It has a three-eighths inch connection with NPT threading for secure installation. This valve features a blow-out proof stem design and is manufactured in the USA using high-quality materials to ensure durability.

• Full-port design for maximum flow
• Adjustable stem packing for easy maintenance
• Factory tested for reliability

Product Highlights

This ball valve provides true full-port flow performance, making it ideal for contractors and plumbing professionals.

Product Information

Standard Information

• Brand: Apollo Valves
• Connection Size: 3/8 in

Technical Specifications

• Model: 77C-100
• Pressure Rating: 600 psi CWP, 150 psi WSP
• Flow Coefficient: 7 Cv
• Temperature Rating: 450 deg F
• Material: Bronze
• Seat Material: RPTFE
• Ball Material: Chrome-Plated Brass
• Standards/Certifications: MSS SP-11, CRN OC10908.5C, IAPMO/ANSI Z1157-2014e1 certified, cUPC listed
