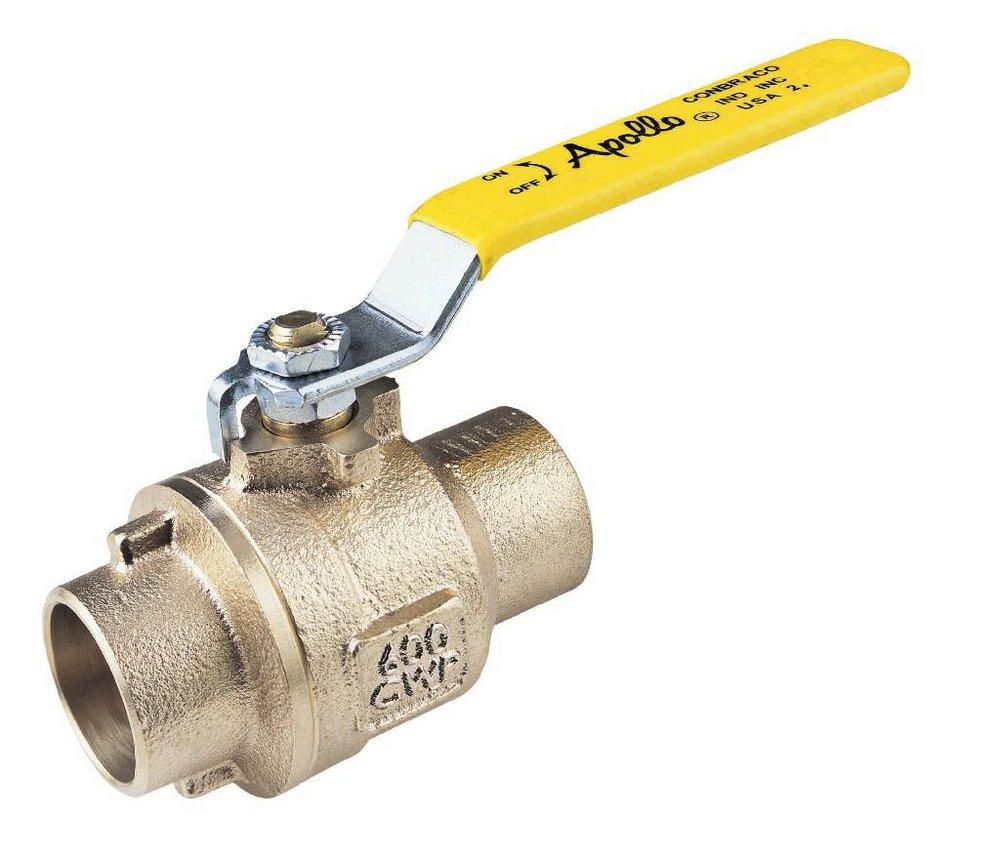

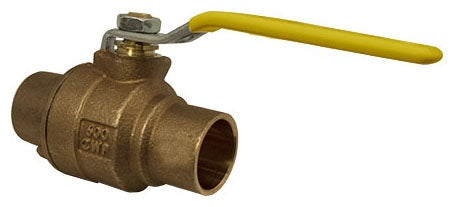

Apollo Valves 77C-207-01A 1-1/2 Inch Full Port Solder Ball Valve

Product Description

The Apollo Valves 77C-207-01A is a two-piece, full-port ball valve designed for a variety of plumbing applications. Its soldered connections provide durability and reliability under high pressure. The valve can handle a maximum pressure of 600 PSI CWP and 150 PSI SWP, making it suitable for commercial use.

• Constructed from C37700 chrome-plated brass ball and DZR bronze body
• Features a blowout-proof stem for enhanced safety
• Compatible with vacuum service up to twenty-nine inches of mercury

Product Highlights

This ball valve ensures reliable performance in non-potable water systems. The lever handle design allows for easy operation, while the adjustable stem packing offers enhanced leak resistance.

Product Information

Standard Information

• Type: 2-Piece, Domestic
• End Connection: Soldered x Soldered

Technical Specifications

• Nominal Size: 1-1/2 Inch
• Ball Material: ASTM B16/B283 C37700 Chrome Plated Brass
• Body Material: ASTM B584 Dezincification Resistant Bronze
• Handle Material: Zinc Plated Steel Lever, Vinyl Grip
• Pressure Rating: 600 PSI CWP, 150 PSI SWP
• Temperature Rating: 450 Deg F
• Flow Rate: 177 Cv
• Applicable Standards: CUPC, CSA B51, IAPMO/ANSI Z1157
