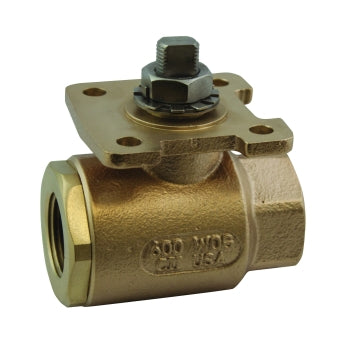

Apollo Valves 77AR564 77-AR Series 1 in. Bronze Full Port FNPT 600# Ball Valve

Product Description

The Apollo Valves 77AR564 is a 1-inch bronze full port FNPT ball valve designed for high performance. This valve is ideal for various applications including plumbing, HVAC, and industrial systems. The robust construction and advanced features ensure reliable service under harsh conditions.

• Compatible with cold water up to 600 psi and steam up to 250 psi
• Manually operated with inline threaded connections
• Features a blowout-proof stem design for added safety

Product Highlights

This product features a multi-piece packing set and an ISO 5211 mounting pad for easy installation of actuators and accessories.

Product Information

Standard Information

• Body Material: Bronze
• Ball Material: 316 Stainless Steel

Technical Specifications

• Port Size: 1 NPT
• Maximum Operating Pressure: 600 psi
• Flow Direction: 2-Way
• Overall Length: 3.62 inches
• Seat Material: MPTFE
• O-Ring Material: PTFE
• Stem Seal Material: MPTFE
• Standards: MSS SP-110 Compliant
