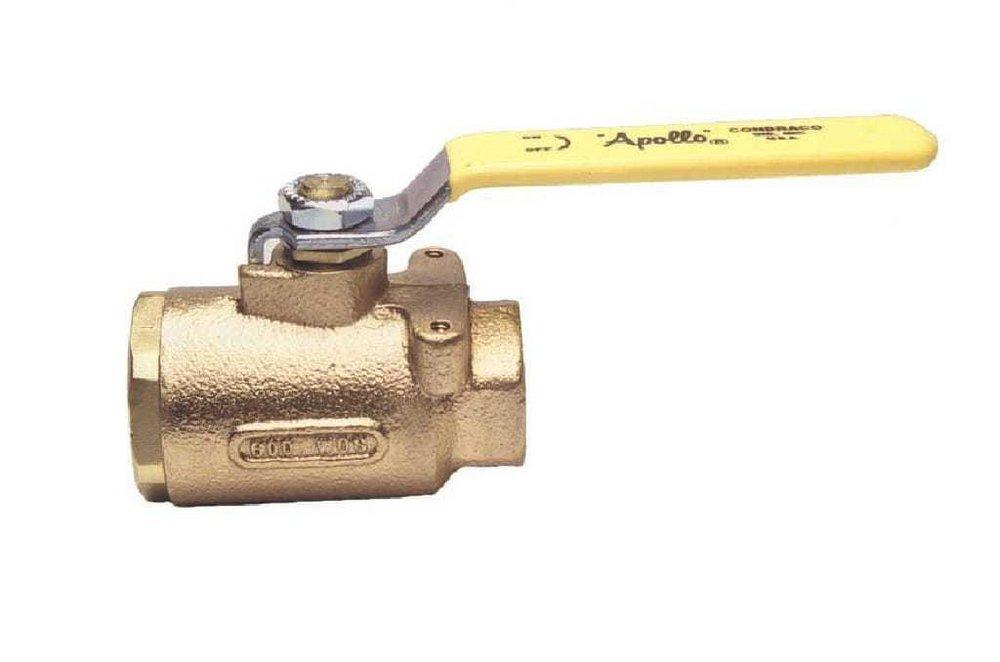

Apollo Valves 7710901 77-100 Series 2-1/2 in. Bronze FNPT 600# Ball Valve A7710901

Product Description

The Apollo Valves 7710901 77-100 Series features a two and a half inch bronze ball valve designed for reliable performance in commercial and industrial applications. This valve offers a full port for maximum flow and minimum pressure drop. The bronze construction ensures longevity and resistance to corrosion. The valve is factory tested for quality assurance.

• Full port design for reduced pressure drop
• Durable RPTFE seats
• Adjustable packing gland for easy maintenance

Product Highlights

The Apollo Valves 7710901 ball valve is suitable for water service and steam applications, capable of withstanding pressures up to six hundred psi. It features a blowout-proof stem design for added safety and reliability.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 7710901

Technical Specifications

• Port Size: 2-1/2 NPT
• Body Material: Bronze
• Ball Material: Chrome Plated Brass
• Maximum Operating Pressure: 600 psi
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Overall Length: 6.50 inches
• Overall Width: 3.37 inches
• Stem Material: B16 Brass
• Seat Material: RPTFE
• Handle Style: Lever Handle
• Control Type: Manually Operated
