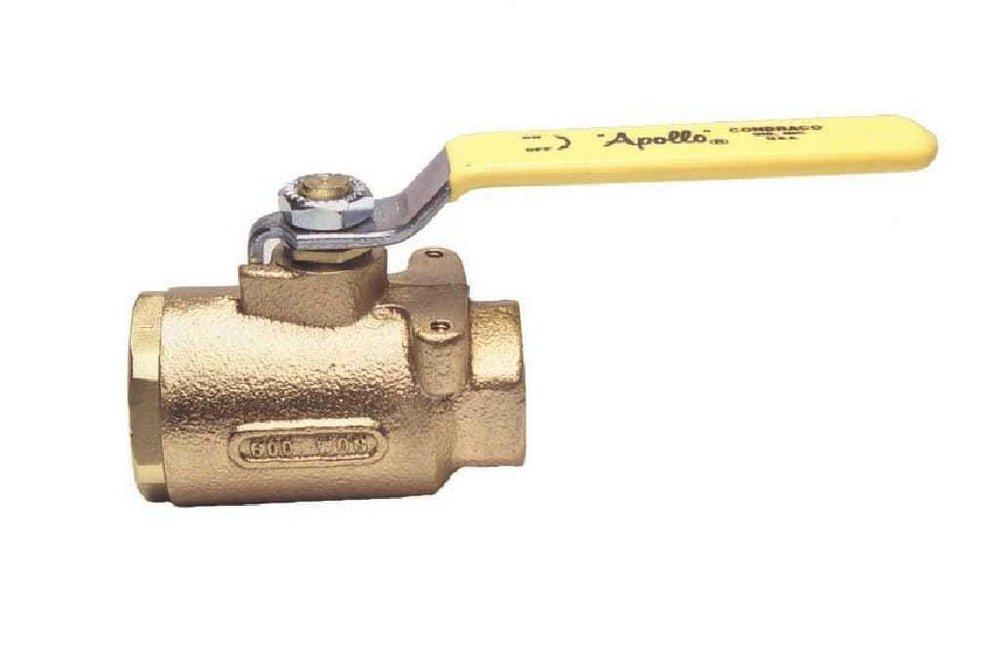

Apollo Valves 7710801 77-100 Series 2 in Bronze Full Port FNPT 600# Ball Valve

Product Description

The Apollo Valves 7710801 is a two-inch bronze full port ball valve designed for reliable flow control. This model features a female NPT connection and a pressure rating of six hundred psi for both non-shock and steam applications.

• Constructed with RPTFE seats and stuffing box ring
• Features a blowout-proof stem design
• Includes adjustable packing gland for maintenance

Product Highlights

The valve includes a mounting pad for easy actuator installation, making it suitable for commercial and industrial applications. It is made in the USA and factory tested for quality assurance.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 7710801

Technical Specifications

• Ball Material: Chrome-Plated Brass
• Connection Size: 2 in
• Connection Type: NPT
• Dimension: 5.37 in L
• Flow Coefficient: 389 Cv
• Item Name: Ball Valve with Mounting Pad
• Material Specifications: ASTM B16, ASTM B283, C37700, ASTM B584, C84400
• Material: Bronze
• Model: 77-100
• Operator Type: Zinc-Plated Steel with Vinyl Grip Lever Handle
• Pressure Rating: 600 psi CWP, 150 psi WSP
• Seal Material: PTFE
• Seat Material: RPTFE
• Series: 77
• Stem Material: Brass
• Temperature Rating: 500 deg F
• Type: 2-Piece, Full-Port
