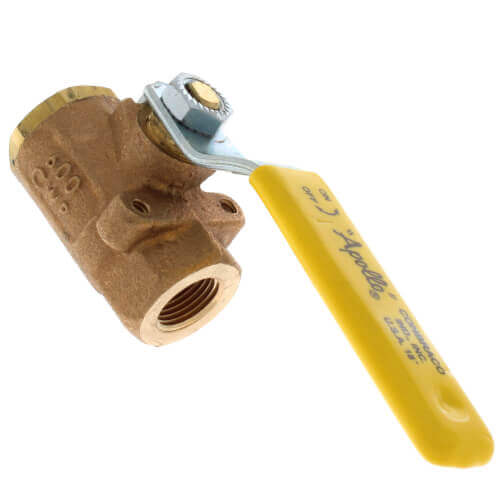

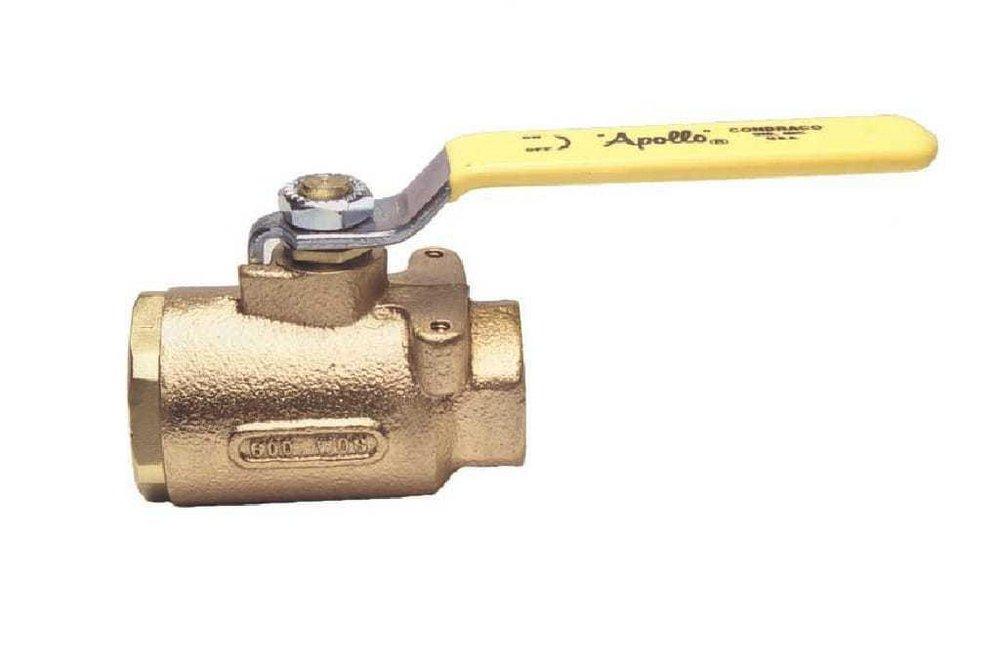

Apollo Valves 7710701 77-100 Series 1-1/2 in. Bronze Full Port FNPT 600# Ball Valve

Product Description

The product is the Apollo Valves 7710701, a 77-100 Series ball valve designed for reliable performance in plumbing applications. This valve has a full port for optimal flow and is constructed from bronze, offering durability and resistance to wear. It is suitable for cold water and steam applications with a pressure rating of six hundred psi.

• Blow-out proof stem design
• Adjustable packing gland for maintenance
• Mounting pad for actuator installation

Product Highlights

This valve is designed for easy actuator or panel mounting and features RPTFE seats and a stuffing box ring.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 7710701

Technical Specifications

• Port Size: 1-1/2 inches NPT
• Body Material: Bronze
• Ball Material: Chrome Plated Brass
• Stem Material: B16 Brass
• Maximum Operating Pressure: 600 psi
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Flow Direction: 2-Way
• Overall Length: 4.75 inches
• Overall Width: 3.06 inches
• Handle Style: Lever Handle
