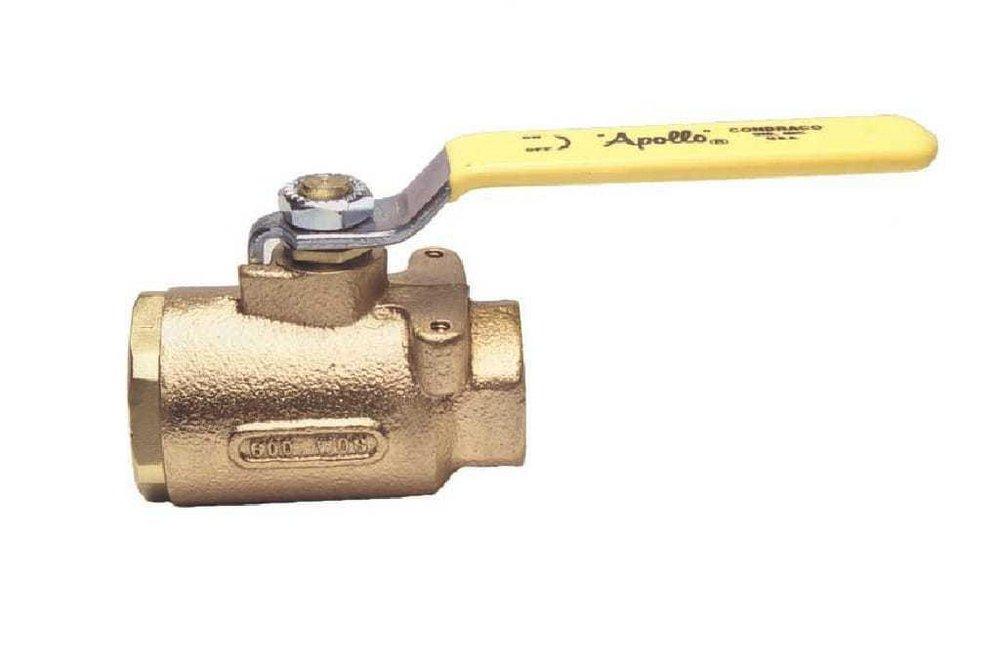

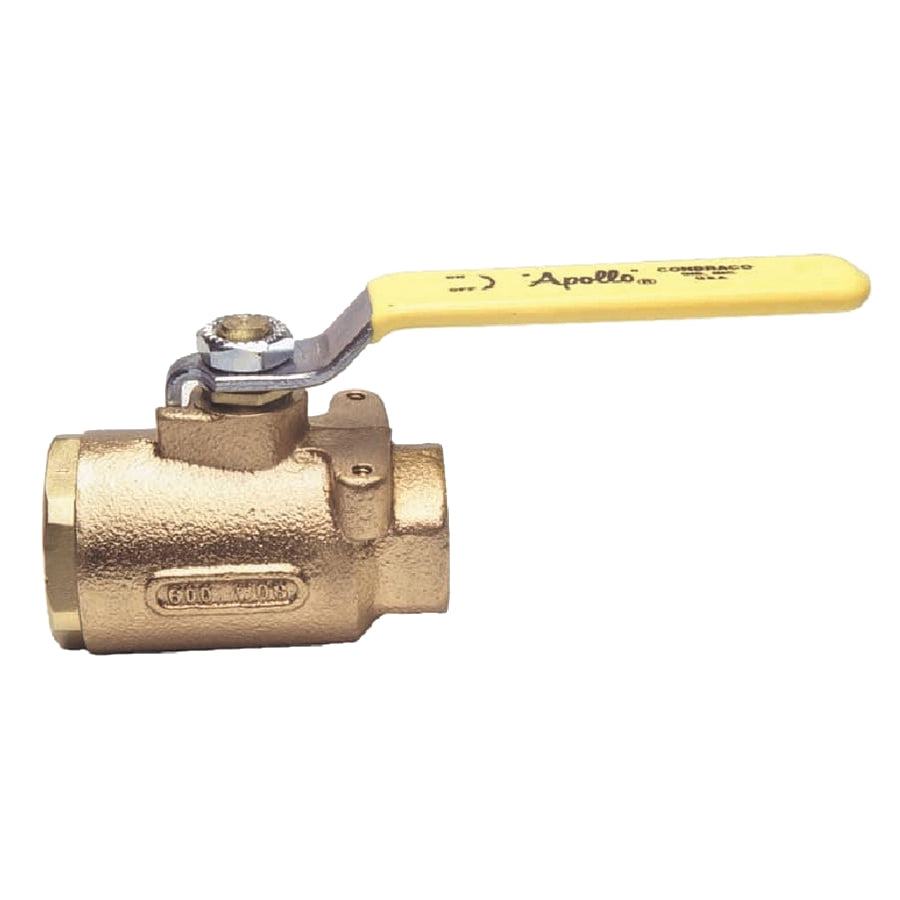

Apollo Valves 7710301 77-100 Series 1/2 in. Bronze Full Port FNPT 600# Ball Valve

Product Description

The Apollo Valves 7710301 is a reliable 77-100 Series ball valve designed for durable performance in various plumbing applications. This half-inch valve features a full port design, ensuring maximum flow with minimum pressure drop. The valve is built from bronze and has a threaded connection for easy installation.

• Full port design for optimal flow
• Threaded FNPT connections
• Compatible with cold water up to 600 psi and steam up to 150 psi

Product Highlights

The Apollo ball valve is suitable for commercial and industrial applications. It provides an effective solution for controlling fluid flow in pipelines.

Product Information

Standard Information

• Brand: Apollo Valves
• Part Number: 7710301

Technical Specifications

• Body Material: Bronze
• Connection Size: 1/2 in
• Connection Type: FNPT
• Pressure Rating: 600 psi CWP, 150 psi WSP
• Temperature Rating: 500 deg F
• Ball Material: Chrome-Plated Brass
• Seat Material: RPTFE
• Overall Length: 2.18 in
• Overall Width: 1.12 in
• Flow Coefficient: 15 Cv
