Product Description

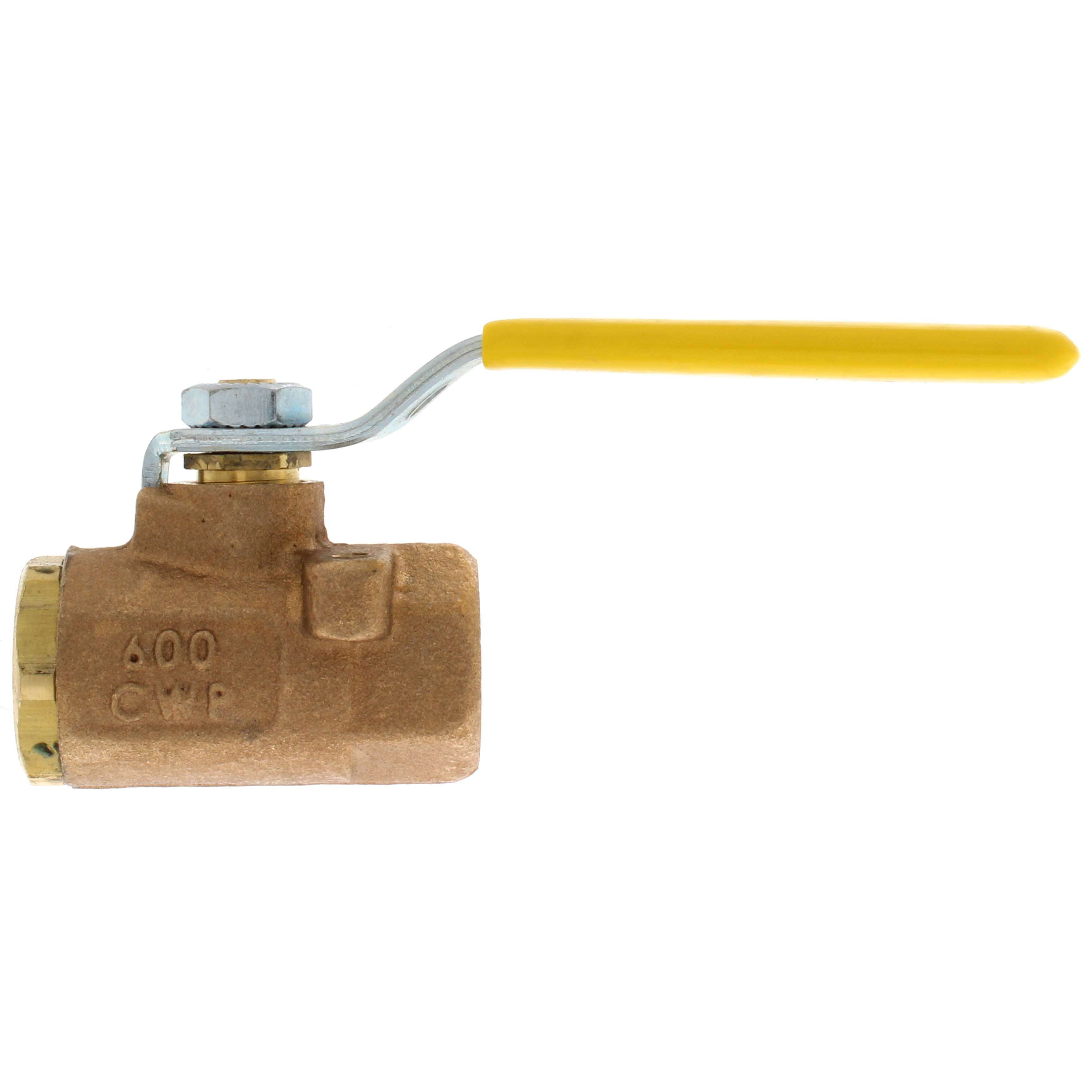

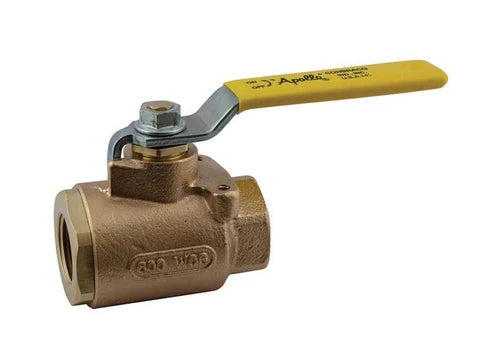

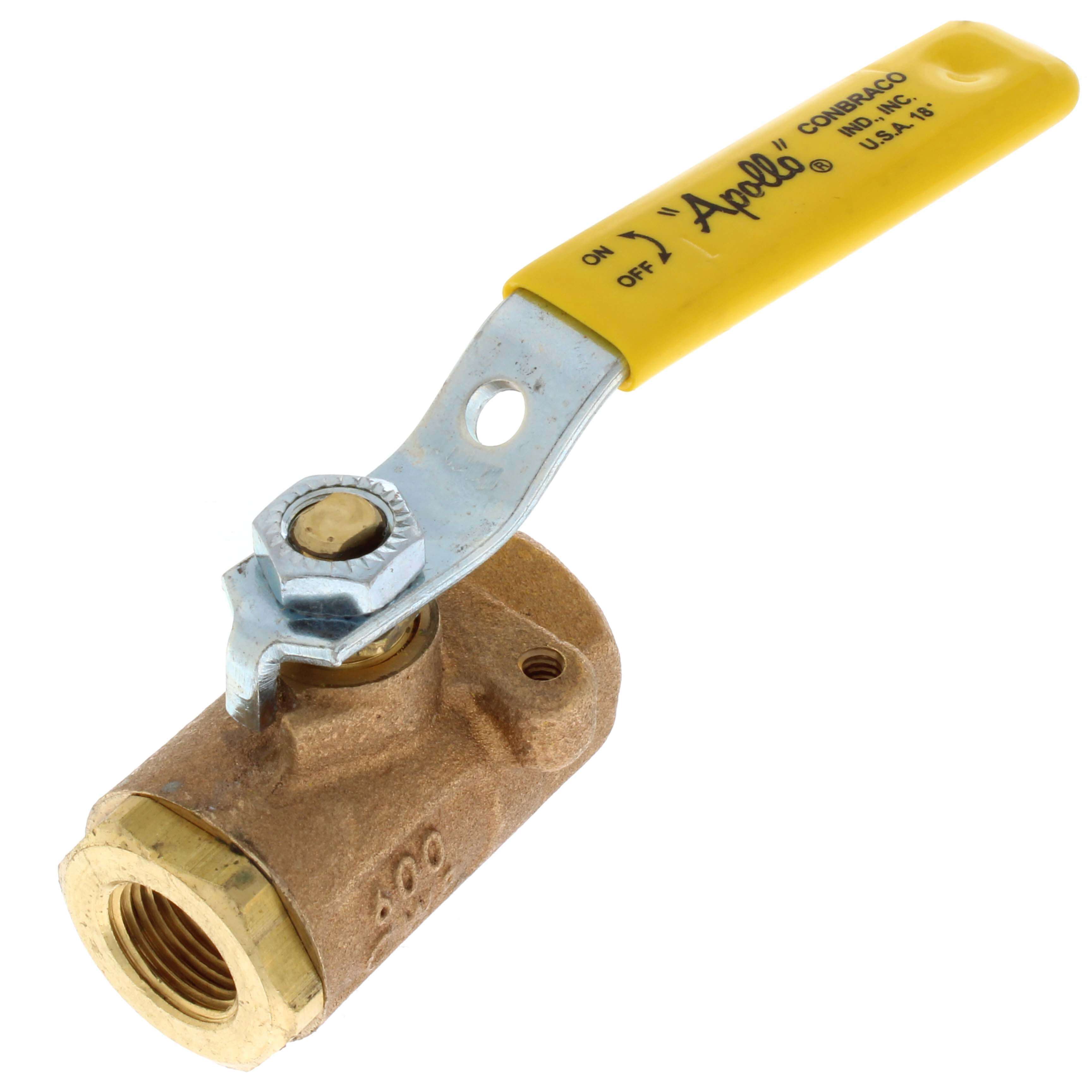

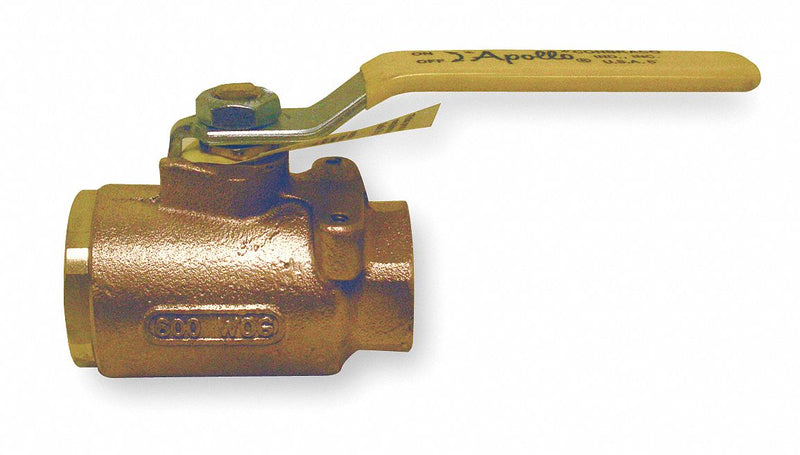

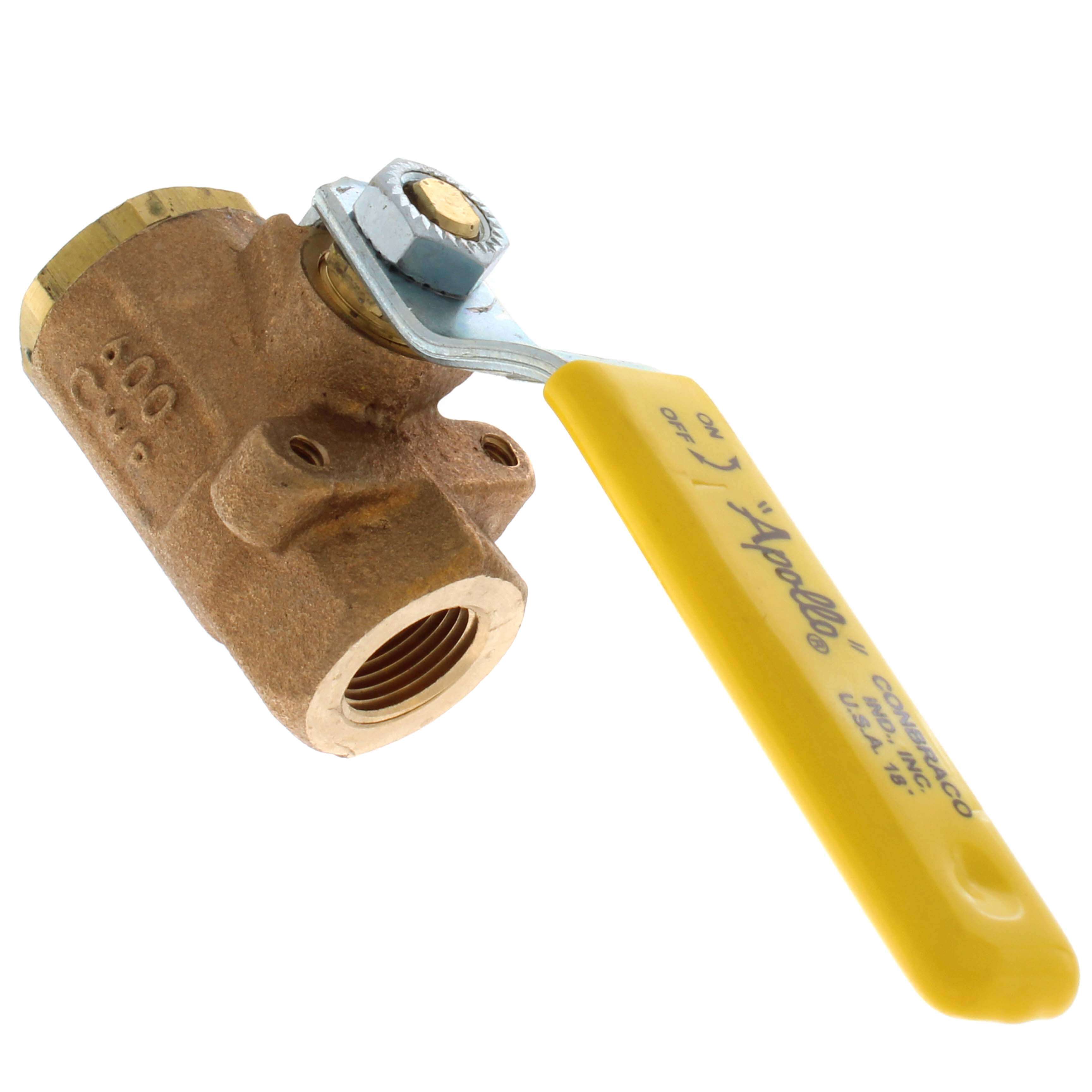

The APOLLO VALVES 7710201 is designed for easy actuator mounting or panel mounting where highest Cv values are desired. Features include RPTFE seats and stuffing box ring. This full port, two-piece, bronze, ball valve has a mounting pad and adjustable packing with a blowout-proof stem design.
- Mounting pad
- ASTM B584 Bronze
- Blowout-proof stem design
Product Highlights
The APOLLO VALVES 7710201 is a bronze ball valve with a full port and is made in the USA.
Product Information
Standard Information
-
Brand: APOLLO VALVES
-
Manufacturer Part Number: 7710201
-
Country of Origin: United States
Technical Specifications
-
Size: 3/8"
-
Material: Bronze
-
Lead Free: No
-
Port Type: Full Port
-
Application: Plumbing
-
Handle Style: Lever
-
Connection Type: FNPT x FNPT
-
Connection Method: Threaded
-
Max Pressure (PSI): 600
-
Valve Construction: 2 piece
-
Manufacturer: Aalberts integrated piping systems Americas, Inc. (Apollo)
-
Item Group: 7710X01 7710X01 - Apollo Full Port 2 Piece Bronze Ball Valves w/ Mounting Pad, Standard Configuration (2 x FNPT)
-
Materials: bronze (ASTM B584-C84400)
-
Finishing: none
-
Shape: straight
-
Max Operating Pressure Liquid: 600 psi
-
Min. Medium Temperature: -20 °F
-
Max Medium Temperature: 500 °F
-
Peak Medium Temperature: 500 °F
-
Product Group: valves ()
-
ETIM Class: EC011343 Ball valve
-
Housing Material: Bronze
-
Surface Protection Housing: None
-
Material Ball: Brass
-
Material Spindle: Brass
-
Material Primary Spindle Seal: Polytetrafluoroethylene (PTFE)
-
Nominal Diameter Connection 1: DN 10
-
Outer Pipe Diameter Connection 1: 17.15mm
-
Outer Pipe Diameter Connection 1 (Imperial): 0.68"
-
Connection 1: Internal thread conical (NPT)
-
Nominal Diameter Connection 2: DN 10
-
Outer Pipe Diameter Connection 2: 17.15mm
-
Outer Pipe Diameter Connection 2 (Imperial): 0.68"
-
Connection 2: Internal thread conical (NPT)
-
With Non-Return Valve: No
-
With Filter: No
-
With Thermometer: No
-
FM Quality Mark: No
-
UL Quality Mark: No
-
ULC Quality Mark: No
-
LPCB Quality Mark: No
-
Medically Clean: No
-
Grease-Free: No
-
Housing Construction: 2-part
-
Full Bore: Yes
-
VdS Quality Mark: No
-
DVGW Quality Mark For Gas: No
-
DVGW Quality Mark For Water: No
-
KIWA Certified: No
-
Country of Origin: US
-
Type: Pipes, Valves & Fittings > Valves > Ball Valves
-
Weight: 0.7000
-
Length: 5.500
-
Width: 2.500
-
Depth: 2.500
-
Voltage: N/A
-
Features: Manual Two-Way Ball Valve, Body Material Bronze, For Media Steam
-
Power Source: N/A
-
Number of Batteries: N/A
-
Battery Size: N/A
-
Battery Included: No
-
Motor Type: N/A
-
Battery Capacity: N/A
-
Battery Life: N/A
-
Cable Length: N/A
-
Restricted Sale Item Code: A9
-
Actuator Type: Lever Operated
-
Ball Material: Chrome Plated Brass
-
Domestic/Import: Domestic
-
End Style: FNPT
-
Inlet to Outlet Length: 2-1/4 in
-
Nominal Size: 3/8 In
-
Port: Full
-
Pressure Rating: 600 psig CWP
-
Series: 77-100
-
Softgoods Material: RPTFE
-
Temperature Rating: 500 deg F
-
Top to Inlet Center: 1.81 in
-
Trim Material: Brass Stem and RPTFE Seat
-
Valve Structure: 2-Piece
-
Pipe Size: 3/8 in
-
Max. Pressure: 600 psi CWP
-
Max. Steam Pressure: 150 psi WSP
-
Temp. Range: Up to 500 Degrees F
-
Stem Type: Blowout Proof
-
Handle Type: Lever
-
Handle Material: Zinc Plated Steel with Vinyl Grip
-
Stem Material: Brass
-
Body Seal Material: PTFE
-
Ball Valve Product Group: Manual
-
Valve Basic Body Material: Bronze
-
Standards: MSS SP-110
-
Overall Length: 4.96 in
-
Handle Material 2: Steel
-
Stem: Blowout Proof
