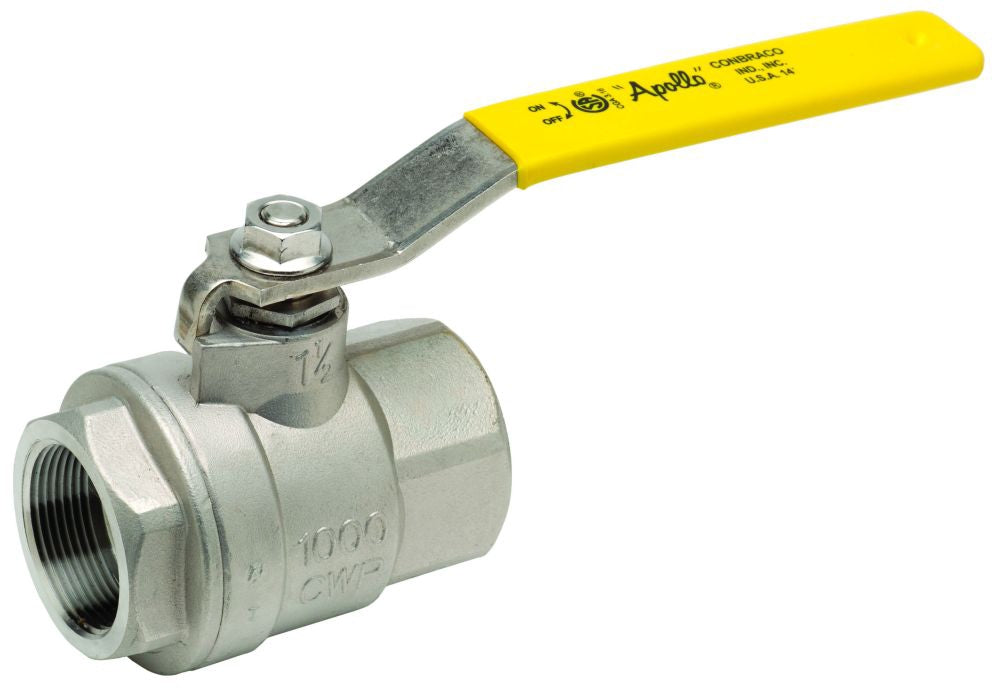

Apollo Valves 76F-104-27A 3/4 x 3/4 FPT x FPT 150 PSI SWP 1000 PSI CWP Lead-Free

Product Description

The Apollo Valves 76F-104-27A is a two-piece ball valve designed for a variety of plumbing applications. This valve features female threaded connections, providing a reliable solution for both commercial and industrial uses.

• Nominal size of three-quarters inch by three-quarters inch
• Full port design for maximum flow
• Lead-free construction for safety and compliance

Product Highlights

This valve includes features such as a stainless steel latch-lock lever and nut, which enhance its functionality and durability.

Product Information

Standard Information

• Manufacturer: Apollo Valves
• UPC: 670750614699

Technical Specifications

• MPN: 76F-104-27A
• Actuation Type: Lever Handle
• Ball Material: ASTM A276 316 Stainless Steel
• Body Material: ASTM A351 CF8M Stainless Steel
• Stem Material: ASTM A276 316 Stainless Steel
• Seal Material: RPTFE (Body Seal), MPTFE (Stem Packing)
• Temperature Rating: -50 to 600 Deg F
• Pressure Rating: 150 PSI SWP, 1000 PSI CWP (Non-Shock)
• End Connection: Female Threaded x Female Threaded
• End to End Distance: 2.77 Inch
• Port Type: Full
• Inclusions/Features: Blowoutproof Stem Design, Adjustable Packing Gland, Investment Cast Component, Reinforced Seat, Stainless Steel Latch-Lock Lever and Nut
• Applicable Standards: CSA, MSS-SP-110, NACE MR0175/MR0103, NSF/ANSI 61G, NSF 372
• Application: Commercial, Industrial, Vacuum Service
