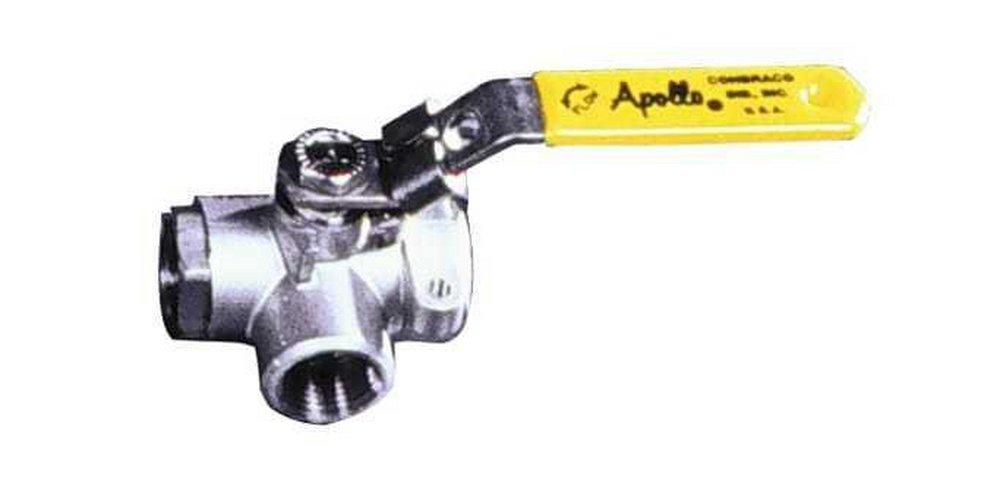

Apollo Valves 7660501A 76-600 Series 1 in. CF8M Stainless Steel Standard Port FNPT 800# Ball Valve

Product Description

The Apollo Valves 7660501A is a robust valve designed for various applications. This ball valve features a standard port and is constructed from CF8M stainless steel, ensuring durability and resistance to corrosion. It is suitable for cold water applications with a maximum media pressure rating of eight hundred psi.

• Meets NACE MR0175 (2000) & MR0103 (2012)
• Blow-out proof stem design
• Investment cast body

Product Highlights

This valve excels in providing reliable performance with its adjustable packing gland and reinforced seats. It is compliant with NSF/ANSI/CAN 61, ensuring safety and suitability for potable water use.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 7660501A

Technical Specifications

• Connection: Threaded
• Valve Size: 1 NPT
• Ball Material: 316 Stainless Steel
• Stem Material: 316 Stainless Steel
• Seat Material: RPTFE
• Handle Style: Lever
• Media Pressure Rating: Cold Water - 800 psi
• Flow Coefficient (Cv): 14 Cv
• Valve Body Material: ASTM A351-CF8M Stainless Steel
