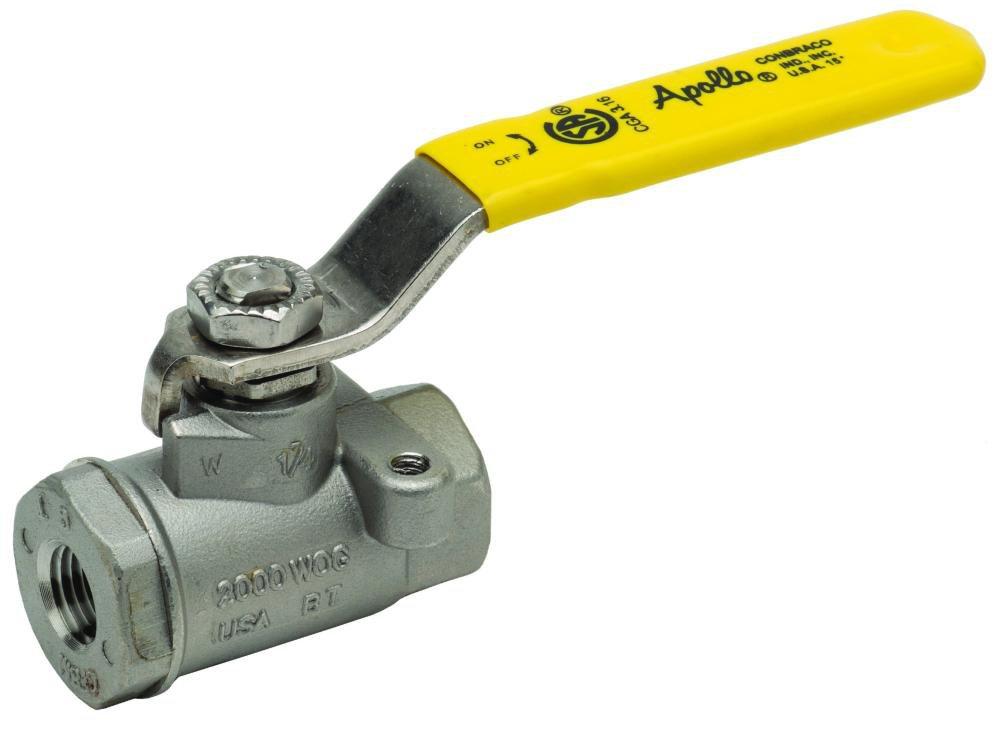

Apollo Valves 7610527A 76-100 Series 3/4 in. CF8M Stainless Steel Standard Port Lever Lock FNPT 2000# Ball Valve

Product Description

The Apollo Valves 7610527A is a 76-100 Series ball valve designed for reliable performance in plumbing applications. This valve features a three-quarter inch size and is made from CF8M stainless steel, ensuring durability and resistance to corrosion. It is engineered for fluid control with a lever lock design, making operation straightforward.

• Lead-free construction for safety.
• Reinforced seats for longevity.
• Blow-out-proof stem for added safety.

Product Highlights

This ball valve is suitable for commercial and industrial applications. It is compliant with MSS SP-110 standards and has been tested for pressure ratings up to 2000 pounds per square inch. The materials used ensure reliable operation and easy installation.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 7610527A

Technical Specifications

• Connection Type: FNPT
• Port Size: 3/4 in.
• Body Material: CF8M Stainless Steel
• Pressure Rating: 2000 psig
• Flow Coefficient: 43 Cv
• Seat Material: RPTFE
• Stem Material: 316 Stainless Steel
• Overall Length: 3.34 in.
