Apollo Valves 7610127A 76-100 Series 1/4 in. CF8M Stainless Steel Full Port Lever Lock FNPT 1500# Ball Valve

Product Description

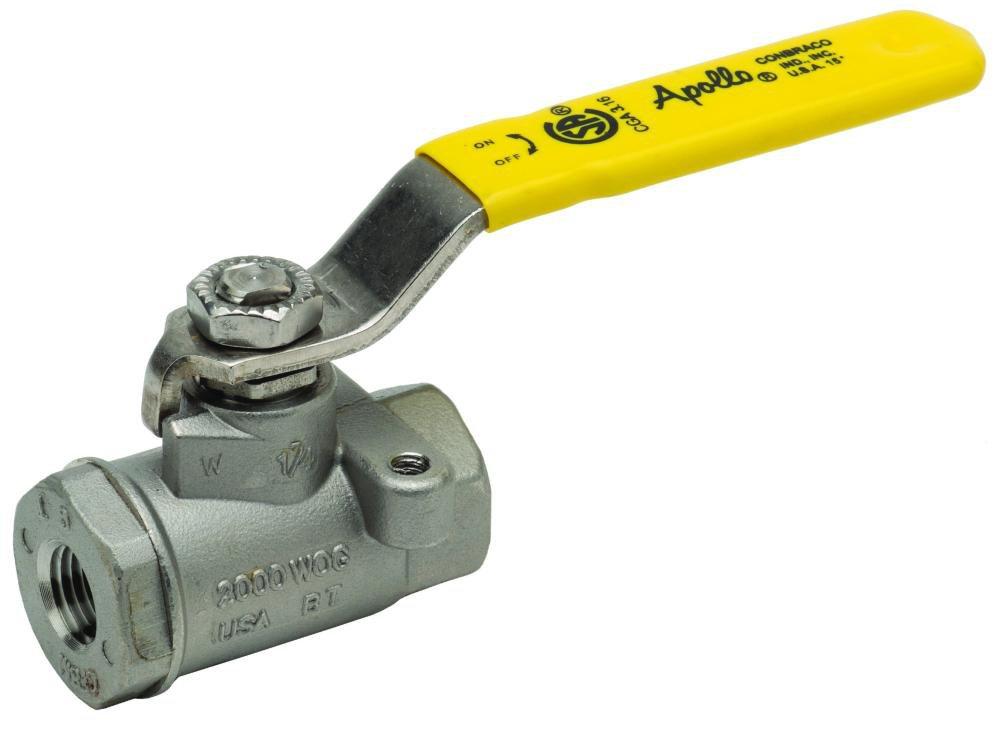

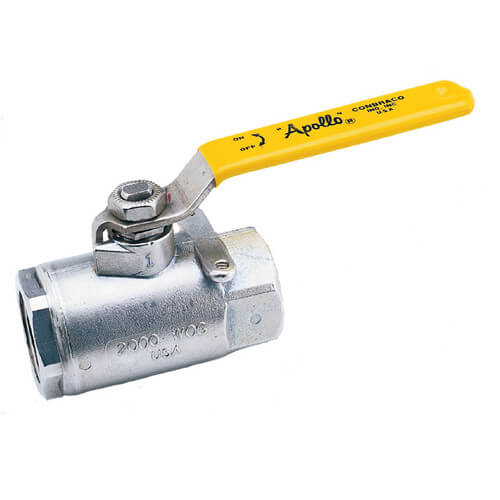

The Apollo Valves 7610127A is a reliable 1/4 inch CF8M stainless steel full port lever lock ball valve. It is engineered for robust applications in commercial and industrial settings. This ball valve features female NPT threads and has a pressure rating of 2000 psi cold water and 150 psi for saturated steam. The design includes reinforced seats and investment cast components, ensuring long-term durability and performance.

• Lead-free and compliant with NSF/ANSI standards
• Blow-out-proof stem design for enhanced safety
• Equipped with a convenient mounting pad for easy actuator installation

Product Highlights

This ball valve offers a locking handle and adjustable packing gland. It meets various industry standards, making it suitable for plumbing applications. The valve's construction provides effective sealing and pressure management.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 7610127A

Technical Specifications

• Connection Size: 1/4 inch
• Connection Type: FNPT
• Maximum Operating Pressure: 2000 psi
• Body Material: A351-CF8M stainless steel
• Ball Material: A276-316 stainless steel
• Seat Material: RPTFE
• Stem Seal Material: MPTFE
• Flow Direction: 2-Way
