Apollo 7610101A Stainless Steel Ball Valve 1/4 NPT Female

Product Description

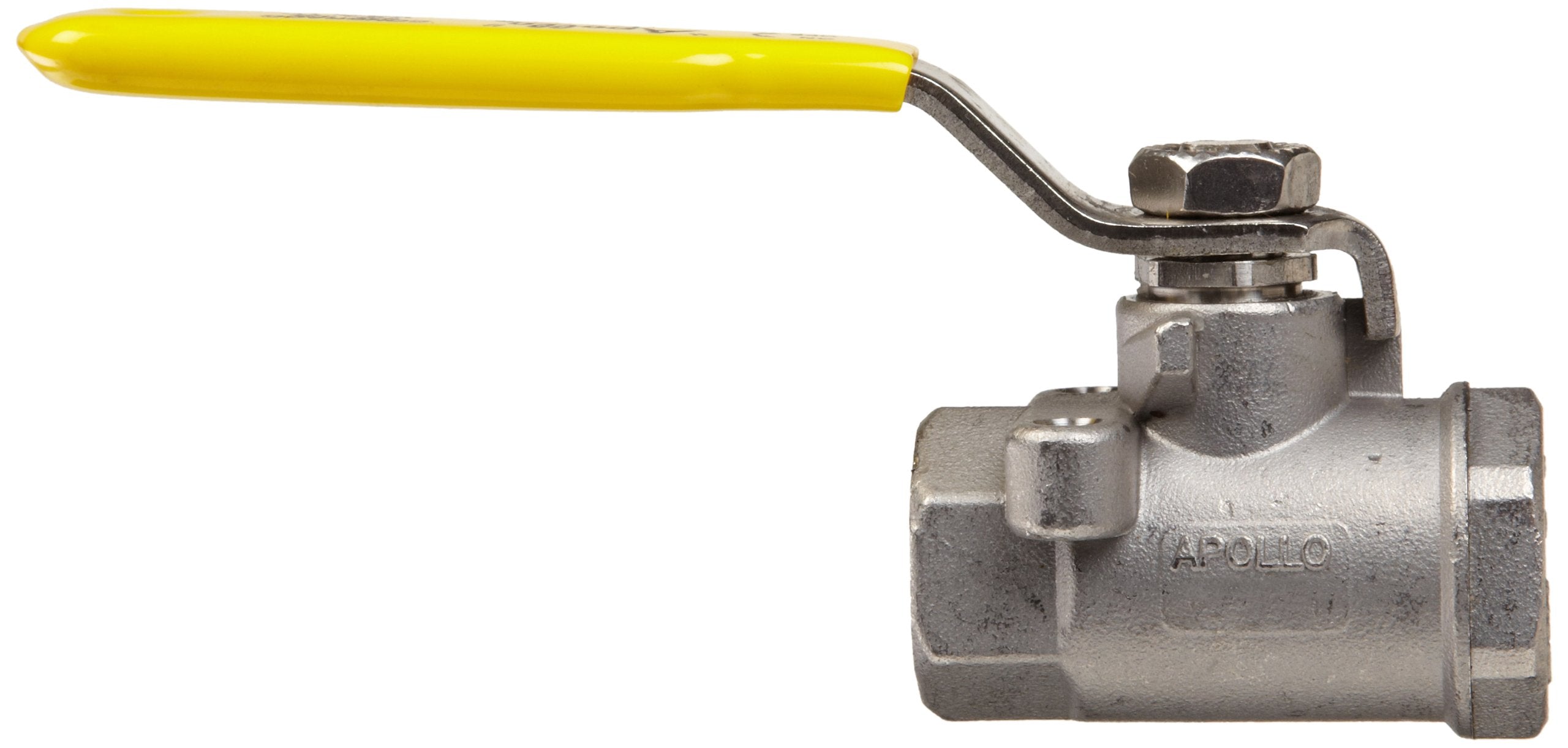

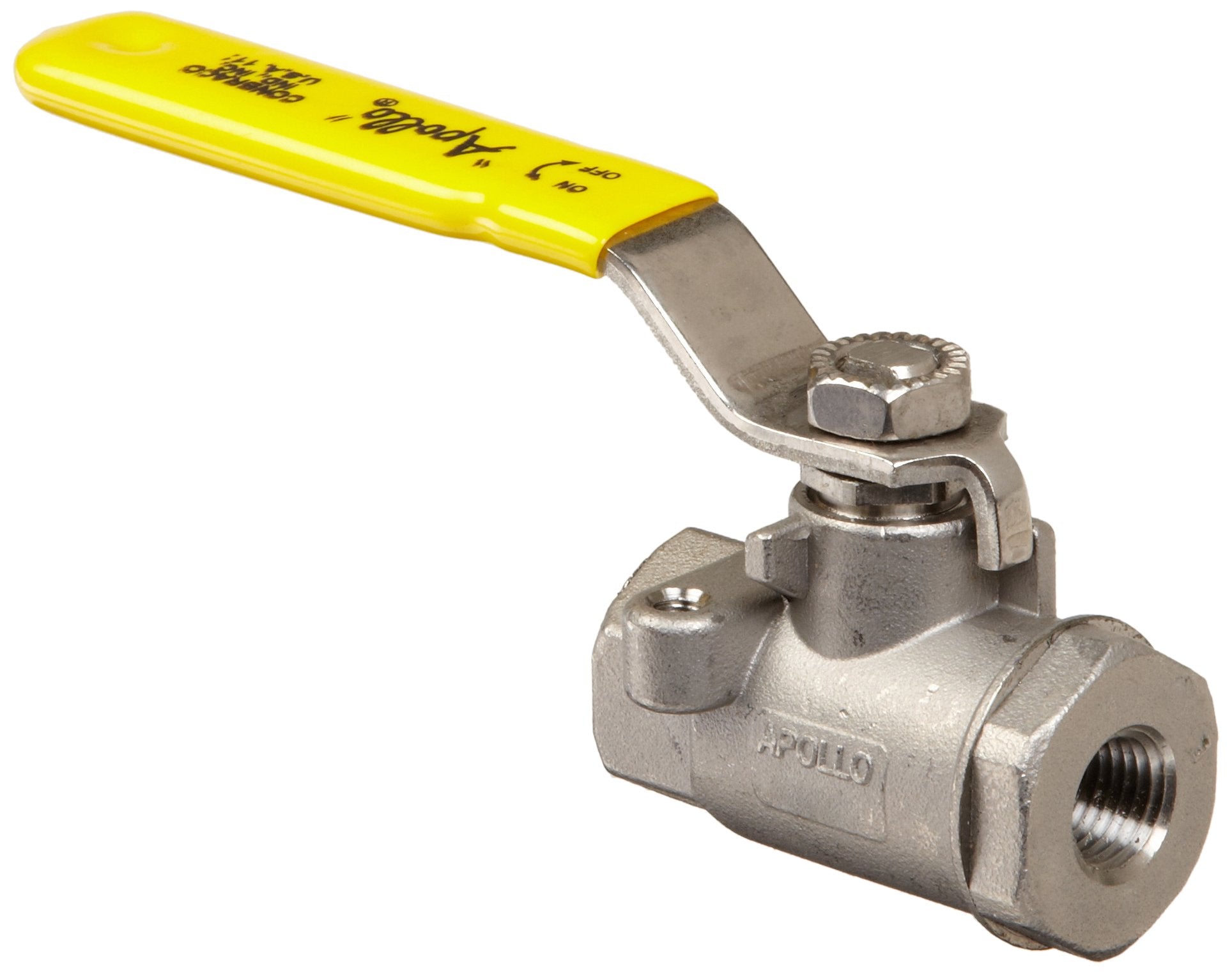

The Apollo 76-100 Series stainless steel ball valve with MPN 7610101A features a two-piece design for inline connections. It is made from stainless steel, ensuring resistance to corrosion. The valve has a lever handle and female National Pipe Taper connections on both ends. It operates effectively with water, oil, and gas at a maximum working pressure of 2,000 pounds per square inch.

• Stainless steel construction for durability
• Female NPT threads for secure connections
• PTFE reinforced seats for reduced leakage risk

Product Highlights

This valve is suitable for various applications, including water lines and agricultural use. Its design allows for easy manual operation and tight sealing.

Product Information

Standard Information

• Manufacturer: Conbraco Industries
• Model: 76-100 Series

Technical Specifications

• Ball Material: 316 Stainless Steel
• Connection Size: 1/4 inch
• Connection Type: FNPT
• Pressure Rating: 2000 psig CWP Non-Shock
• Seal Material: PTFE
• Seat Material: RPTFE
• Stem Material: 316 Stainless Steel
• Flow Co-efficient: 8.4 Cv
• Dimension: 2.05 inches long
• Type: 2-Piece, Standard Port
