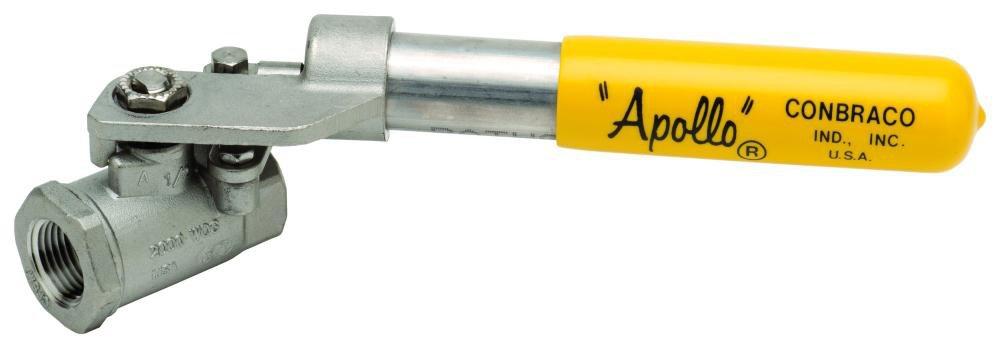

Apollo Valves 76-504-01A 76-500 Series 3/4 in. CF8M Stainless Steel FNPT 2000# Sping Ball Valve

Product Description

The Apollo Valves 76-504-01A is a 76-500 series ball valve designed for reliability in various applications. This valve features a three-quarter inch Female NPT connection and a spring return handle, which ensures the valve closes automatically. It is suitable for both industrial and plumbing use, especially where stainless steel components are preferred for longevity.

• Spring return to close function
• Carbon and graphite reinforced seat material (MPTFE)
• Operating torque approximately three times standard valve torque

Product Highlights

This valve is made from 316 stainless steel, providing durability and resistance to corrosion. It meets industry standards including MSS SP-110 and NACE MR0175 (2000). It is suitable for use in environments that require vacuum service down to twenty-nine inches of mercury.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 76-504-01A

Technical Specifications

• Port Size: 3/4 NPT
• Body Style: Inline
• Control Type: Manual
• Actuator Type: Level Handle Spring Return
• Ball Material: 316 Stainless Steel
• Body Material: 316 Stainless Steel
• Seat Material: MPTFE
• Pressure Rating: 2000 psig CWP Non-Shock
