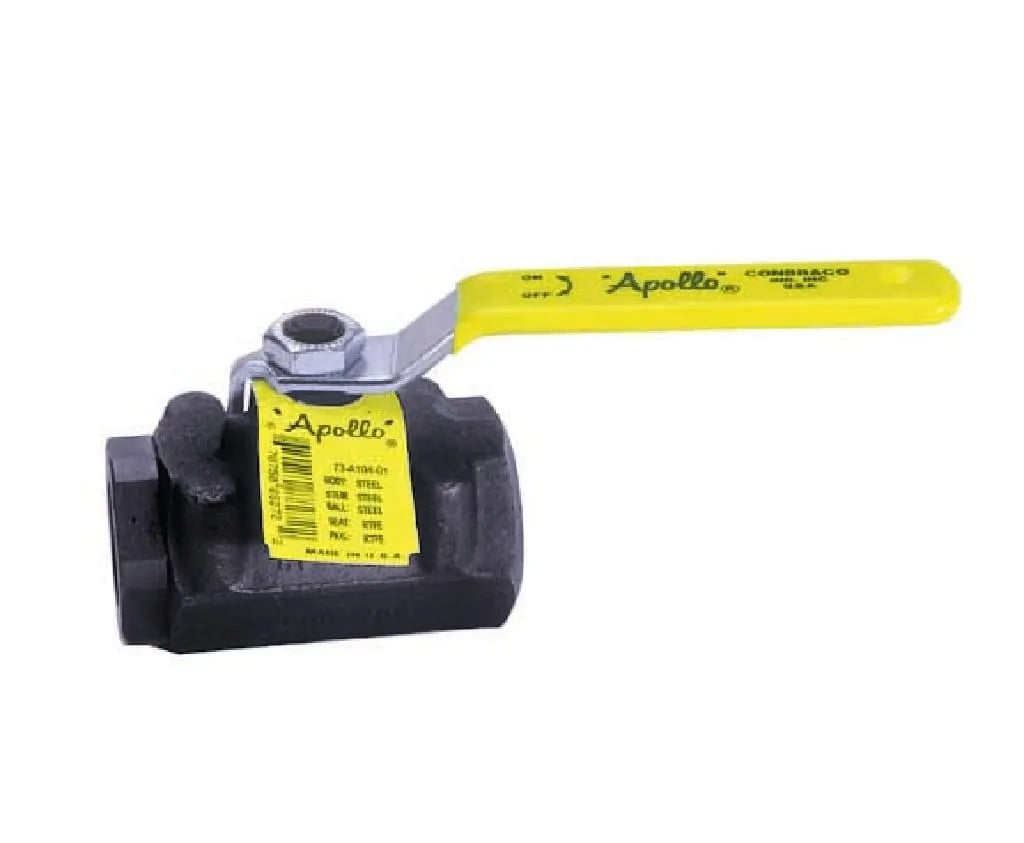

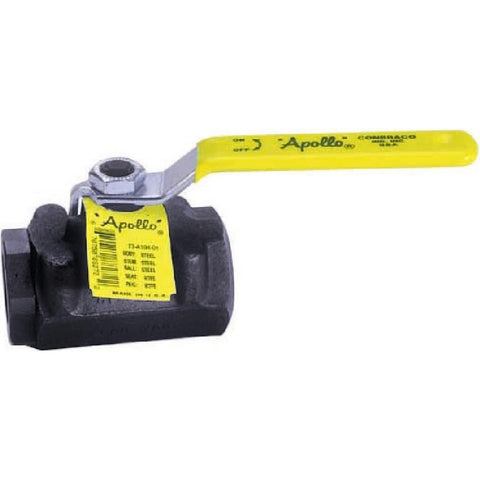

Apollo Valves 73A1462764 1-1/4 inches Threaded 2 Piece Carbon Steel Ball Valve SS Latch-Lock Lever, 250#

Product Description

The APOLLO VALVES 73A1462764 is a threaded carbon steel ball valve with a standard port. It features a 2-piece valve construction, a locking lever handle style, and FNPT x FNPT connection. The valve is designed with forged construction and raised handle stops for added durability and ease of use.

• FNPT x FNPT Connection
• Carbon Steel body material
• Locking Lever handle

Product Highlights

This carbon steel ball valve features a standard port, forged construction, and a locking lever handle, making it suitable for various applications.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 73A1462764
• Country of Origin: United States

Technical Specifications

• Valve Construction: 2 piece
• Material: Carbon Steel
• Handle Style: Locking Lever
• Size: 1-1/4"
• Connection Method: Threaded
• Connection Type: FNPT x FNPT
• Port Type: Standard Port
• Materials: steel (ASTM A105-CS)
• Shape: straight
• Housing material: Steel
• Material ball: Stainless steel
• Material spindle: Stainless steel
• Nominal diameter connection 1: DN 32
• Outer pipe diameter connection 1: 42.16mm
• Connection 1: Internal thread conical (NPT)
• Nominal diameter connection 2: DN 32
• Outer pipe diameter connection 2: 42.16mm
• Connection 2: Internal thread conical (NPT)
• Medium temperature (continuous): -28.89°C - 260°C
• Medium temperature (continuous) (imperial): -20.002°F - 500°F
• Operation: Lever handle
• Housing construction: 2-part
• Actuator Type: Latch-Lock Lever
• Ball Material: 316 Stainless Steel
• Body Material: Forged Carbon Steel
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 3.97 in
• Nominal Size: 1-1/4 in
• Pressure Rating: 1500 psi CWP
• Series: 73A-140
• Softgoods Material: MPTFE/RPTFE
• Top to Inlet Center: 2.72 in
• Trim Material: 316 Stainless Steel/MPTFE
• Type: 2-Piece
• Bore Type: Reduced Bore
• Max. Medium Temp.: 500°F
• Max. Operating Pressure: 1500 psi
• Medium Temp. (continuous): -20.002°F to +500°F
• Min. Medium Temp.: -20°F
• Outer Pipe Dia. Connection 1: 1.66"
• Outer Pipe Dia. Connection 2: 1.66"
• Spindle Material: Stainless steel
• Surface Protection: None
• Valve Type: Ball
• Pipe Size: 1-1/4
• Valve Structure: 2-Piece
• Connection Style: NPT Female
• End Connection: FPT - Female Thread Conical (NPT) x FPT - Female Thread Conical (NPT)
• Handle Type: Lockable Lever
• Style: 2-Piece Standard Port Ball Valve
• Steam Pressure Rating (psi): 250
• Thread Size: 1-1/4
• Temperature Range: -20°F to 500°F
• Material Grade: ASTM A108
• Handle Material: Steel; Zinc
• Standards: CRN, Made in USA, Build America Buy America (BABA) Act, American Iron & Steel (AIS), Buy American Act (BAA)
• Maximum Working Temperature (F): 500
• Minimum Working Temperature (Deg F): -20
• Lead Free: No
• WOG Rating (psi): 1500
• Seat Material: Reinforced Polytetrafluroethylene
• For Use With: Replaces MSC# 11301686
• Number Of Pieces: 2
• Female Pipe Size: 1-1/4
• UNSPSC Code: 40141607
