Apollo Valves 73A10201A ball valve 3/8 inches pipe

Product Description

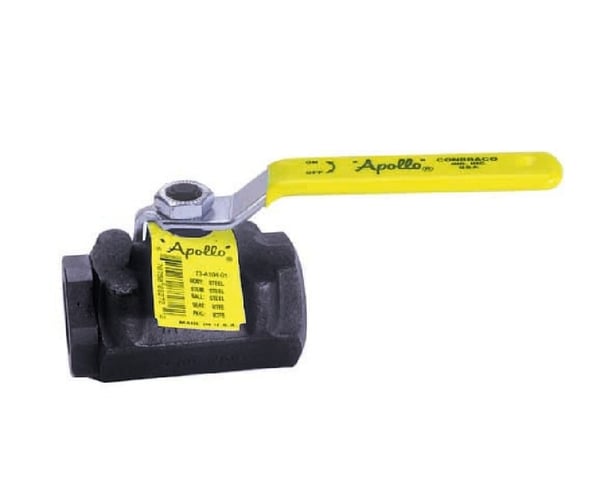

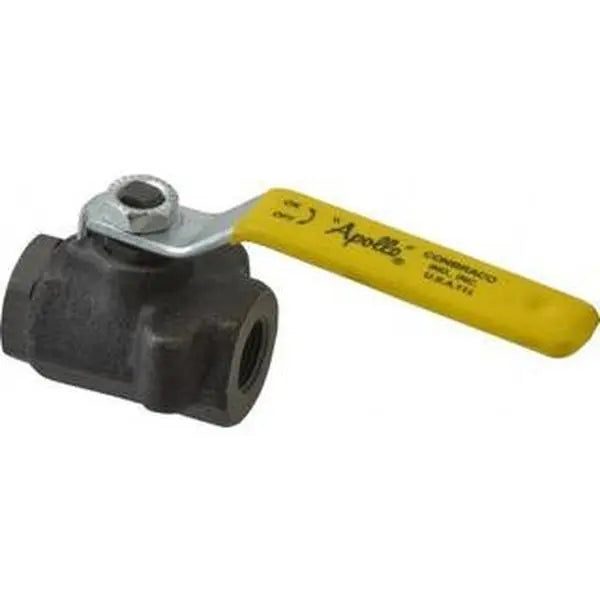

The Apollo Valves 73A10201A is a 2-piece ball valve with a 3/8" nominal pipe size and FNPT end style. Constructed with a forged carbon steel body and MPTFE softgoods, this standard port valve is suitable for gas and water media. It features a lever handle actuator and adjustable packing gland.

• Raised handle stops
• Blow-out proof stem design
• Zinc phosphate corrosion protection

Product Highlights

This Apollo Valves ball valve offers reliable performance with its robust construction and versatile design for various media applications.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750224805
• Country of Origin: United States

Technical Specifications

• Manufacturer Part #: 73A10201A
• S/N: 37011418
• UNSPSC: 40141607
• Actuator Type: Lever Handle
• Ball Material: Carbon Steel
• Body Material: Forged Carbon Steel
• End Style: FNPT
• Inlet to Outlet Length: 2.37 in
• Media: Gas/Water
• Nominal Size: 3/8 in
• Orifice Size: 0.37 in
• Port Type: Standard
• Pressure Rating: 2000 psi CWP
• Series: 73A-100
• Softgoods Material: MPTFE
• Top to Inlet Center: 1.72 in
• Trim Material: Carbon Steel/RPTFE
• Type: 2-Piece
• Includes: Adjustable Packing Gland
