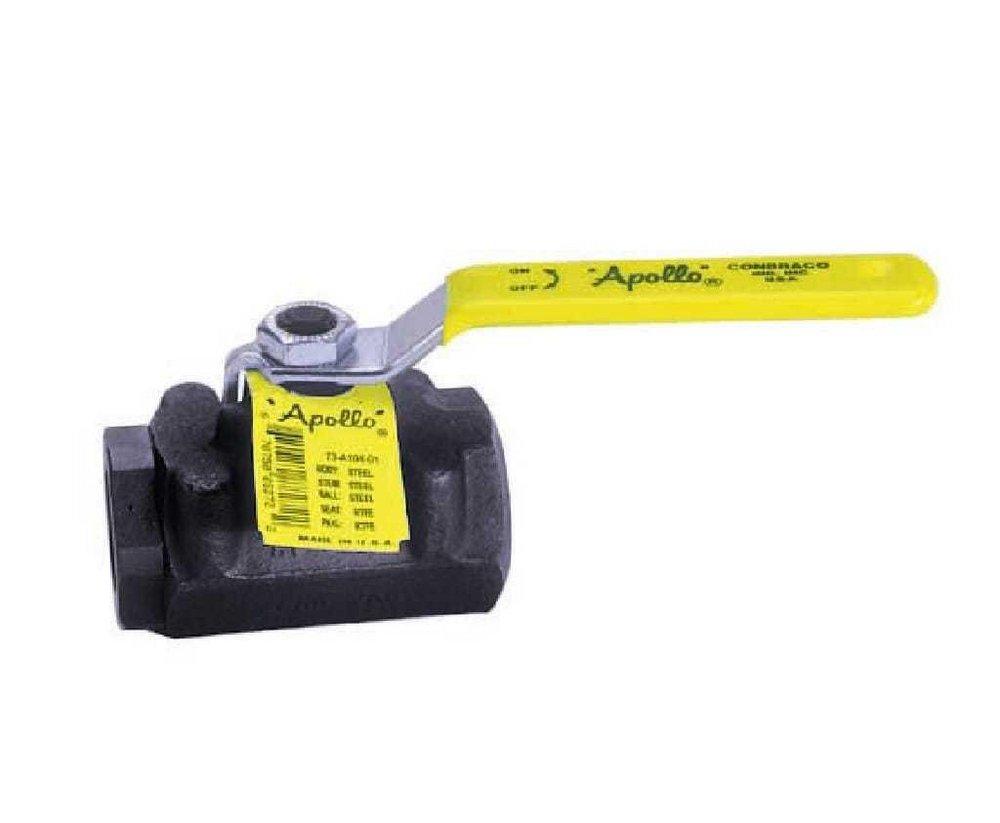

Apollo Valves 73A10101A 73A-100 Series 1/4 in. Carbon Steel Standard Port FNPT 2000# Ball Valve

Product Description

The Apollo Valves 73A10101A is a 1/4 inch ball valve made from forged carbon steel. This valve is designed for standard port applications with a threaded connection. It operates at a maximum pressure of 2000 psi, making it suitable for high-pressure systems.

• Standard port design
• Blow-out-proof stem for enhanced safety
• Forged construction for durability

Product Highlights

This ball valve features raised handle stops and adjustable packing for optimal performance. It also includes zinc phosphate corrosion protection for increased longevity in various applications.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 73A10101A

Technical Specifications

• Weight: 0.58 lbs
• Pipe Size: 1/4 in
• Stem Type: Blowout Proof
• Body Style: Inline
• Connection Type: FNPT
• Valve Size: 1/4 NPT
• Ball Material: Chrome Plated Carbon Steel
• Body Material: Carbon Steel
• Porting Style: Standard Port
• Seat Material: RPTFE
• Standards Met: MSS-SP-110, A108
• Overall Length: 4.87 in
• Handle Type: Lever
• Maximum Pressure: 2000 psi CWP
• Temperature Range: 20 to 450 °F
