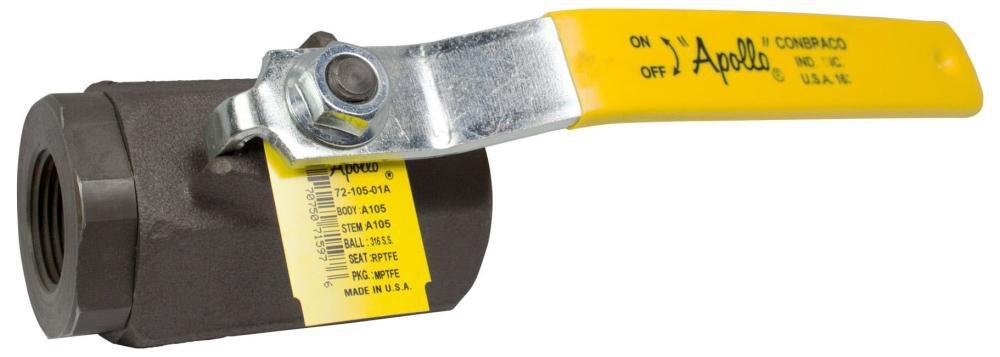

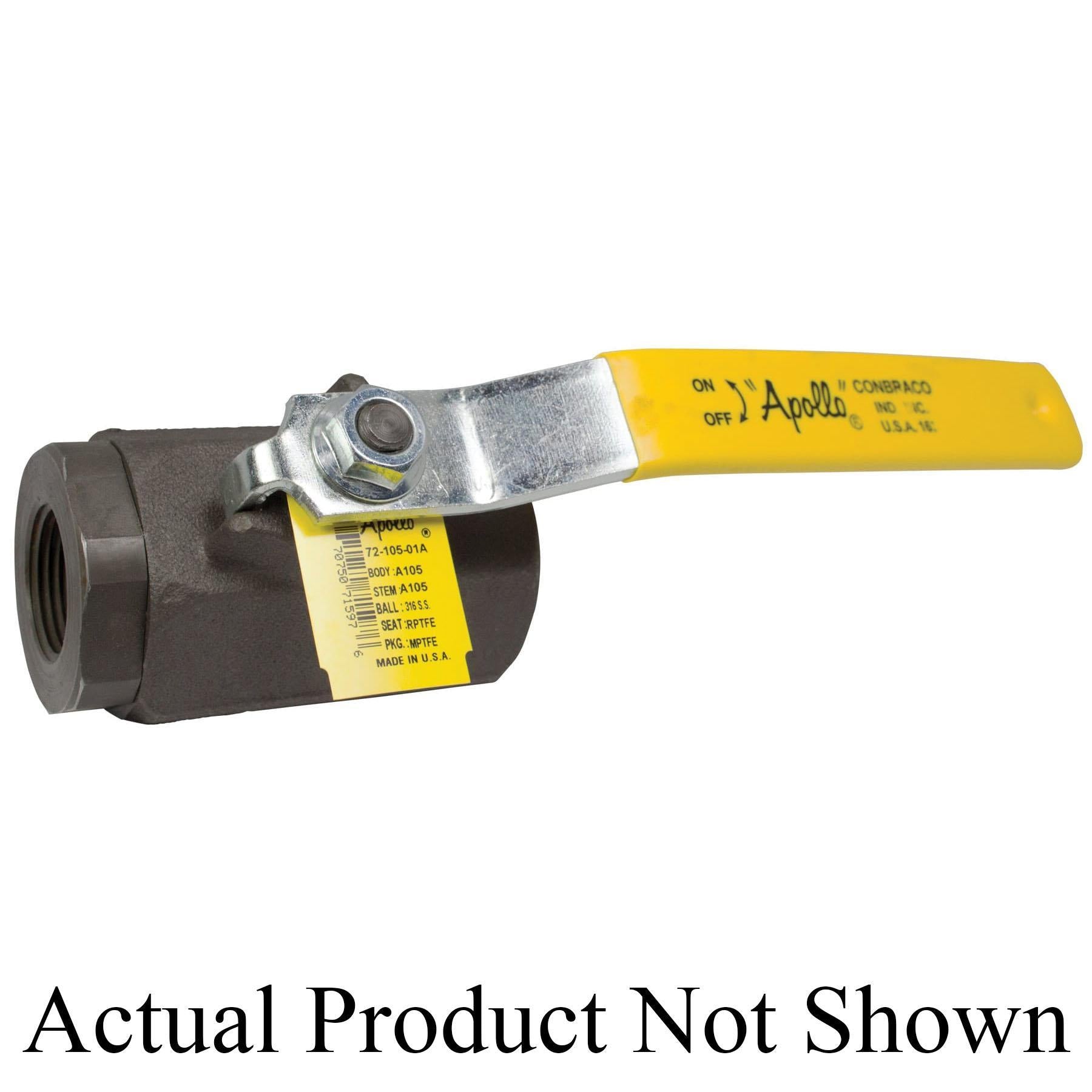

Apollo Valves 7210401A 72-100 Series Ball Valve 3/4 in.

Product Description

The APOLLO VALVES 7210401A is a 72-100 Series ball valve designed for high-pressure applications. It features zinc phosphate corrosion protection and an adjustable packing gland. The valve has a forged body design and reinforced seats, making it suitable for industrial applications. It is made in the USA and has a full port.

• Zinc phosphate corrosion protection
• Adjustable packing gland
• Forged body design

Product Highlights

This APOLLO VALVES ball valve is ideal for high-pressure environments, offering durability and reliable performance with its robust design and full port.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 7210401A
• Country of Origin: USA

Technical Specifications

• Actuator Type: Lever Handle
• Ball Material: Chrome Plated Carbon Steel
• Body Material: Carbon Steel
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 3.66 in
• Nominal Size: 3/4 in
• Port Type: Full
• Pressure Rating: 3000 psi
• Series: 72-100-A
• Softgoods Material: MPTFE/RPTFE
• Top to Inlet Center: 2.27 in
• Trim Material: Carbon Steel/RPTFE
• Type: 2-Piece High Pressure
• Connection Type: FNPT x FNPT
• Flow Coefficient (Cv): 48 Cv
• Handle Material: Steel
• Material Standard: ASTM A105
• Media: Water
• Opening Size: 0.81 in
• Operator Type: Lever Handle
• Packing Material: MPTFE
• Seal Material: RPTFE
• Seat Material: RPTFE
• Stem Material: Carbon Steel
• Temperature Rating: -29 to 260 deg F
• Weight: 3.07 lbs
• Configuration: Standard
