Product Description

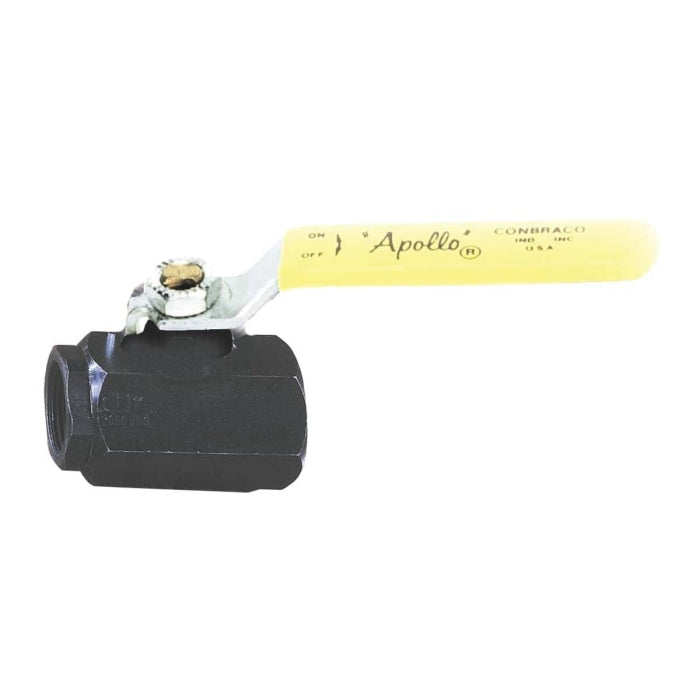

The Apollo Valves 72-144-64 is a full-port high-pressure ball valve designed for various industrial applications. This valve features a barstock design and offers reliable performance in demanding environments. It is constructed from carbon steel with a 316 stainless steel ball and stem, ensuring durability and longevity. This valve is suitable for systems requiring high temperatures and pressures.
- Barstock design
- Nitride corrosion protection
- Vacuum service to 29 inches Hg
Product Highlights
The valve includes features such as adjustable packing gland, blow-out proof stem design, and heavy-duty lever handles for ease of use.
Product Information
Standard Information
-
Brand: Apollo Valves
-
Manufacturer: Apollo Valves
Technical Specifications
-
Ball Material: 316 Stainless Steel
-
Connection Size: 3/4 in
-
Connection Type: FNPT
-
Dimension: 3.71 in L
-
Item Name: Ball Valve
-
Material Specifications: ASTM A108, ASTM A276
-
Material: Carbon Steel
-
Model: 72-140
-
Operator Type: Zinc-Plated Steel with Yellow Vinyl Grip Lever Handle
-
Packaging Material: MPTFE
-
Pressure Rating: 300 psig CWP, 250 psig Saturated Steam
-
Seat Material: MPTFE
-
Series: 72
-
Stem Material: 316 Stainless Steel
-
Type: High Pressure, Full Port
