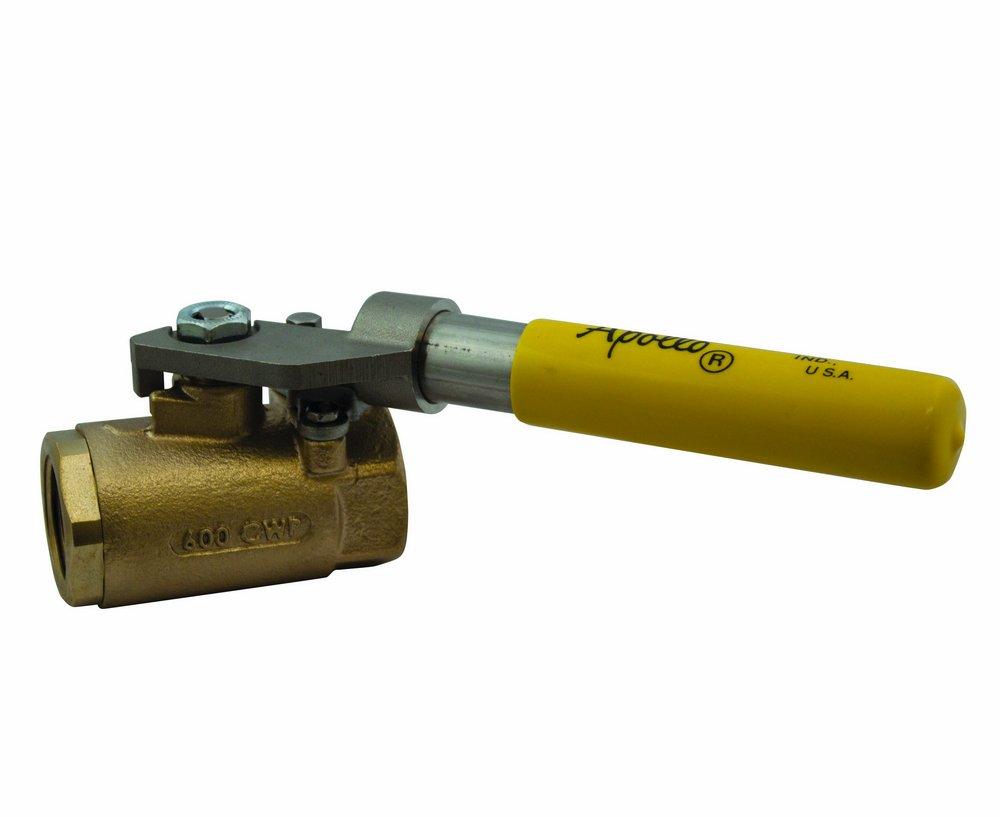

Apollo Valves 7150401 71-500 Series 3/4 in. Bronze Standard Port FNPT 600# Ball Valve

Product Description

The Apollo Valves 7150401 is a 71-500 Series bronze ball valve designed for reliable service and performance. This three-quarter inch valve features a standard port and is built to withstand pressure ratings up to six hundred psi. Its blow-out proof stem and adjustable packing gland ensure durability in demanding applications.

• Spring return handle for safety
• Blow-out-proof stem design
• Operates efficiently under high torque

Product Highlights

This valve is ideal for plumbing applications requiring reliable shut-off capabilities, especially in fuel lines. The reinforced seats and chromium plated ball provide enhanced durability.

Product Information

Standard Information

• Application: Plumbing
• Construction: 2-Piece

Technical Specifications

• Body Material: Bronze
• Ball Material: Chrome Plated Brass
• Stem Material: 316 Stainless Steel
• Seat Material: PTFE
• Connection Type: FNPT x FNPT
• Maximum Pressure: 600 psi CWP
• Temperature Range: -20 to 450 °F
• Overall Length: 7.34 inches
