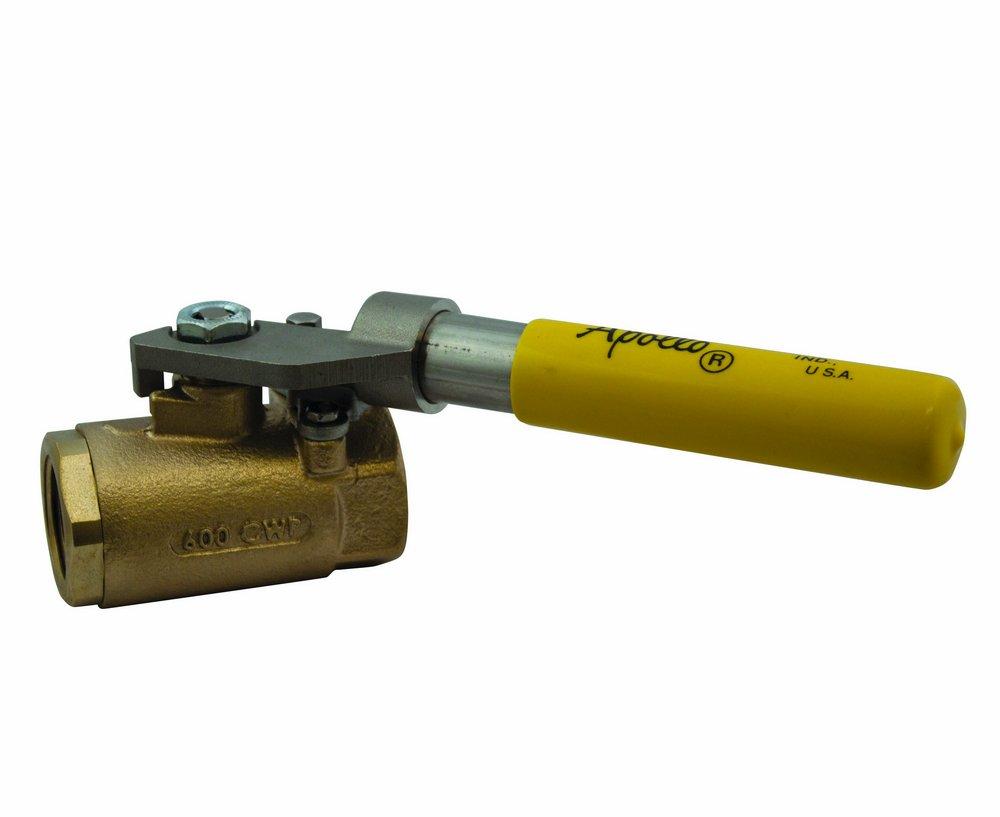

Apollo Valves 7150301 71-500 Series 1/2 in. Bronze Standard Port FNPT 600# Ball Valve

Product Description

The Apollo Valves 7150301 71-500 Series is a 1/2 inch bronze ball valve designed for high performance and reliability. It features a standard port and is rated for 600 psi CWP and 150 psi for steam applications. This valve is suitable for a range of fluid control applications, including industrial uses.

• Blow-out-proof stem design
• Adjustable packing gland
• Operating torque is approximately three times standard valve torque

Product Highlights

This valve is ideal for use in applications that need to remain closed, such as in fuel line feeding or sampling processes. The stainless steel lever components provide durability and reliability.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 7150301

Technical Specifications

• Weight: 1.35 lbs
• Pipe Size: 1/2 in
• Body Material: Bronze
• Stem Material: 316 Stainless Steel
• Ball Material: Chrome-Plated Brass
• Seal Material: PTFE
• Pressure Rating: 600 psi CWP, 150 psi saturated steam
• Temperature Range: -20 to 450 °F
• Connection Type: FNPT
• Overall Length: 6.94 in
