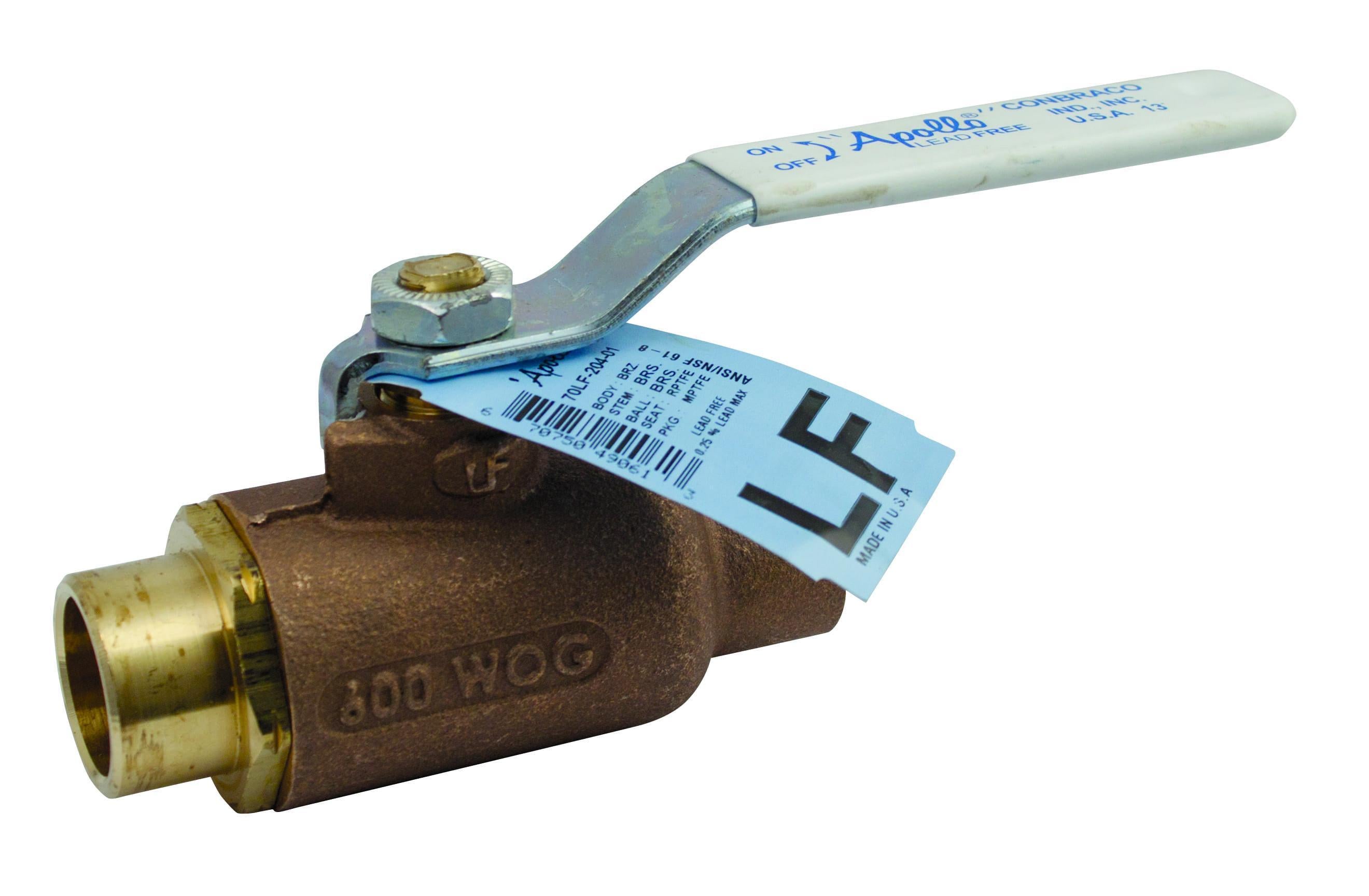

Apollo Valves 70LF20427 70LF-200 2-piece Ball Valve 3/4 in Nominal

Product Description

The APOLLO VALVES 70LF20427 is a 2-piece ball valve from the 70LF-200 series, designed for plumbing and heating systems, including potable water applications. This 3/4 inch nominal valve features a solder end style, a lead-free bronze body, and a reduced bore. It is rated for 600 psi CWP pressure and temperatures up to 450 deg F, ensuring robust performance in various fluid control systems.

• Stainless steel latch-lock lever and nut for secure operation.
• Constructed with lead-free brass and bronze materials for potable water safety.
• Designed, manufactured, and 100% factory tested in the USA.

Product Highlights

Lead-free bronze ball valve with a latch-lock lever, suitable for plumbing and heating systems, including potable water.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 70LF20427
• Country of Origin: US

Technical Specifications

• Brand: Apollo
• Nominal Size: 3/4 in
• End Style: Solder
• Pressure Rating: 600 psi CWP
• Body Material: Lead Free Bronze
• Port Type: Standard
• Softgoods Material: RPTFE
• Actuator Type: Latch-Lock Lever
• Ball Material: Chrome Plated Brass
• Inlet to Outlet Length: 3.87 in
• Manufacturer: Apollo Conbraco
• Series: 70LF-200
• Temperature Rating: 450 deg F
• Top to Inlet Center: 2.12 in
• Trim Material: Brass Stem and RPTFE Seat
• Type: 2-Piece
• Application: Plumbing and heating systems, including potable water
• Domestic/Import: Domestic
• Standards and Approvals: ANSI 3RD Party Certified | CRN OC10908.5C | MSS SP-110 | NSF/ANSI 61-8 Annex G | NSF/ANSI 372 | UNS C89836 Body | UNS C27451 Ball/Stem | PROP65: Cancer and Reproductive Harm
• Shape: Straight
• Bore Type: Reduced Bore
• Connection 1: Soldered sleeve
• Connection 2: Soldered sleeve
• Operation: Lever handle
• Housing Construction: 2-part
• Color: Yellow, Bronze
• D1: 0.88 , 1.06
• D2: 0.88
• E: 0.81
• Handle Length: 0.37"
• Handle/Handwheel Height: 0.92"
• Lead-Free: Yes
• Connection Length 1: 1.92"
• Connection Length 2: 1.93"
• M1: 0.37
• M2: 5.28
• Outer Pipe Diameter Connection 1: 0.88"
• Outer Pipe Diameter Connection 2: 0.88"
• U: 0.87
• V: 1.39
• Working Connection Length 1: 1.17"
• Working Connection Length 2: 1.18"
• Y: 0.92
• Z1: 1.17
• Z2: 1.18
