Apollo Valves 70LF-207-01 Sweat Bronze Ball Valve (1-1/2 in) 670750511530

Product Description

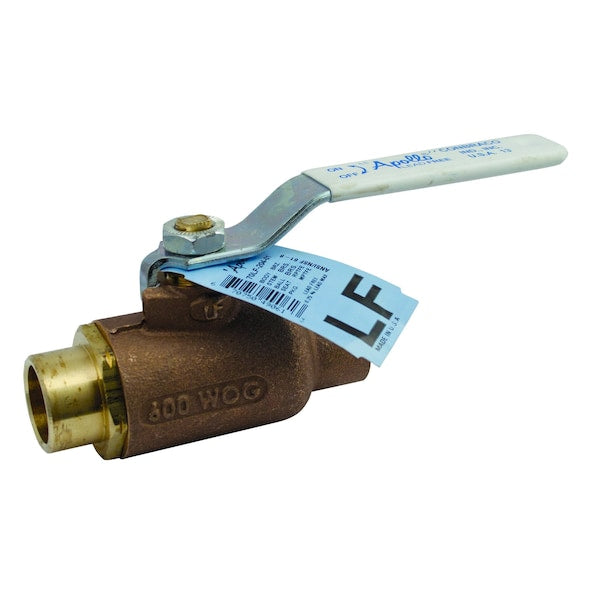

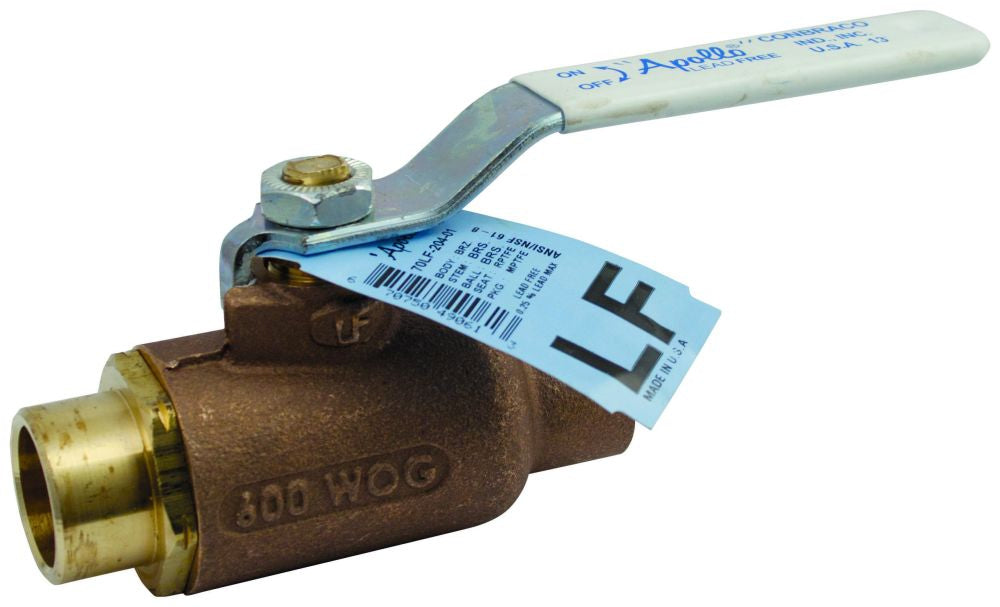

Apollo Valves 70LF-207-01 is a 1-1/2 inch sweat bronze two-way manual ball valve with two-piece construction and a chrome-plated brass ball. It is designed for air and water service with PTFE seats and a blowout-resistant brass stem. The valve features sweat x sweat connections, a lever handle, 5.25 inch end-to-end length, and is rated 600 PSI CWP and -20°F to 350°F operating temperature.

• Bronze body with chrome-plated brass ball, PTFE seats and RPTFE seals; two-piece inline construction
• Rated 600 PSI CWP (non-shock), steam rating 150 PSI WSP; operating temperature -20°F to 350°F
• Sweat x sweat connections, 1-1/2 in nominal size, overall length 5.25 in, lever handle with PVC and zinc-plated steel

Product Highlights

Two-piece 1-1/2 in sweat bronze ball valve for air and water, 600 PSI CWP, -20°F to 350°F, NSF 61 and ISO 9001 compliant.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750511530
• Country of Origin: United States

Technical Specifications

• Brand: Apollo Valves
• Manufacturer Part Number: 70LF-207-01
• UPC: 670750511530
• Valve Series: 70
• Series/Model: 70LF-200
• Product Type: Ball valve, 2-piece
• Nominal Size: 1 1/2 in
• Connection Type: Sweat x Sweat
• End Connection: Sweat x Sweat (soldered)
• Overall Length / End to End Distance: 5.25 in
• Connection Size - Side 1: 1 1/2 in
• Connection Size - Side 2: 1 1/2 in
• Body Material: Bronze (C89836)
• Ball Material: Chrome plated brass (C27451)
• Stem Material: Brass (C27451)
• Seat Material: PTFE / RPTFE
• Seal Material: RPTFE
• Handle Material: PVC, zinc-plated steel (lever)
• Handle Type: Lever
• Handle Length: 7.75 in
• Handle Height: 3.06 in
• Body Style: Inline
• Port Type: Standard port
• Valve Ways: 2-way
• Valve Structure: Two-piece
• Stem Type: Blowout resistant
• For Media: Air, Water
• Maximum Pressure (CWP): 600 PSI
• Maximum Pressure - Steam: 150 PSI WSP
• Operating Temperature Range: -20 °F to 350 °F
• Operating Temperature - Minimum: -20 °F
• Vacuum Service Rating: 29 in Hg
• Applications: Plumbing, heating systems, potable water, air and water service
• Standards / Compliance: NSF 61; ISO 9001; Build America Buy America Act (BABA); Buy American Act (BAA); CRN
• Country of Origin: United States
• Valve Series Group: 70
• Item: Ball valve
