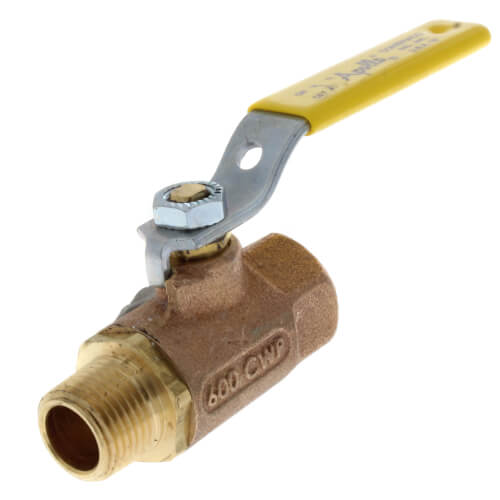

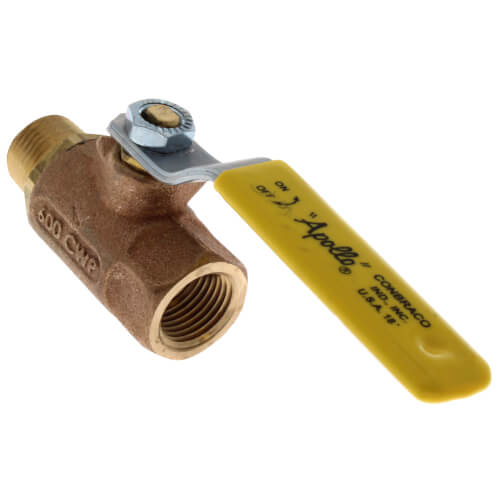

Apollo Valves 7080301 70-800 Series 1/2 in Bronze Standard Port MNPT x FNPT 600# Ball Valve

Product Description

The Apollo Valves 7080301 is a 1/2 inch standard port ball valve designed for efficient operation in plumbing applications. This valve features male NPT x female NPT threaded connections, providing a reliable seal. It is ideal for applications requiring a maximum pressure of 600 psi CWP and is compliant with MSS SP-110 standards.

• Standard port design eliminates the need for additional fittings.
• Blow-out proof stem for enhanced safety.
• Adjustable packing gland for simple maintenance.

Product Highlights

This valve is suitable for both cold water and steam applications. Its robust design ensures durability and longevity.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 7080301

Technical Specifications

• Pipe Size: 1/2 in
• Stem Type: Blowout Proof
• Body Material: Bronze
• Maximum Pressure: 600 psi CWP
• Temperature Range: -20 to 450 °F
• Valve Size: 1/2 NPT
• Connection Type: MNPT x FNPT
• Flow Coefficient (Cv): 15 Cv
