Product Description

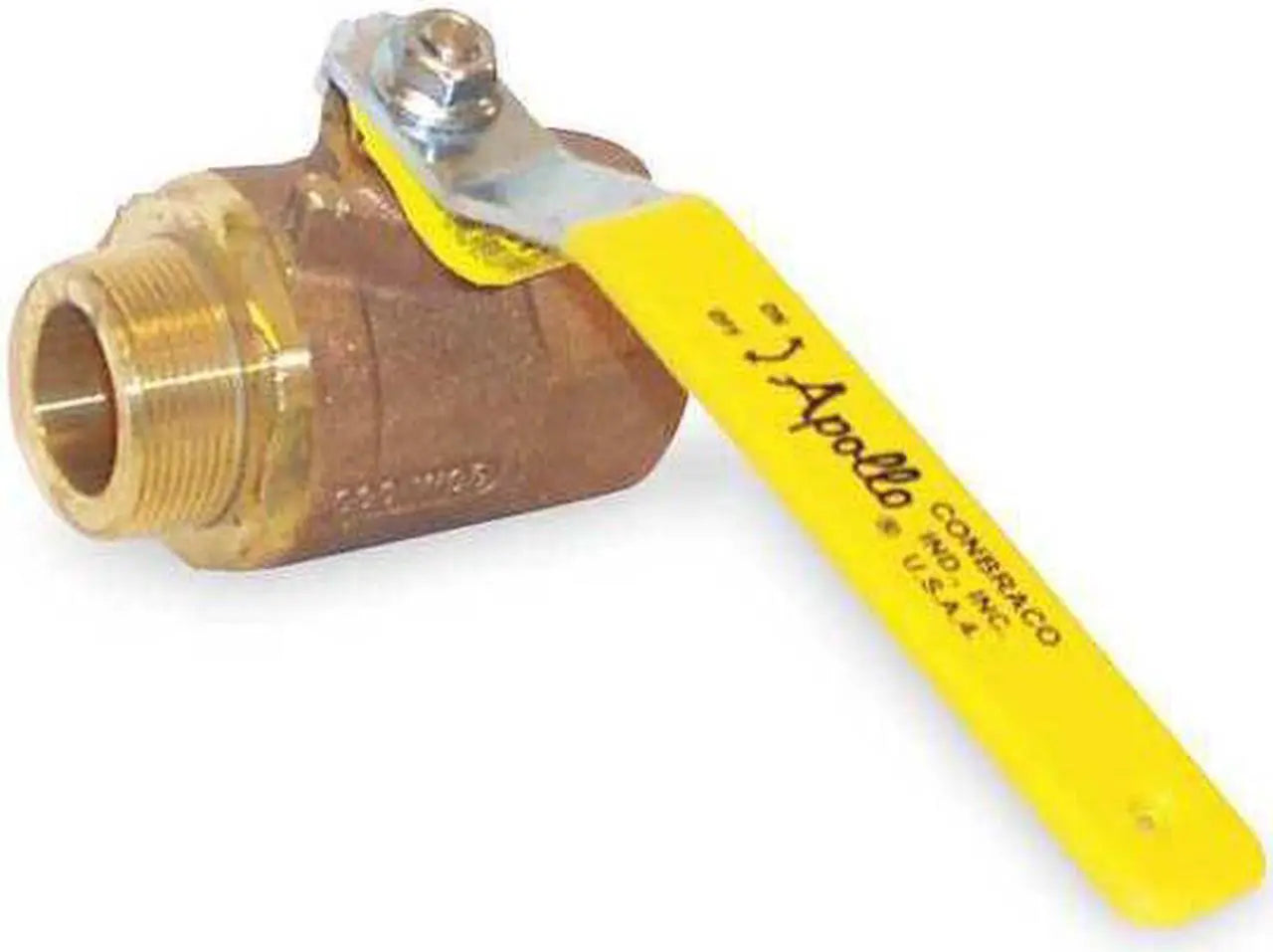

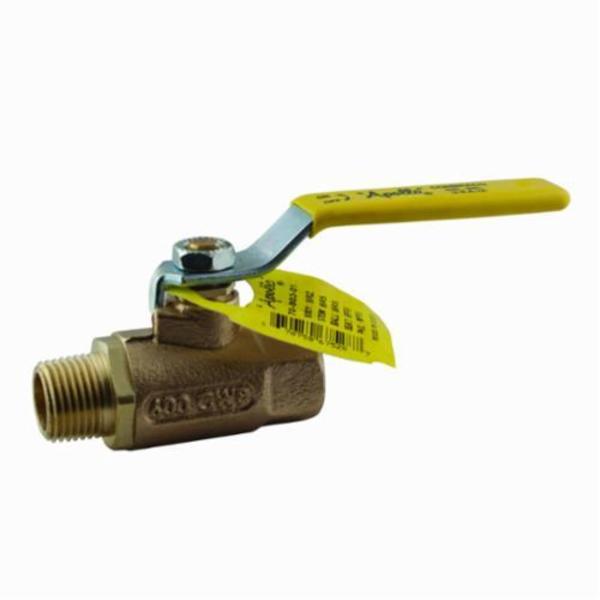

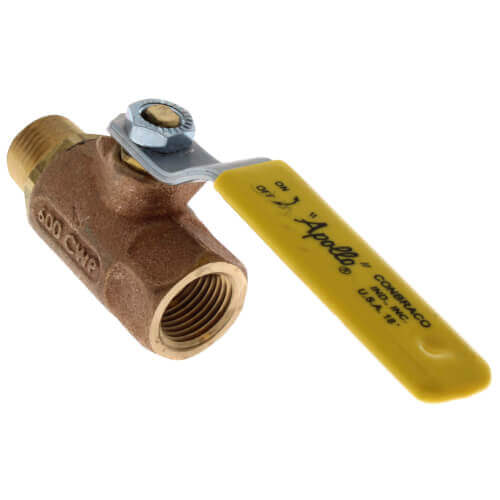

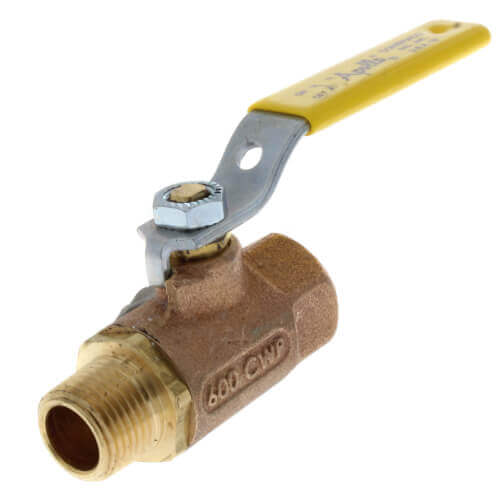

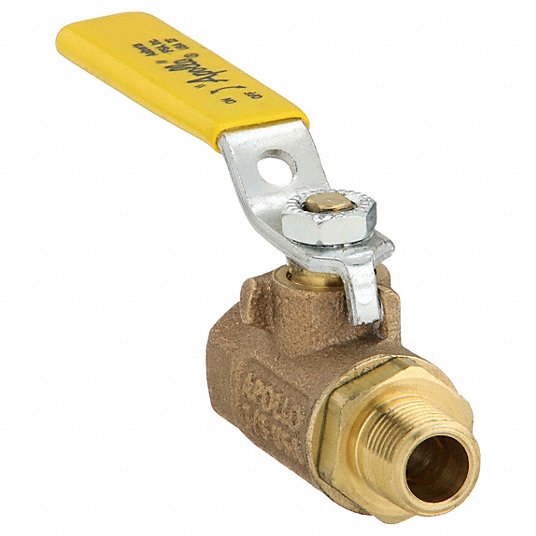

The APOLLO VALVES 7080201 is a 3/8" APO 70 2PC FP MXF BV BRZ. This standard port ball valve eliminates the need for an extra nipple when connecting to female connections. It is suited for high-temperature applications and opens and closes with a lever handle. The valve is designed for a maximum pressure of 600 psi CWP and 150 psi SWP.
- Adjustable Packing Gland
- Blow-Out Proof Stem Design
- RPTFE Seats and Stuffing Box Ring
Product Highlights
This bronze ball valve features a standard port, RPTFE seats, and a blow-out proof stem design. It is suitable for plumbing applications with a lever handle style and threaded connection method.
Product Information
Standard Information
-
Brand: APOLLO VALVES
-
Manufacturer Part Number: 7080201
-
Country of Origin: USA
Technical Specifications
-
Brand: APOLLO VALVES
-
Final Category: Ball Valves
-
Category 1: Plumbing Supplies
-
Category 2: Valves
-
Category 3: Ball Valves
-
Body Material: Bronze
-
Port: Nominal Valve Size
-
Connection Type: Threaded (MNPT x FNPT)
-
Size: 3/8"
-
Max. Pressure: 600 CWP (psig), Cold Non-Shock. 150 psig Saturated Steam
-
Ball Material: Chrome-Plated Brass
-
Handle Material: Zinc-Plated Steel
-
Handle Type: Lever
-
Seat Material: PTFE
-
Stem Packing: RPTFE
-
MPN: 7080201
-
California Prop 65 Warning: Y
-
Country of Origin: US
-
For Media: Steam
-
Valve Construction: Two-Piece
-
Valve Body Style: Straight
-
Ball Port Style: Standard
-
Connection Size - Side 1: 3/8 in
-
Connection Type - Side 1: NPT
-
Connection Gender - Side 1: Female
-
Connection Size - Side 2: 3/8 in
-
Connection Type - Side 2: NPT
-
Connection Gender - Side 2: Male
-
Max. Pressure (CWP): 600 psi
-
Max. Pressure (Steam): 150 psi
-
Max. Pressure (Combustible Gas): Not Rated
-
Media Temp. Range: -20 °F to 425 °F
-
Vacuum Service Rating: 29 in Hg
-
3-A Compliance: Not Rated
-
Standards: ASTM B584-C84400; Build America Buy America Act (BABA); Buy American Act (BAA); CRN
-
Handle Color: Yellow
-
Seal Material: PTFE
-
Stem Material: Brass
-
Stem Type: Blowout Resistant
-
Cleaned and Bagged: Not Cleaned and Bagged
-
Valve Body Color: Bronze
-
Overall Length: 2.5 in
-
Handle Length: 3.87 in
-
Handle Height: 1.75 in
-
Valve Series: 70
-
UNSPSC: 40141607
-
Actuator Type: Lever Operated
-
Inlet to Outlet Length: 2-1/2 in
-
Nominal Size: 3/8 In
-
Port Type: Standard
-
Pressure Rating: 600 psig CWP
-
Series: 70-800
-
Softgoods Material: RPTFE/MPTFE
-
Temperature Rating: 425 deg F
-
Top to Inlet Center: 1-3/4 in
-
Trim Material: Brass Stem and PTFE Seat
