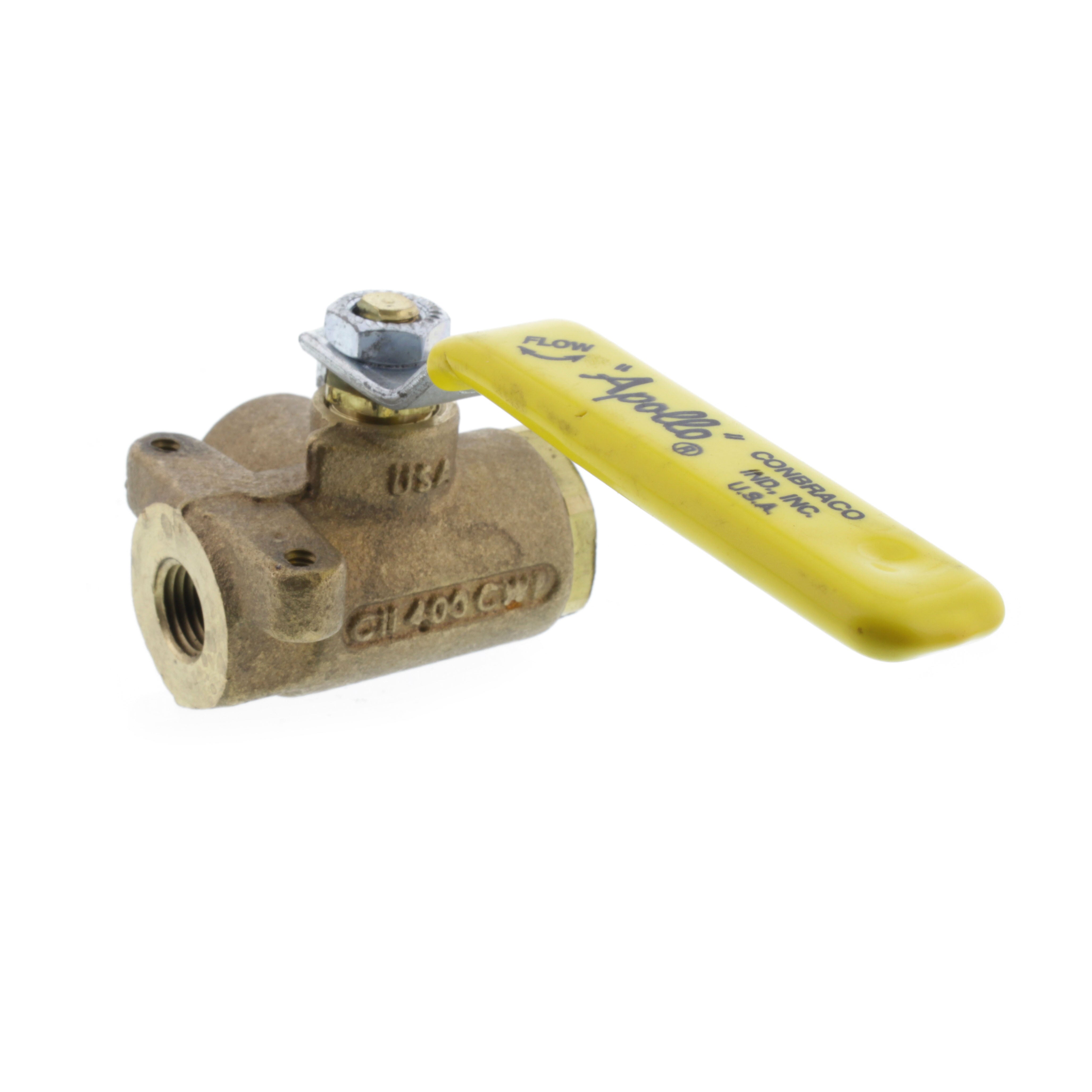

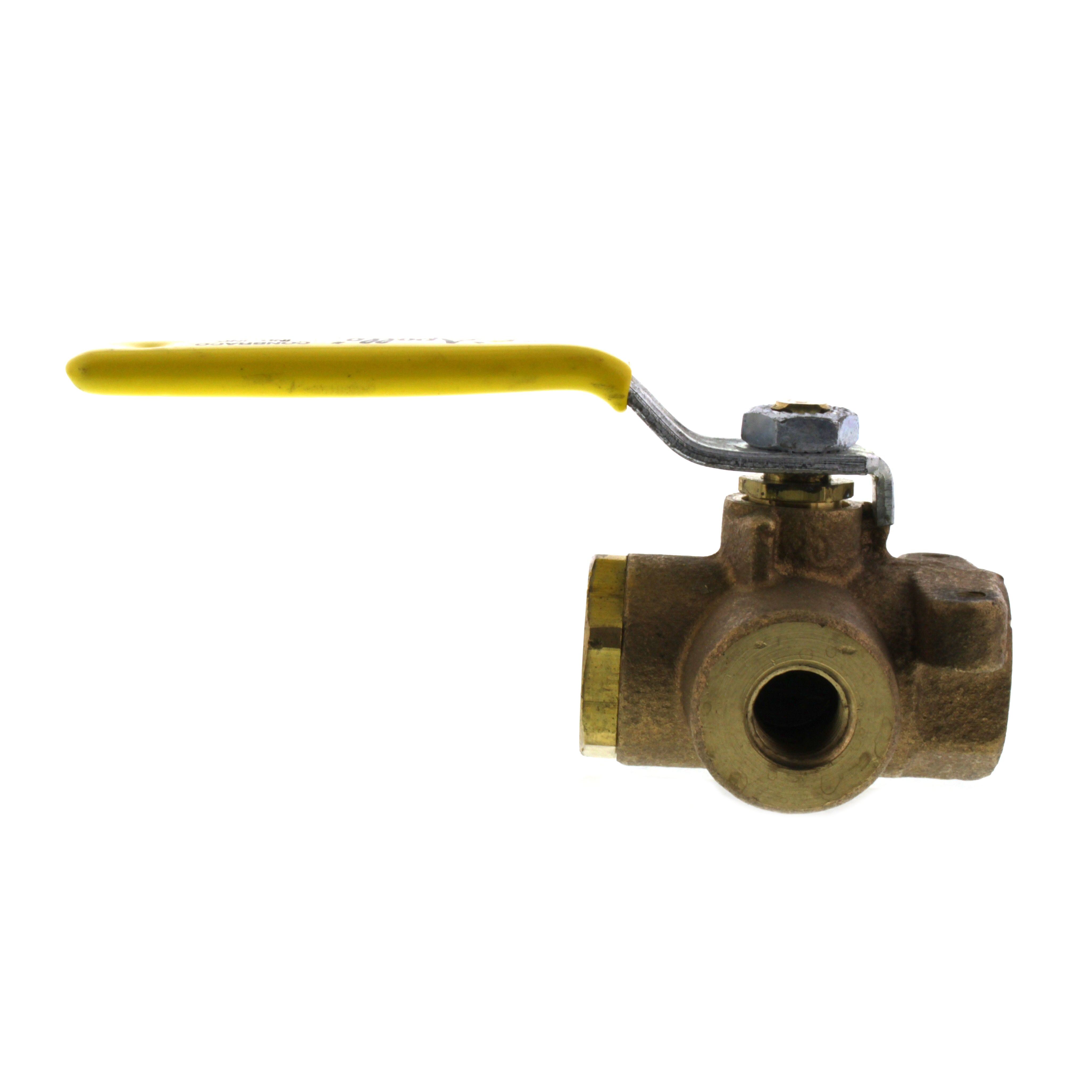

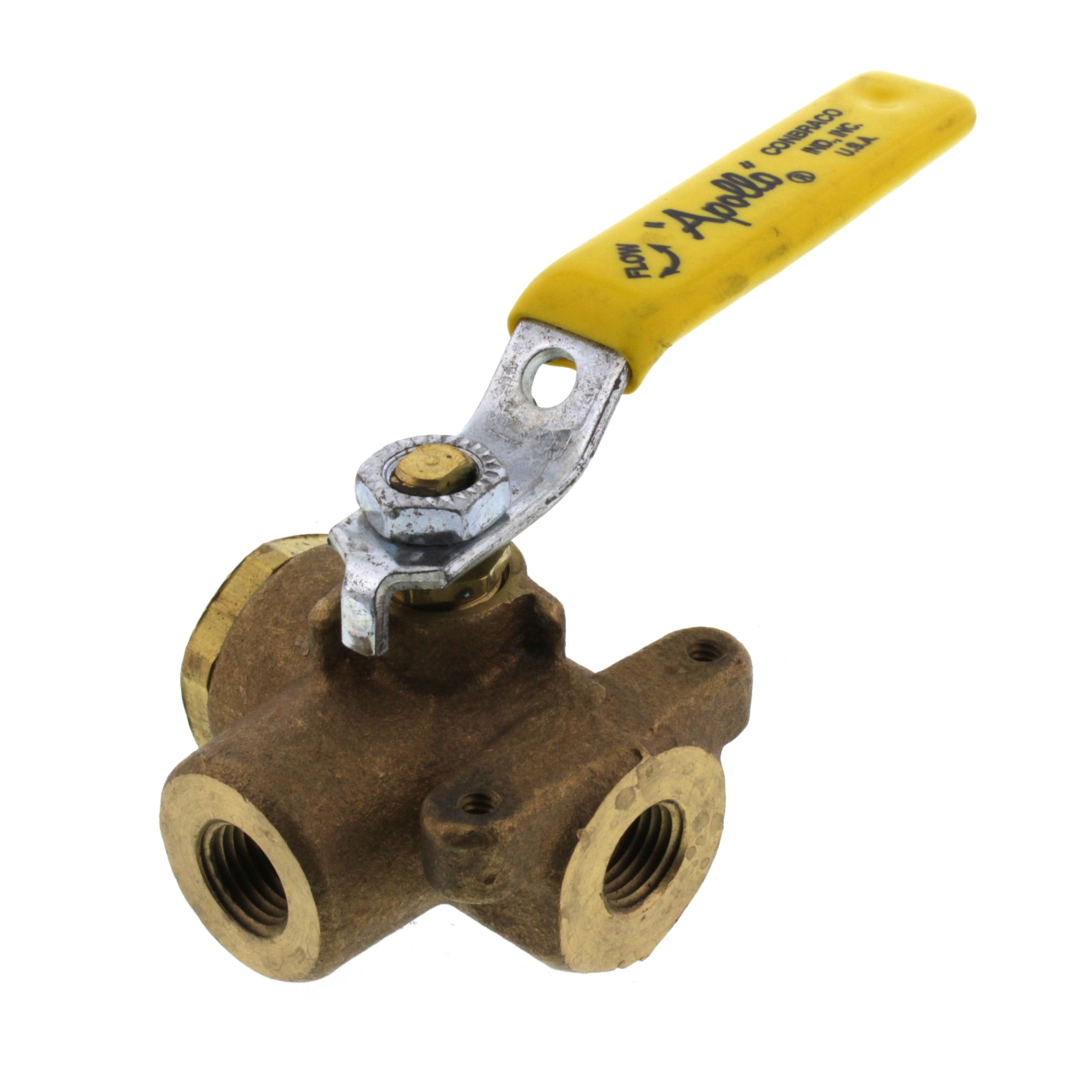

Apollo Valves 7060101 70-600 Series 1/4 in. Bronze Full Port FNPT 400# Ball Valve

Product Description

The Apollo Valves 7060101 is a bronze full port FNPT ball valve designed for plumbing and fluid transfer applications. This valve is made using ASTM materials, offering reliability and durability. It features a three-way diversion design for efficient fluid control.

• Blow-out proof stem design ensures safety and reliability.
• RPTFE seats provide excellent resistance to wear.
• Adjustable packing gland allows for easy maintenance.

Product Highlights

Ideal for use in plumbing systems, this valve meets standards and ensures optimal performance in controlling flow.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 7060101

Technical Specifications

• Body Material: Bronze
• Valve Size: 1/4 in FNPT
• Maximum Pressure: 400 psi CWP
• Connection Type: FNPT x FNPT x FNPT
• Temperature Range: -20 to 450 °F
• Overall Length: 5.92 in
• Flow Coefficient (Cv): 2.3 Cv
• Standards Met: MSS-SP-110
