Apollo Valves 7020701 70-200 Series 1-1/2 in. Bronze Standard Port Solder 600# Ball Valve

Product Description

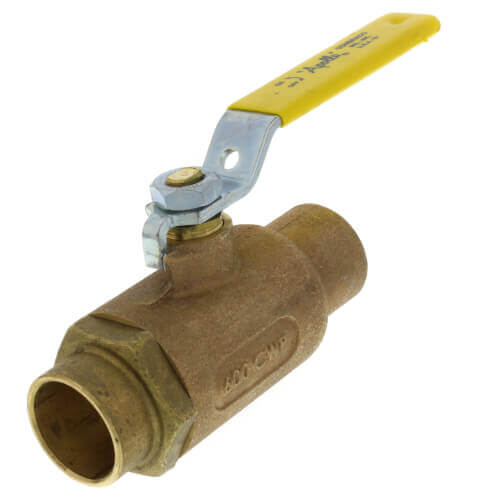

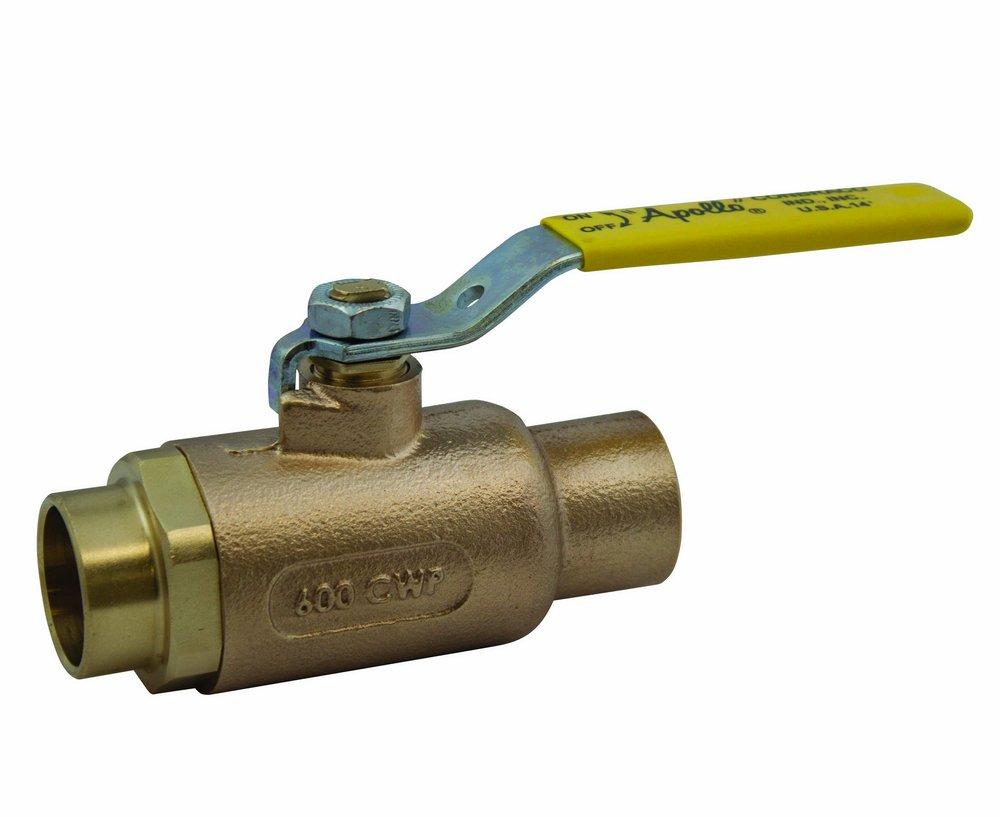

The Apollo Valves 70-200 Series 1-1/2 in. Bronze Standard Port Solder 600# Ball Valve, MPN 7020701, is designed for plumbing applications. This valve features a two-piece, standard port design for reliable performance. Made from high-quality bronze, it is suitable for varying systems, especially water and steam applications.

• Constructed with chromium plated ball for durability
• Capable of handling a maximum pressure of 600 PSI
• Compatible with soldered connections for easy installation

Product Highlights

This ball valve is built for strength and reliability, making it a preferred choice for plumbing installations.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 7020701

Technical Specifications

• Pipe Size: 1-1/2 in
• Connection Type: Solder
• Body Material: Bronze
• Ball Material: Chrome Plated Bronze
• Pressure Rating: 600 psi CWP
• Temperature Range: -20 to 450 °F
• Overall Length: 5.25 in
• Flow Coefficient (Cv): 84 Cv
