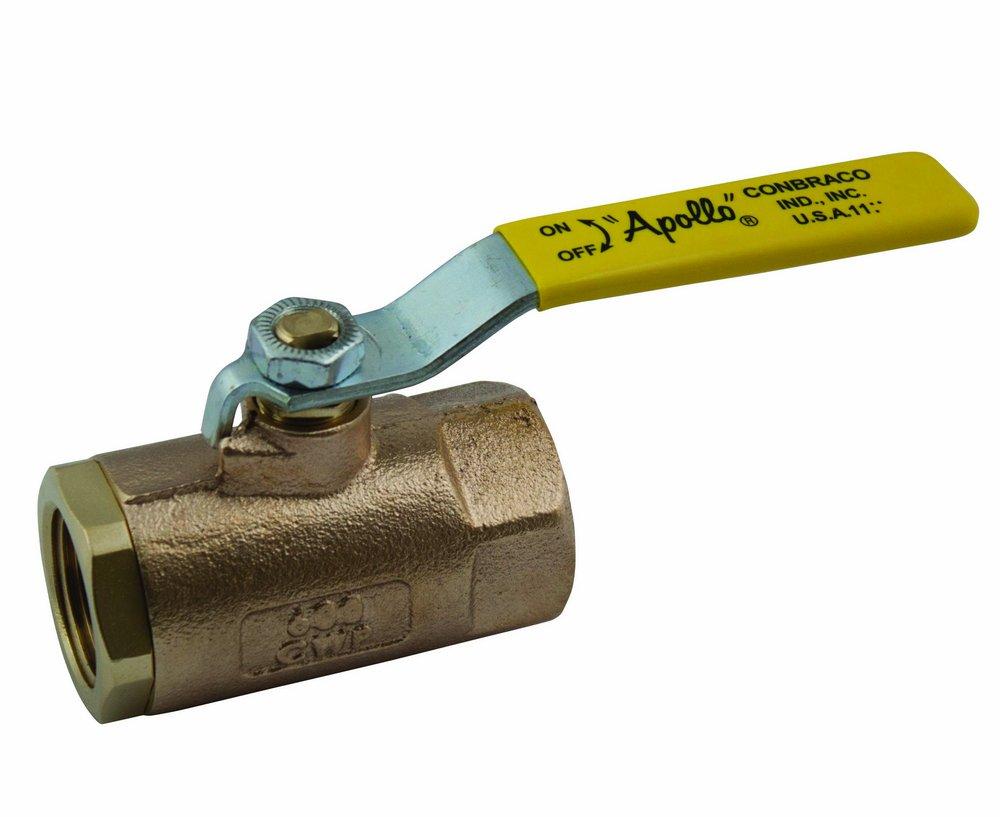

Apollo Valves 7014864 70-100 Series 2 in. Bronze Standard Port FNPT 250# Ball Valve

Product Description

The Apollo Valves 7014864 is a 70-100 Series two-inch bronze standard port FNPT ball valve. It is suitable for high-pressure steam systems and various fluids. The valve features a robust construction for reliable function and long-term use.

• Heavy cast bronze body
• Stainless steel slot vented ball
• Blowout-proof stem design

Product Highlights

This valve provides superior performance at a maximum pressure of six hundred psi and can handle temperatures up to five hundred degrees Fahrenheit. The design includes a packing gland and is compliant with MSS SP-110 standards.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 7014864

Technical Specifications

• Weight: 5.88 lbs
• Pipe Size: 2 inches
• Connection: FNPT x FNPT
• Valve Structure: 2-Piece
• Maximum Pressure: 600 psi CWP
• Temperature Range: -20 to 500 °F
• Ball Material: 316 Stainless Steel
• Body Material: Bronze B584
• Handle Type: Lever
• Seat Material: MPTFE
• Flow Coefficient (Cv): 108 Cv
