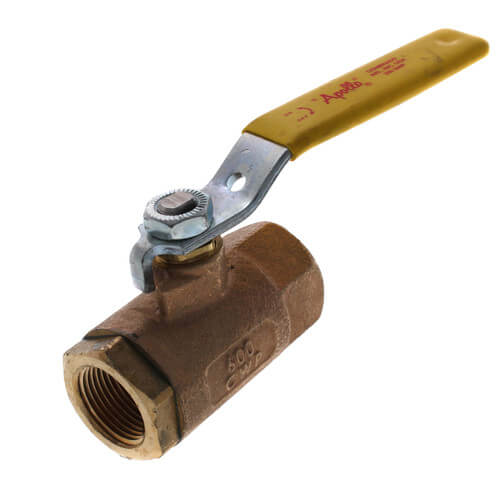

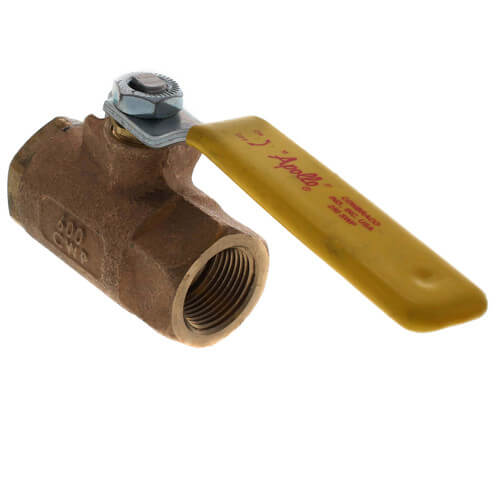

Apollo Valves 7014464 70-100 Series 3/4 Inch Bronze Standard Port FNPT 250# Ball Valve

Product Description

The Apollo Valves 3/4 Inch Bronze Ball Valve model 7014464 is engineered for high reliability in both residential and commercial applications. Exceptionally crafted from durable bronze, this valve assures a long service life and dependable performance.

• Durable bronze body conforms to ASTM B584 standards.
• Equipped with a 316 stainless steel ball and stem for resistance against corrosion.
• Features blow-out proof stem and adjustable packing gland for enhanced safety and functionality.

Product Highlights

This valve integrates a standard port design, ensuring minimal pressure drop and efficient flow control. Rated for 600 psi CWP and 150 psi SWP, it is compatible with a range of fluids including steam, with temperatures up to 500 degrees Fahrenheit.

Product Information

Standard Information

• Connection Type: FNPT x FNPT
• Size: 3/4 inch

Technical Specifications

• Body Material: Bronze
• Ball Material: 316 Stainless Steel
• Pressure Rating: 600 psi CWP, 250 psi SWP
• Temperature Range: Up to 500 degrees F
• Port Type: Standard
• Handle Type: Lever
• Valve Type: Ball Valve
• Approvals: MSS SP-110, CSA B51 CRN: OC10908.5C
