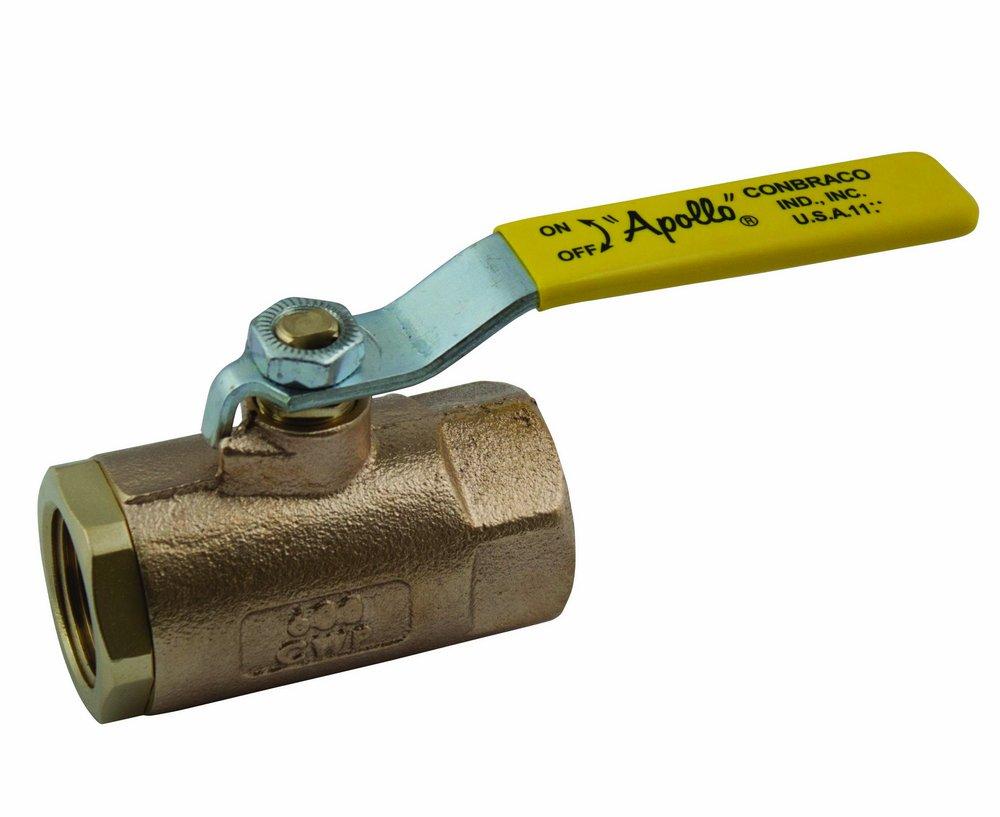

Apollo Valves 7010901A 70-100 Series 2-1/2 in. PTFE Bronze Standard Port FNPT 600# Ball Valve

Product Description

The Apollo Valves model 7010901A is a 70-100 Series ball valve with a two and a half inch size connection. This valve is constructed from bronze and is designed for standard port applications. It features female National Pipe Thread (FNPT) connections and is suitable for a variety of plumbing systems.

• Pressure rating of six hundred psi for cold water service.
• Operates successfully with saturated steam up to one hundred fifty psi.
• Compliant with ARRA and made in the USA.

Product Highlights

The Apollo 7010901A incorporates a blowout-proof stem design and RPTFE seats for durability and reliability. Its construction allows for efficient operations under high pressure.

Product Information

Standard Information

• Brand: Apollo Valves
• Model: 70-100

Technical Specifications

• Ball Material: Chrome-Plated Brass
• Connection Size: 2-1/2 in
• Connection Type: FNPT
• Dimension: 6-1/4 in L
• Flow Coefficient: 190 Cv
• Item Name: Ball Valve
• Material Specifications: ASTM B16, ASTM B584
• Material: Bronze
• Operator Type: Zinc-Plated Steel with Vinyl Grip Lever Handle
• Pressure Rating: 600 psi CWP, 150 psi WSP
• Seal Material: PTFE
• Seat Material: RPTFE
• Temperature Rating: 500 deg F
• Type: 2-Piece, Standard Port
