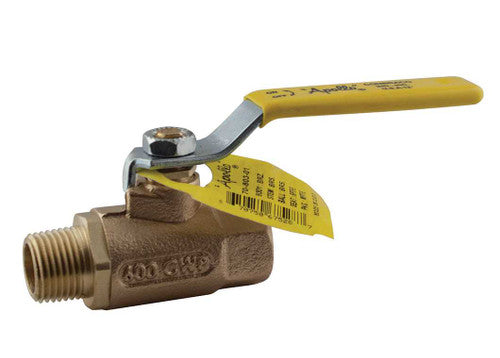

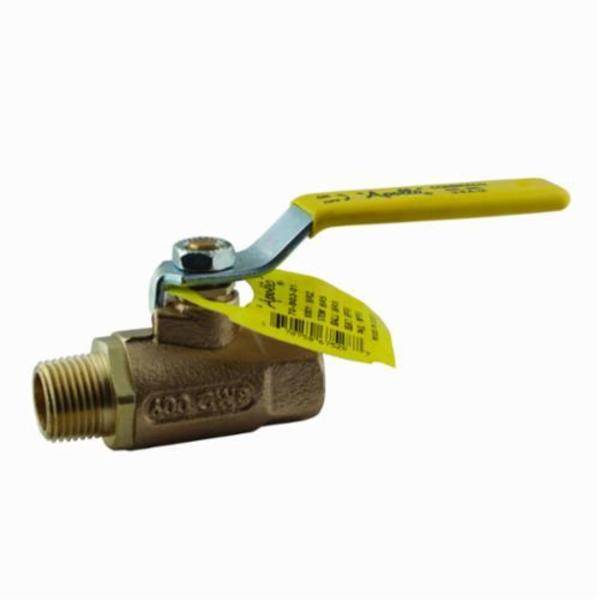

Apollo Valves 70-801-01 70-800 2-Piece Ball Valve, 1/4 in Nominal, MNPT x FNPT End Style

Product Description

The APOLLO VALVES 70-801-01 is a 70-800 series, 2-piece ball valve with a 1/4 in nominal size and MNPT x FNPT end style. This standard port ball valve eliminates the need for an extra nipple when connecting to female connections. It features a bronze body, brass stem and RPTFE seat trim, and MPTFE softgoods. It is suitable for gas and water media.

• Reinforced seats
• Male x female threaded end connections
• Blow-out proof stem

Product Highlights

The Apollo 70-800 series ball valve features reinforced seats and a blow-out proof stem. It has male x female threaded end connections and is suitable for vacuum service.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 70-801-01
• Country of Origin: United States

Technical Specifications

• Brand: Apollo™
• Nominal Size: 1/4 in
• End Style: MNPT x FNPT
• Pressure Rating: 600 psi CWP
• Body Material: Bronze
• Port Type: Standard
• Softgoods Material: MPTFE
• Actuator Type: Lever Operated
• Ball Material: Chrome Plated Brass
• Inlet to Outlet Length: 2.43 in
• Manufacturer Name: Apollo Conbraco
• Media: Gas/Water
• Orifice Size: 0.27 in
• Series: 70-800
• Temperature Rating: 425 deg F
• Trim Material: Brass Stem and RPTFE Seat
• Type: 2-Piece
• Includes: Adjustable Packing Gland
• Domestic/Import: Domestic
• Country of Origin: US
• Standards and Approvals: ASTM B16 Valve Body | MSS SP-110 | Federal Specifications WW-V-35C | Type II | CRN OC10908.5C | PROP65: Cancer and Reproductive Harm
• Item: Ball Valve, 2 Way Valve
• Handle Material: Steel
• Handle Type: Lever
• Seat Material: RPTFE
• Stem Packing: RPTFE
• Configuration: Standard
• Flow Coefficient (Cv): 8.4 Cv
• Packing Material: MPTFE
• Seal Material: PTFE
• Stem Material: Brass
• Pressure Ratings: 600 psig CWP, Non-Shock
• Vacuum service: to 29" Hg
• Seats and stuffing box ring: RPTFE
• Material Standard: ASTM B584-C84400, ASTM B16
• Lead-Free/Contains Lead: Contains Lead
