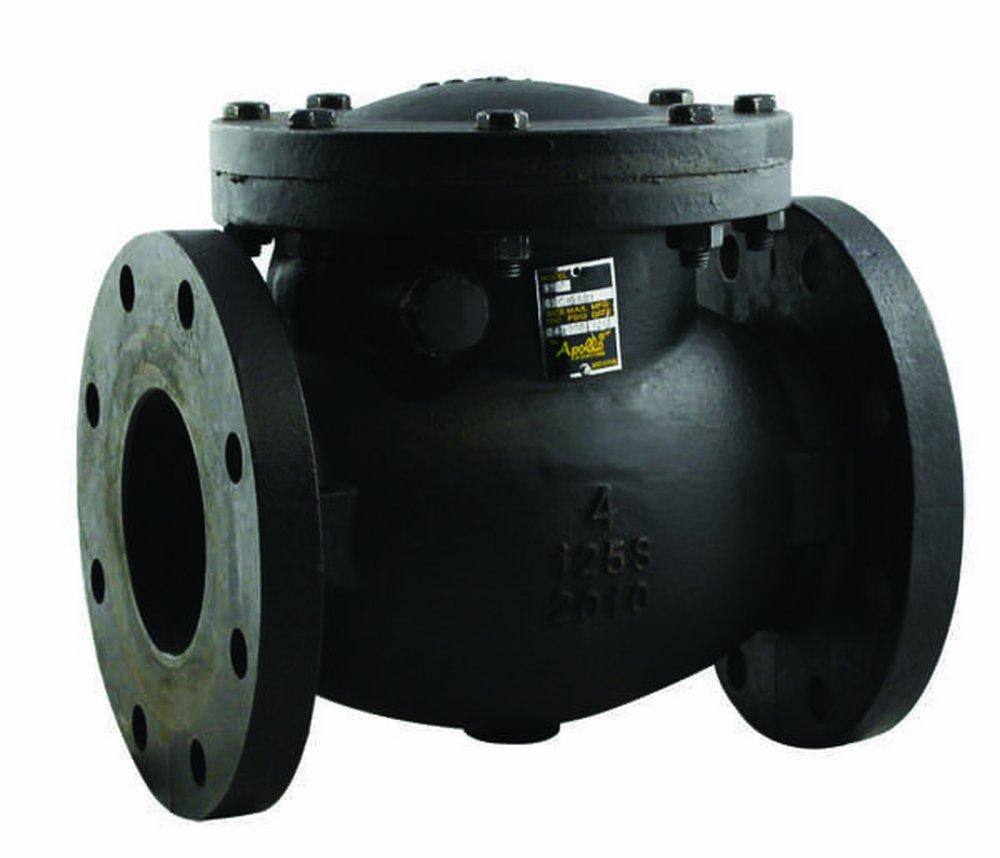

Apollo Valves 6WC109N1LF 910WB-LF 2-1/2 in. Epoxy Coated Cast Iron Flanged Check Valve A6WC109N1LF

Product Description

The Apollo Valves 910WB-LF, MPN 6WC109N1LF, is an epoxy coated cast iron flanged check valve designed for effective fluid control. This valve features a spring actuated mechanism ensuring reliable operation.

• Spring actuated for responsive action
• Grooved end connections for easy installation
• Lead-free materials compliant with standards

Product Highlights

This 2-1/2 inch valve is ideal for use in various plumbing and HVAC applications where backflow prevention is essential.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 6WC109N1LF

Technical Specifications

• Pressure Rating: 250 psi (17.2 bar) non-shock cold working pressure
• Temperature Range: Maximum temperature 180 degrees F (82 degrees C)
• Discs: Renewable bronze discs
• Connections: Grooved end connections
• Installation: To be installed between standard flat face flanges
• Seat Material: Buna-N seat
• Compliance: Conforms to ANSI/AWWA C606 for steel IPS pipe
