Apollo Valves 670750968280 94ALF20301A 94ALF-A 2-Piece Ball Valve 1/2 in

Product Description

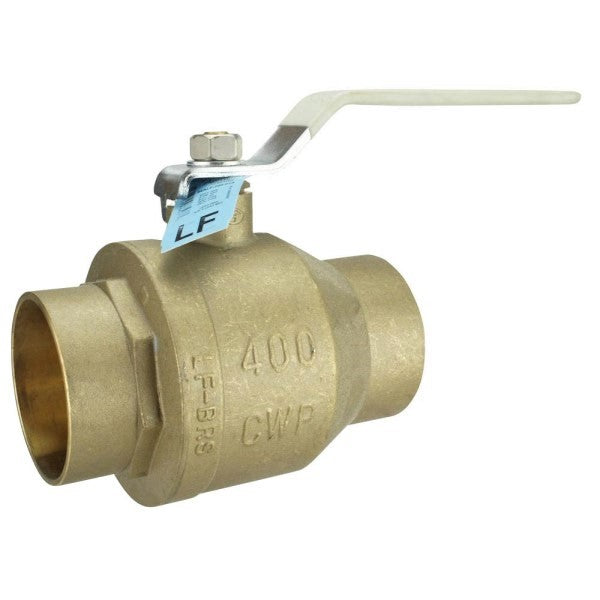

The APOLLO VALVES 670750968280 94ALF20301A is a 2-piece ball valve. The Apollo International 94ALF-A Lead Free forged brass ball valves combine reliable operation with maximum economy. It is ideal for gas, fuels, fire protection and general plumbing and HVAC applications including potable water. Valves are ANSI 3rd party Lead Free certified.

• Blow-out proof stem
• Distinctive white Lead free handle grip and blue Lead free hang tag
• Adjustable stem packing nut

Product Highlights

This 2-piece ball valve has multiple agency approvals and a lead free brass (DZR) retainer.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750968280

Technical Specifications

• Brand: Apollo
• Actuator Type: Lever Operated
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: Solder
• Inlet to Outlet Length: 2.05 in
• Media: Gas/Fuel/Water
• Nominal Size: 1/2 in
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: 94ALF-A
• Softgoods Material: PTFE
• Temperature Rating: -20 to 366 deg F
• Top to Inlet Center: 1.84 in
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
• Manufacturer: Apollo Conbraco
• Manufacturer #: 94ALF-203-01A
• Application: Ideal for gas, fuels, fire protection, general plumbing and HVAC
• Mfg Standards/Approvals: IAPMO IGC 157|FM Approved|Lead Free Certified|MSS SP-110|NSF/ANSI 61-8 Annex F and G|NSF/ANSI 372 Lead Free|UL Guide YQNZ/YRBX/YRPV/YSDT/MHKZ
