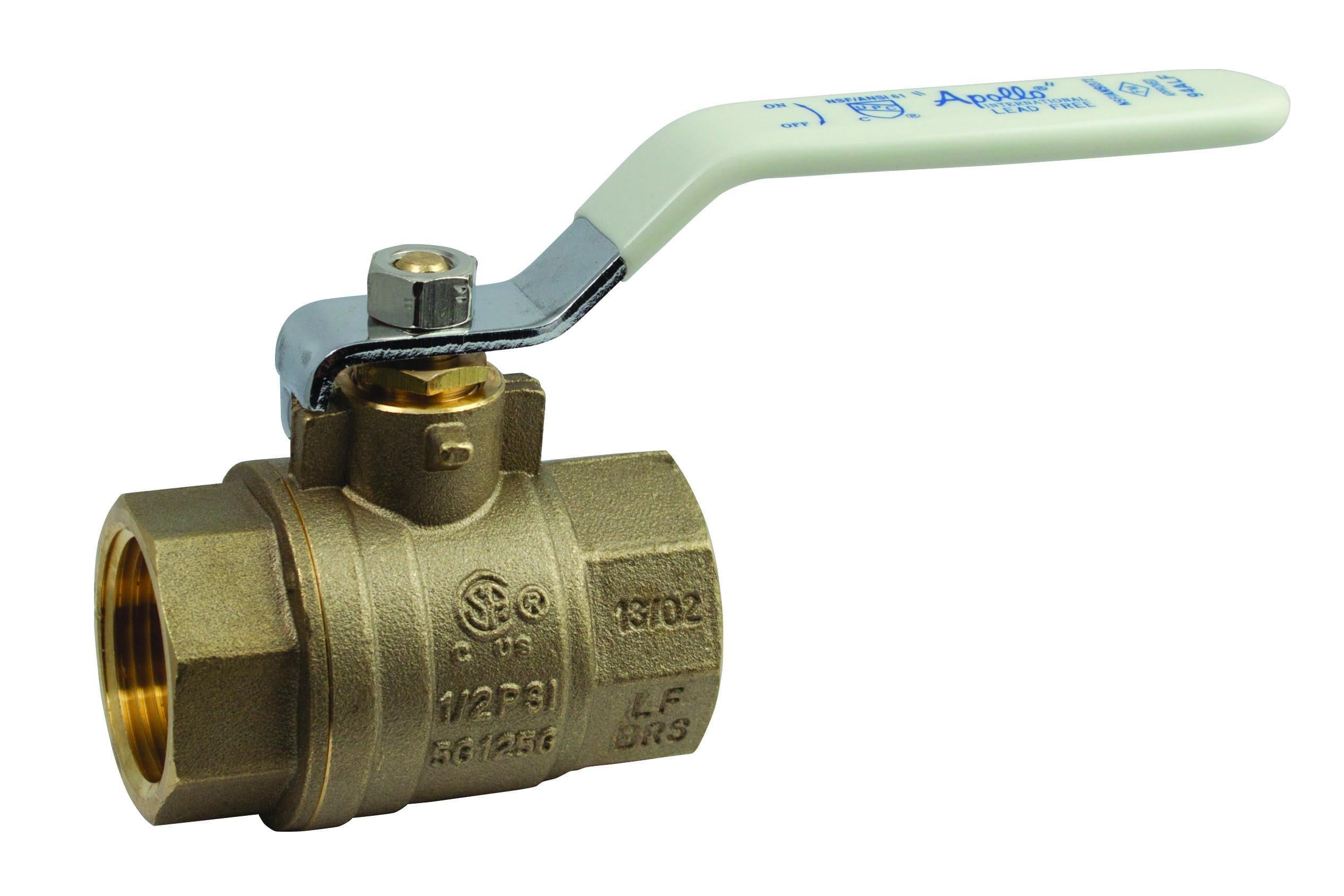

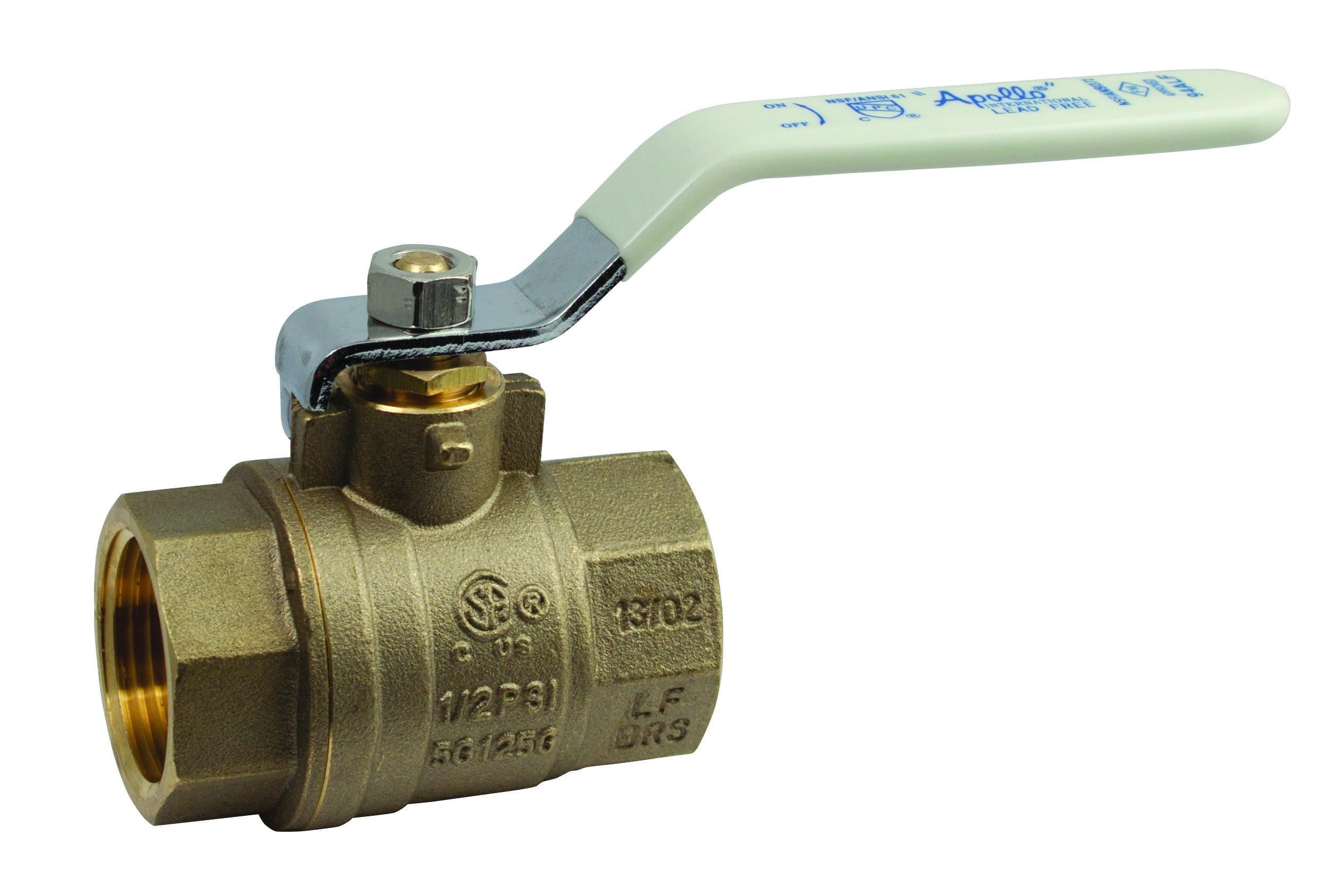

Apollo Valves 670750968235 94ALF-106-01A 2-Piece Ball Valve 1-1/4 in Fnpt

Product Description

Apollo Valves 670750968235 is a 2-piece, full-port ball valve (model 94ALF-106-01A) with 1-1/4 in Fnpt connections designed for gas, fuel and water service. The valve features a lead-free forged brass body, PTFE seats and a 316 stainless steel ball, and it is lever operated with a 600 psi cold working pressure rating and a temperature range of -20 to 366 deg F.

• Lead-free forged brass body with PTFE softgoods and 316 stainless steel ball
• Full port design, lever operated, 600 psi CWP pressure rating, temperature -20 to 366 deg F
• 1-1/4 in Fnpt nominal size, inlet-to-outlet length 3.31 in, top-to-inlet center 3.05 in

Product Highlights

Lead-free forged brass 2-piece full-port ball valve for gas, fuel and water service with PTFE seats, 316 stainless steel ball, lever operation, 600 psi CWP and -20 to 366 deg F temperature rating.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750968235
• Country of Origin: CN

Technical Specifications

• Brand: Apollo Valves
• Manufacturer Part Number: 670750968235
• Manufacturer Model: 94ALF-106-01A
• Series: 94ALF-A
• Type: 2-Piece Ball Valve
• Body Material: Lead-free forged brass
• Ball Material: 316 stainless steel
• Stem Material: Brass
• Seat Material: PTFE
• End Connection: FNPT
• Nominal Size: 1-1/4 in
• Port Type: Full port
• Actuator Type: Lever operated
• Pressure Rating: 600 psi CWP
• Temperature Rating: -20 to 366 deg F
• Inlet to Outlet Length: 3.31 in
• Top to Inlet Center: 3.05 in
• Weight: 1.57 lbs
• Applications: Gas, fuel, water, fire protection, general plumbing and HVAC
• Certifications: ANSI third-party lead-free certified; UL; FM; NSF; IAPMO; MSS SP-110
