Apollo Valves 670750950278 2-Piece Gas Shut-Off Valve 1 in 80-105-27

Product Description

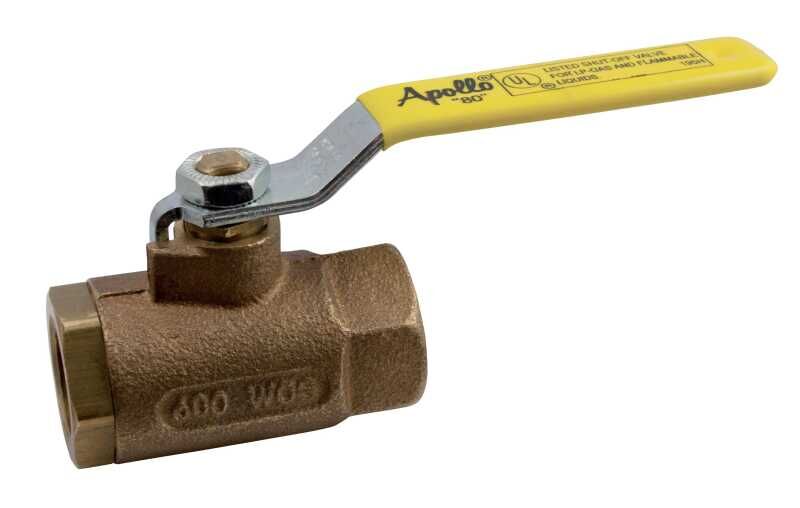

Apollo Valves 670750950278 is a 1 in bronze two-piece ball shut-off valve designed and UL listed for safe shutoff of LP gas, natural gas, flammable liquids and heated oil. The valve features FNPT connections, a standard port with a 0.87 in orifice, RPTFE seats and packing with PTFE seals, a brass stem, and a stainless steel latch-lock lever. Pressure ratings include 150 psig, 250 psig, and 600 psig; Cv is 43. Dimensions: 3.37 in inlet-to-outlet length and 2-1/4 in top-to-inlet center; temperature range -20 to 450 °F.

• Bronze two-piece body with RPTFE seats and packing, PTFE seals, and brass stem; chromium-plated brass ball
• Latch-lock stainless steel lever, FNPT connection, 1 in nominal size, 0.87 in orifice; Cv 43
• Pressure ratings: 150 psig, 250 psig, 600 psig; temperature rating -20 to 450 °F; dimensions 3.37 in length and 2-1/4 in top-to-inlet center

Product Highlights

1 in bronze 2-piece standard port ball valve, FNPT, 0.87 in orifice, latch-lock lever, pressure 150/250/600 psig

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750950278
• Country of Origin: United States

Technical Specifications

• Brand: Apollo Valves
• Manufacturer Part Number: 670750950278
• Part Number: 80-105-27
• Model Number: 8010527
• Series: 80-100 Series
• Item Name: Gas In-Line Ball Valve
• Configuration: 2-piece, standard port
• Nominal Size: 1 in
• Connection Type: FNPT
• Port Size / Thread: 1" FIP (female pipe)
• Orifice Size: 0.87 in
• Flow Coefficient (Cv): 43
• Body Material: Bronze (UNS C84400)
• Ball / Trim Material: Brass (chromium-plated ball)
• Stem Material: Brass
• Seat Material: RPTFE
• Seal Material: PTFE
• Packing Material: RPTFE
• Handle Material: Stainless Steel
• Actuator Type: Latch-lock lever
• Pressure Rating: 150 psig; 250 psig; 600 psig
• Temperature Rating: -20 to 450 °F
• Inlet to Outlet Length: 3.37 in
• Top to Inlet Center: 2-1/4 in
• Handle Length: 4.87 in
• Industry Standards: UL listed; MSS-SP-110 compliant; WW-V-35C federal specification; CRN: OC10908.5C
• Lead Free: No
• Country of Manufacture: Domestic
• UPC: 670750950278
