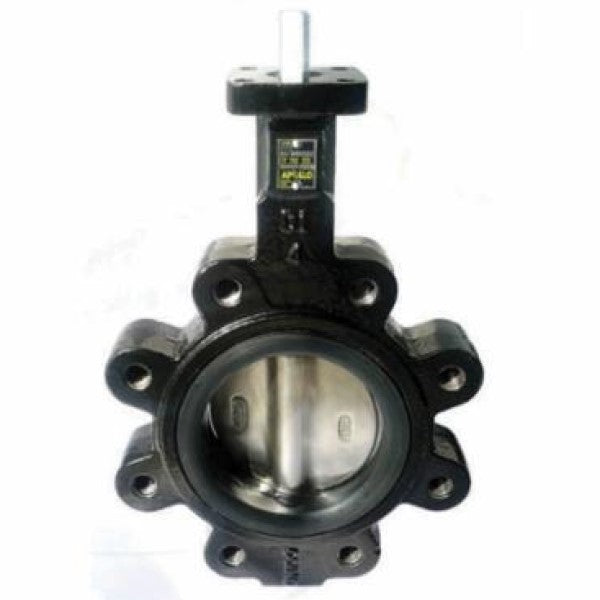

Apollo Valves 670750940187 LD14108BE12A Butterfly Valve 8 in Ductile Iron Body

Product Description

The APOLLO VALVES 670750940187 LD14108BE12A is a lug style resilient seated butterfly valve with an 8 in ductile iron body. Suitable for industrial, commercial, HVAC, and mechanical applications. It has a pressure rating of 200 psi and a temperature rating of 225 deg F. The valve is factory tested to 110% of full rated pressure in both directions before shipping.

• Compatible with ANSI 125 lb and 150 lb flanges
• ISO 5211 top plate allows choice of Apollo pneumatic actuators and gear operators
• LD141 series suitable for end of line service to rated pressure (2 to 24 in)

Product Highlights

This butterfly valve features a gear operator, EPDM seat, Buna-N stem seal, and glass reinforced epoxy resin bushing. It meets performance requirements of AWWA C-504 and has face-to-face dimensions that meet universal interchangeability standards.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750940187

Technical Specifications

• Actuator Type: Gear Operator
• Application: Industrial, Commercial, HVAC and Mechanical
• Body Material: Ductile Iron
• Mfg Standards/Approvals: API 609, ASTM A536 Body, AWWA C-504, CRN OC/2102CL, Lead Free Compliant, MSS SP-67 Compliant, NSF/ANSI 372, NSF/ANSI 61, Federal Public Law 111-380 ANSI 3rd Party Approved and Listed
• Nominal Size: 8 in
• Pressure Rating: 200 psi
• Series: LD141
• Softgoods Material: EPDM Seat/Buna-N Stem Seal/Glass Reinforced Epoxy Resin Bushing
• Temperature Rating: 225 deg F
• Top to Inlet Center: 10-1/4 in
• Type: Lug Style
