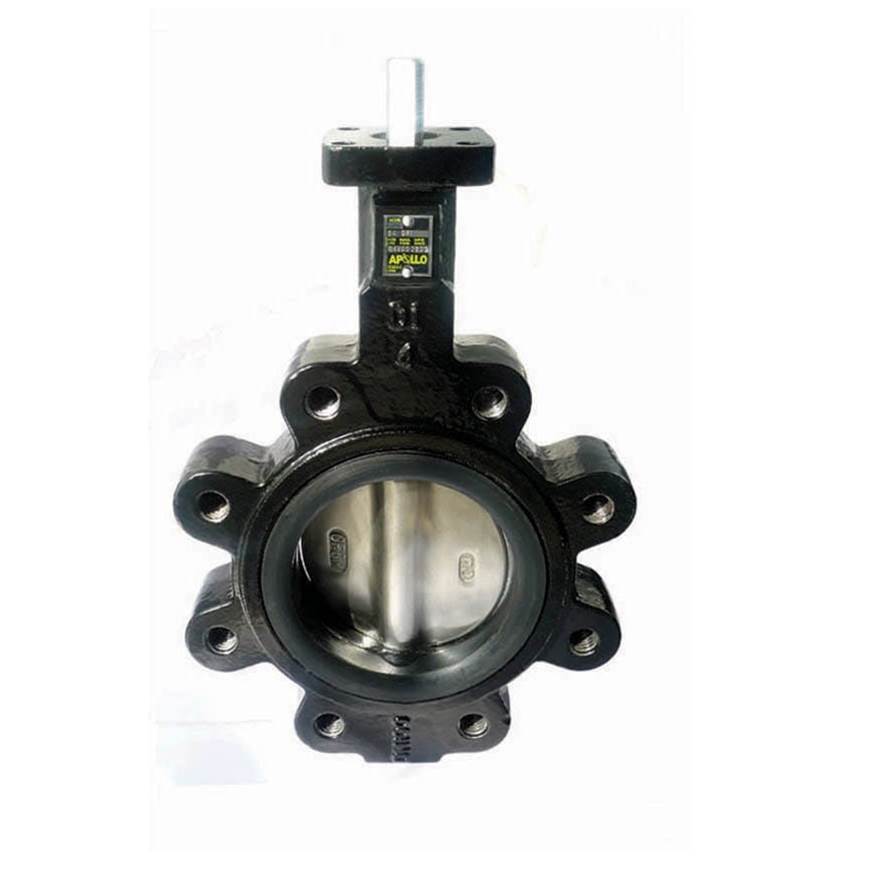

Apollo Valves 670750939808 International Ductile Iron Lugged Butterfly Valve with Aluminum Bronze Disc EPDM Seat Stainless Steel Shaft Gear Operator - Direct Mount 10 feet

Product Description

The APOLLO VALVES 670750939808 is an International Ductile Iron Butterfly Valve ideal for use in Industrial and Commercial/HVAC/Mechanical applications. It features an Aluminum Bronze Disc, EPDM Seat, and Stainless Steel Shaft with Gear Operator. Compatible with ANSI 125 lb and 150 lb Flanges and conforms to MSS SP-67 and API 609.

• Suitable for End of Line Service (Bidirectional Dead End Service) to Rated Pressure (2''-24'')
• ISO 5211 Top Plate Allows Choice of Apollo Pneumatic Actuators and Gear Operators
• 3''-24'' meet performance requirements of AWWA C-504

Product Highlights

This butterfly valve is designed for heating, cooling, and potable water applications in industry and commercial buildings.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750939808

Technical Specifications

• Product Type: Butterfly Valve
• Length: 9.5"
• Width: 6.5"
• Height: 5.62"
• Weight: 94 lbs
• Finish: Black
• Material: Cast Iron
• Shape: Straight
• Applications: Heating, Cooling, Potable Water
• Approvals: CRN, NSF
• Segments: Industry, Commercial Building
