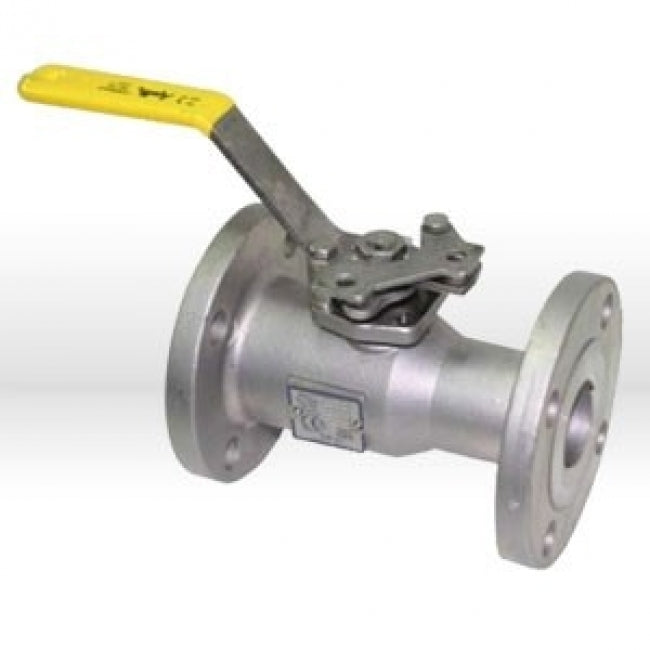

Apollo Valves 670750907449 87A-10A-01 Stainless Steel Ball Valve, 4 inches

APOLLO VALVES
Brand: APOLLO VALVES
SKU: 670750907449
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$3,131.96
$3,131.96
LTL Delivery

This product weighs 73 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The APOLLO VALVES 670750907449 87A-10A-01 is a stainless steel ball valve with a 4" nominal size. This standard port ball valve is designed for secure and effective fluid flow control. It features a two-position locking device and adjustable stem seals for efficient operation. It is rated to 150psi.

  • Two-position locking device for enhanced security.
  • Adjustable stem seals for efficient operation.
  • Anti-static grounded ball and stem.

Product Highlights

The APOLLO VALVES stainless steel ball valve ensures superior performance and reliability for fluid control applications.

Product Information

Standard Information

  • Brand: APOLLO VALVES
  • Manufacturer Part Number: 670750907449
  • Country of Origin: US

Technical Specifications

  • Manufacturer Part Number: 87A-10A-01
  • Brand: Apollo
  • Nominal Size: 4 IN
  • Connection Type: Flanged Raised Face
  • Pressure Rating: 150 PSI (SWP)
  • Pressure Class: Class 150
  • Temperature Rating: Up To 550 DEG F
  • Opening Size: 3 IN
  • Body Material: Stainless Steel
  • Operator Type: Locking Lever Handle
  • Handle Material: 316 Stainless Steel
  • Stem Material: 316 Stainless Steel
  • Trim Material: 316 Stainless Steel/PTFE
  • Gland Material: 316 Stainless Steel Packing
  • Seat Material: RPTFE
  • Seal Material: RPTFE
  • Material Standard: Body: ASTM A351 Grade CF8M, Ball: ASTM A276 Or A351 Grade CF8M, Stem And Gland: ASTM A276
  • Industry Standards: ASME B16.5, ASME B16.10, ASME B16.34, ASME B16.33, ASME B16.38, ASME B31.1, ASME B31.3, ASME B31.8, API 607, API 608, MSS-SP-25, MSS-SP-61, MSS-SP-72 Compliant, UL 125, NSF/ANSI 61, NSF-372 Certified
  • End Style: ANSI 150 Flange
  • Port Type: Standard
  • Softgoods Material: PTFE
  • Actuator Type: Lever Operated
  • Ball Material: 316 Stainless Steel
  • Inlet to Outlet Length: 9 in
  • Manufacturer Name: Apollo Conbraco
  • Series: 87A-100
  • Top to Inlet Center: 8.8 in
  • Domestic/Import: Domestic
  • Country of Origin: US
  • Standards and Approvals: API 608 | ASME B16.33/B16.38 | ASME Class 150RF | ASTM A276 | ASTM A193 B8 Class 1 | PROP65: Cancer and Reproductive Harm
  • Product Type: Ball Valve
  • Material: Stainless Steel
  • Shape: Straight
  • Applications: Compressed Air, Natural Gas
  • Segments: Industry
  • Style: 2-Part
