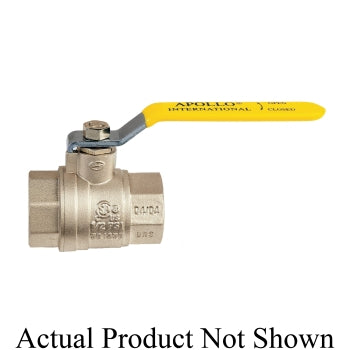

Apollo Valves 670750823381 bv 1-1/4in npt

Product Description

The APOLLO VALVES 670750823381 is a BV 1-1/4IN NPT 600#FP BRS CSA/UL. It is ideal for general flow control applications including HVAC, fuel gases, and fire protection trim and drain. The valve includes agency approvals.

• Blow-out proof stem
• Adjustable stem packing nut
• Silicone free

Product Highlights

The APOLLO VALVES 670750823381 is a reliable and economical choice for flow control, suitable for HVAC, fuel gases, and fire protection.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750823381

Technical Specifications

• Material: Brass
• Body Material: Forged Brass
• End Style: FNPT
• Nominal Size: 1-1/4 in
• Port Type: Full
• Softgoods Material: PTFE
• Actuator Type: Lever
• Ball Material: Chrome Plated Brass
• Inlet to Outlet Length: 3.307
• Manufacturer: Apollo Conbraco
• Manufacturer #: 94A-106-01
• Media: Gas
• Series: 94A
• Temperature Rating: 0 to 400 deg F
• Top to Inlet Center: 2.953
• Trim Material: Chrome Plated Brass Stem and PTFE Seat
• Type: 2-Piece
• Pressure Rating: 600 PSI (CWP)
• Opening Size: 1.26 IN
• Operator Type: Lever Handle
• Handle Material: Corrosion Resistant Steel
• Stem Material: Brass
• Packing Material: PTFE Stem
• Seat Material: PTFE
• Finish/Color: Chrome Plated Ball And Stem
• Industry Standards: MSS-SP-110 Compliant, UL Listed, CSA Certified, FM Approved
• Width: 3.307 IN
• Lead Free: No
• Other Physical Dimension: 2.953 IN Inlet Center To Top Of Handle, 4.528 IN Handle Length
• Additional Specifications: Flow Co-Efficient (Cv): 104
• Weight: 1.570 LB
