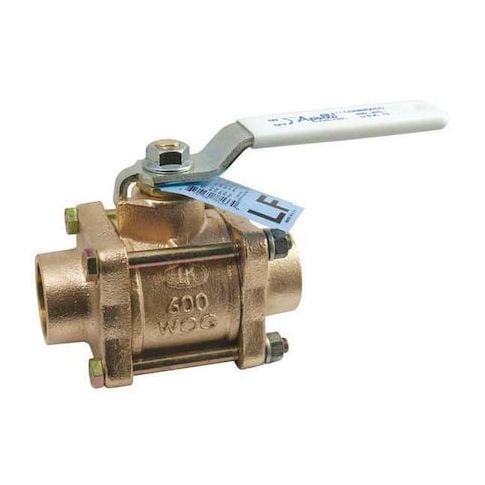

Apollo Valves 670750771385 2-1/2 inches Sweat Bronze Ball Valve Inline

Product Description

The APOLLO VALVES 670750771385 is a manual two-way ball valve with a bronze body, designed for steam and water media. This three-piece valve features a straight valve body style and a full port ball design. It has a maximum operating pressure of 600 psi and a maximum steam pressure of 150 psi.

• Body Material: Bronze
• Valve Construction: Three-Piece
• Ball Material: Chrome-Plated Brass
• Nominal Valve Size: 2 1/2 in

Product Highlights

This bronze ball valve is ideal for steam and water applications, offering a full port design and robust construction.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750771385
• Country of Origin: US

Technical Specifications

• Body Material: Bronze
• For Media: Steam, Water
• Valve Construction: Three-Piece
• Nominal Valve Size: 2 1/2 in
• Valve Body Style: Straight
• Maximum Pressure - Operating: 600 psi
• Maximum Pressure - Steam: 150 PSI WSP
• Vacuum Service Rating: 29 in Hg
• Ball Material: Chrome-Plated Brass
• Ball Port Style: Full Port
• Handle - Locking: Non-Locking
• Pipe Size: 2 1/2 in
• Overall Length: 7.25 in
• Connection Size - Side 1: 2 1/2 in
• Handle Height: 5.14 in
• Handle Length: 9.75 in
• Connection Size - Side 2: 2 1/2 in
• Valve Ways: 2-Way
• Valve Structure: Three-Piece
• Connection Type: Sweat x Sweat
• Item: Ball Valve
• Seat Material: PTFE
• Stem Material: Brass
• Handle Material: Zinc-Plated Steel
• Compliance: ISO 9001
• Stem Type: Blowout Resistant
• Ball Valve Product Group: Manual
• Handle Type: Lever
• Standards: ARRA Compliant, Build America Buy America Act (BABA), Buy American Act (BAA), CRN, Material Quality C89836 (Lead-Free)
• Temp. Range: -20 Degrees to 450 Degrees F
• Max. Pressure: 600 PSI CWP
• Seal Material: PTFE
• Type: Three Piece
• Operating Temperature - Minimum: -20 Degrees F
• Cleaned and Bagged: Not Cleaned and Bagged
• Connection Type - Side 2: Sweat
• Color - Valve Handle: White
• Connection Type - Side 1: Sweat
• Color - Valve Body: Bronze
• NSF Certifications for Food and Drinking Water: NSF 61
• Operating Temperature - Maximum: 400 Degrees F
• Valve Series: 82
• Body Style: Inline
