Apollo Valves 670750724695 82-144-01 Ball Valve 3/4 inches FNPT

Product Description

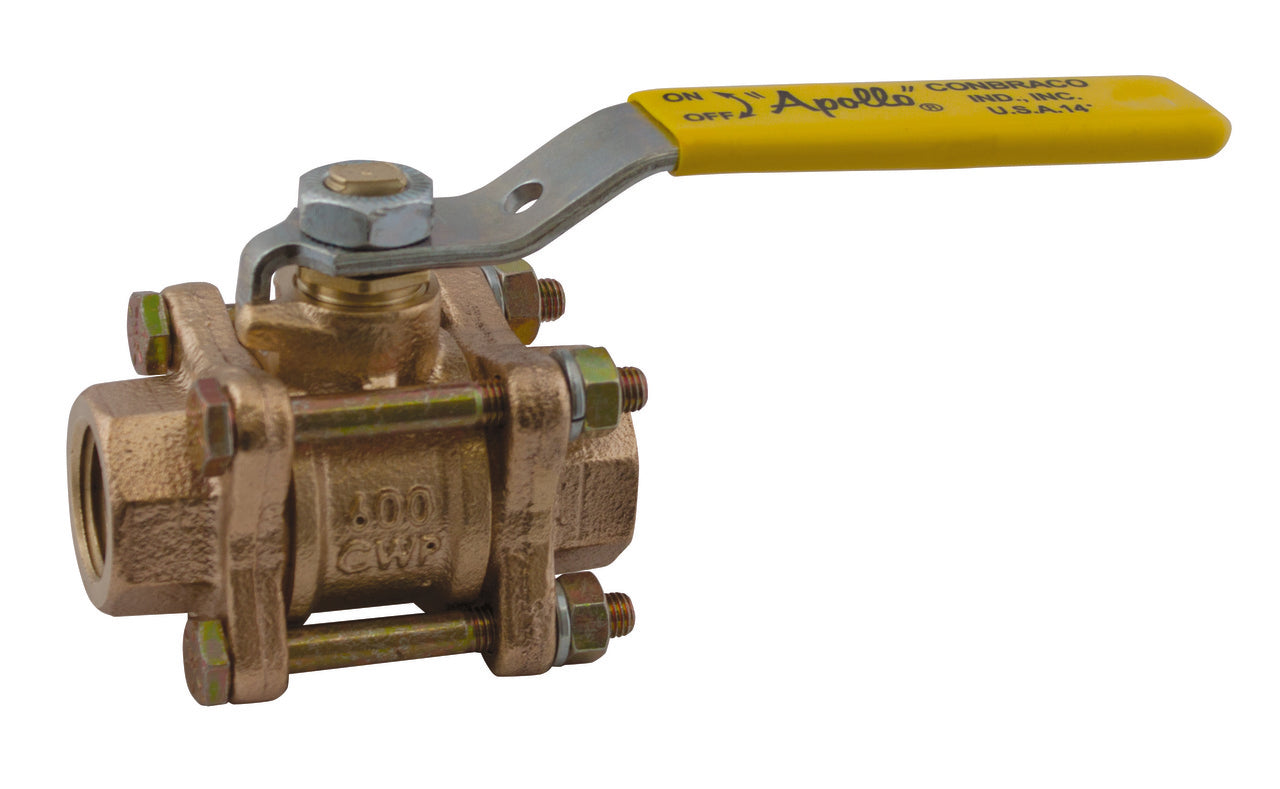

The APOLLO VALVES 670750724695 is an 82-100 series in-line serviceable full port bronze ball valve. It features SAE grade body bolts and RPTFE seals. Designed with a dezincification-resistant bronze body, the valve offers reliable performance in various applications. It has a standard lever actuator and a 316 stainless steel ball and stem.

• Dezincification-resistant bronze body
• Blow-out proof stem
• Premium RPTFE seats and seal

Product Highlights

Full port ball valve with bronze body, stainless steel components, and RPTFE seals, suitable for in-line service.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750724695
• Country of Origin: USA

Technical Specifications

• Body Material: Bronze
• End Style: FNPT
• Nominal Size: 3/4 in
• Port Type: Full
• Softgoods Material: RPTFE
• Actuator Type: Standard Lever
• Ball Material: 316 Stainless Steel
• Inlet to Outlet Length: 3.43
• Manufacturer: Apollo Conbraco
• Manufacturer #: 82-144-01
• Series: 82-100
• Temperature Rating: 500 deg F
• Top to Inlet Center: 2.18
• Trim Material: 316 Stainless Steel Stem and RPTFE Seat
• Type: 3-Piece
• Domestic / Import: Domestic
