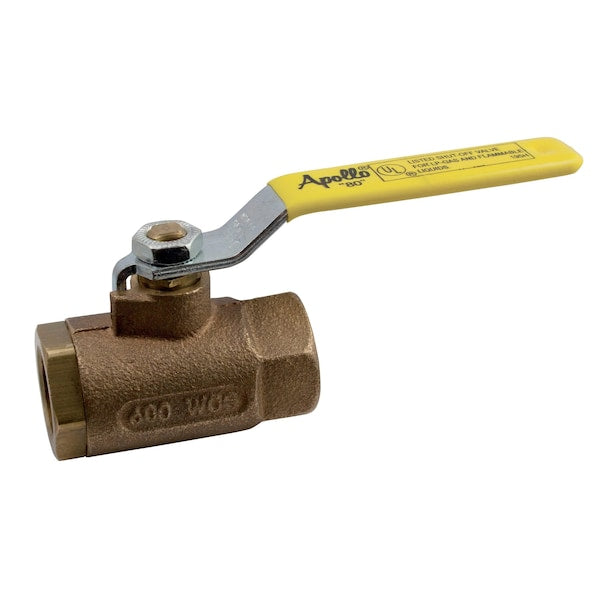

Apollo Valves 670750719264 Gas Ball Valve 1 in FNPT Bronze

Product Description

The APOLLO VALVES 670750719264 is a manual two-way ball valve with a bronze body, designed for use with natural gas and steam. It features a two-piece construction and a full port design. The valve is suitable for LP-Gas, natural gas, flammable liquid, and heating oil applications.

• Suitable for LP-Gas, Natural Gas, Flammable Liquid and Heating Oil
• Ball Material: Chrome Plated Brass
• Connection Type: FNPT x FNPT

Product Highlights

This bronze gas ball valve is ideal for natural gas and steam applications.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750719264
• Country of Origin: United States

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Style: Inline
• Ball Port Style: Full Port
• Valve Ways: 2-Way
• Valve Structure: Two-Piece
• For Media: Natural Gas, Steam
• Connection Type: FNPT x FNPT
• Item: Gas Ball Valve
• Temperature Range: -20 Degrees to 450 Degrees F
• Maximum Pressure: 250 PSI LP Gas, 600 PSI CWP
• Body Material: Bronze
• Standards: ASTM B584-C84400, Build America Buy America Act (BABA), Buy American Act (BAA), CRN
• Stem Material: Brass
• Ball Valve Product Group: Manual
• Stem Type: Blowout Resistant
• Compliance: MSS SP-110, UL Listed
• Seat Material: PTFE
• Handle Material: PVC, Zinc-Plated Steel
• Handle Type: Lever
• Seal Material: PTFE
• Type: Two Piece, Gas
• Maximum Pressure - Combustible Gas: Not Rated
• Meets UL Flammable Gas and Liquid Standards: UL 125, UL 1477, UL 842
• Connection Gender - Side 2: Female
• Vacuum Service Rating: 29 in Hg
• Operating Temperature - Minimum: -20 Degrees F
• Handle - Locking: Non-Locking
• Cleaned and Bagged: Not Cleaned and Bagged
• Color - Valve Handle: Yellow
• Connection Type - Side 2: NPT
• 3-A Standard Compliance: Not Rated
• Connection Gender - Side 1: Female
• Maximum Pressure - Steam: 150 PSI WSP
• Operating Temperature - Maximum: 450 Degrees F
• Connection Type - Side 1: NPT
• Valve Series: 80
• Pipe Size: 1 in
• Overall Length: 3.37 in
• Nominal Valve Size: 1 in
• Handle Length: 4.87 in
• Handle Height: 2.25 in
• Connection Size - Side 1: 1 in
• Connection Size - Side 2: 1 in
