Apollo Valves 670750702860 Ball Valve 3/8 inches FNPT

Product Description

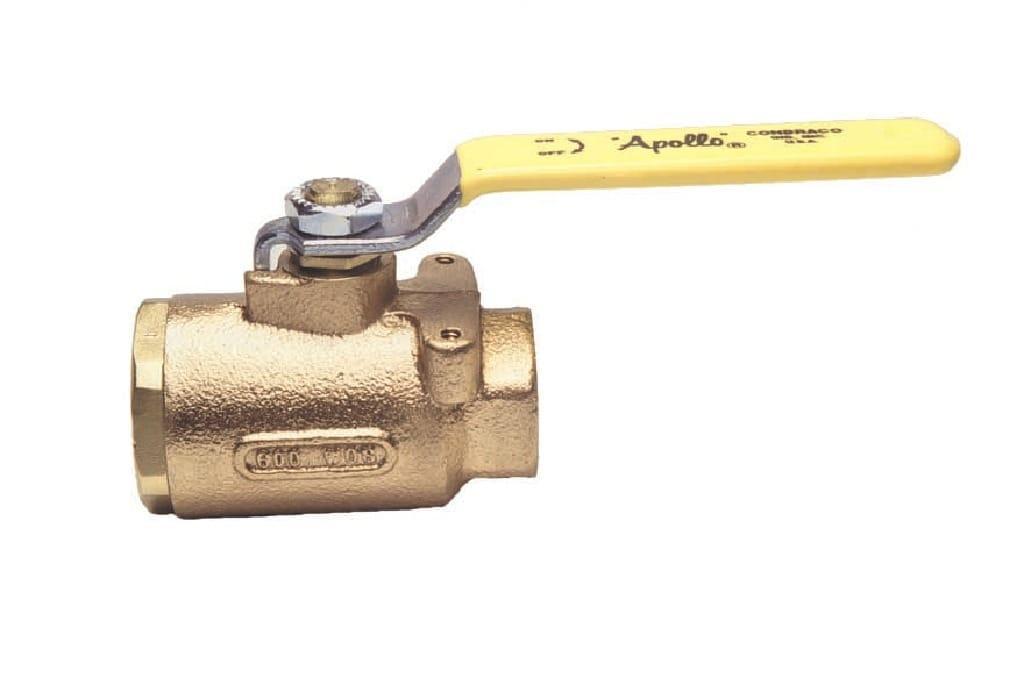

The APOLLO VALVES 670750702860 is a manual two-way ball valve with a bronze body, designed for steam media. Featuring a two-piece valve construction and a straight valve body style, it has a nominal valve size of 3/8 inches. It is designed with a full port and a non-locking lever handle.

• Ball Material: Chrome Plated Bronze
• Body Style: Inline
• Ball Port Style: Full Port

Product Highlights

This ball valve is suitable for steam applications, offering reliable performance with its robust bronze body and full port design.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750702860
• Country of Origin: United States

Technical Specifications

• MFR #: 7710201
• Zoro #: G3110301
• UPC #: 670750702860
• Country of Origin: United States
• Pipe Size: 3/8 in
• Overall Length: 2.18 in
• Handle Height: 1.77 in
• Handle Length: 3.87 in
• Nominal Valve Size: 3/8 in
• Connection Size - Side 2: 3/8 in
• Connection Size - Side 1: 3/8 in
• Ball Material: Chrome Plated Bronze
• Body Style: Inline
• Ball Port Style: Full Port
• Valve Ways: 2-Way
• Valve Structure: Two-Piece
• For Media: Steam
• Connection Type: FNPT x FNPT
• Item: Ball Valve
• Stem Type: Blowout Resistant
• Handle Type: Lever
• Handle Material: PVC, Zinc-Plated Steel
• Body Material: Bronze
• Temp. Range: Up to 500 Degrees F
• Ball Valve Product Group: Manual
• Stem Material: Brass
• Standards: ARRA Compliant, ASTM B584-C84400, Build America Buy America Act (BABA), Buy American Act (BAA), CRN
• Compliance: ISO 9001
• Seat Material: PTFE
• Max. Pressure: 600 PSI CWP
• Seal Material: PTFE
• Type: Two Piece
• Connection Type - Side 2: NPT
• Connection Gender - Side 1: Female
• Connection Gender - Side 2: Female
• Vacuum Service Rating: 29 in Hg
• Included Mounting: Actuator Mounting Pad
• Operating Temperature - Minimum: -20 Degrees F
• Operating Temperature - Maximum: 500 Degrees F
• 3-A Standard Compliance: Not Rated
• Cleaned and Bagged: Not Cleaned and Bagged
• Maximum Pressure - Combustible Gas: Not Rated
• Maximum Pressure - Steam: 150 PSI WSP
• Color - Valve Body: Bronze
• Valve Series: 77
