Apollo Valves 670750669170 3/8 FNPT Bronze Ball Valve (3/8 in) 7030201

Product Description

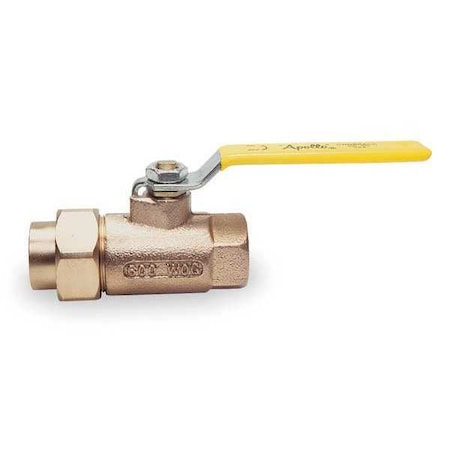

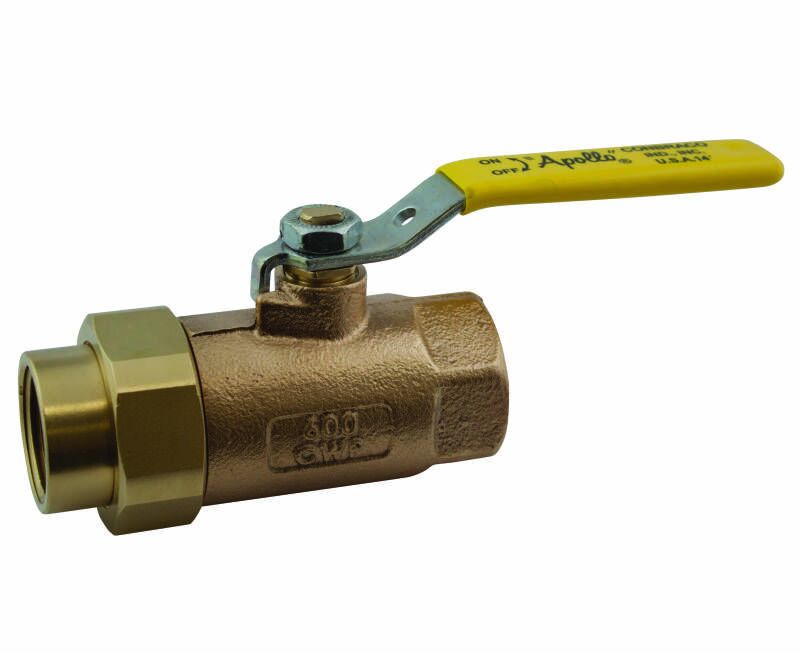

Apollo Valves 670750669170 is a 3/8 in bronze inline single union ball valve designed for steam service. The two-piece standard-port valve has FNPT union connections, a chrome-plated brass ball, PTFE seats and seals, and a blowout-resistant brass stem with a PVC and zinc-plated steel lever handle. It is rated 600 PSI CWP (150 PSI WSP for steam), operates from -20 to 450°F, and has a Cv of 0.01.

• Bronze body with chrome-plated brass ball and PTFE seats/seals; two-piece inline single union construction
• 3/8 in FNPT union x FNPT connections, lever handle (PVC, zinc-plated steel), blowout-resistant brass stem
• Ratings: 600 PSI CWP, 150 PSI WSP (steam); operating temperature -20 to 450°F; Cv 0.01; vacuum rating 29 in Hg

Product Highlights

3/8 in bronze union ball valve for steam service; two-piece inline design with PTFE seats and blowout-resistant stem

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750669170
• Country of Origin: United States

Technical Specifications

• Brand: Apollo Valves
• Manufacturer Part Number: 670750669170
• Model Number: 7030201
• UPC: 670750669170
• Item: Ball Valve
• Valve Type: Ball Valve
• Body Material: Bronze
• Ball Material: Chrome-Plated Brass
• Seat Material: PTFE
• Seal Material: PTFE
• Stem Material: Brass
• Handle Material: PVC, Zinc-Plated Steel
• Handle Type: Lever
• Body Style: Inline Single Union
• Valve Structure: Two-Piece
• Valve Ways: 2-Way
• Connection Type: FNPT union x FNPT
• Connection Size: 3/8 in
• Nominal Valve Size: 3/8 in
• For Media: Steam
• Maximum Pressure (CWP): 600 PSI
• Maximum Pressure (Steam WSP): 150 PSI
• Temperature Range: -20 to 450 F
• Coefficient of Volume (Cv): 0.01
• Vacuum Service Rating: 29 in Hg
• Overall Length: 2.93 in
• Handle Height: 1.75 in
• Handle Length: 3.87 in
• Weight: 0.81 lb
• Standards/Certifications: MSS SP-110; ASTM B584-C84400; Build America Buy America Act (BABA); Buy American Act (BAA); CRN
• Country of Origin: United States
• Product Group: Manual
• Valve Series: 70
• Item Type: Two Piece, Union End
