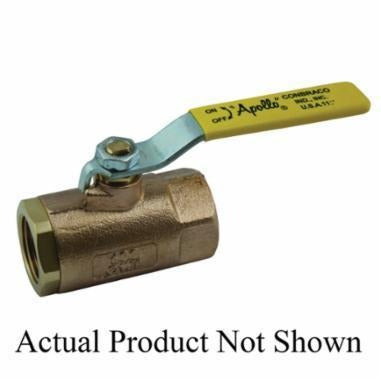

Apollo Valves 670750662300 2-piece Ball Valve 1-1/2 in Fnpt

Product Description

The APOLLO VALVES 670750662300 is a 2-piece, standard port bronze ball valve from the 70-140 Series, sized at 1-1/2 inches nominal with female NPT connections on both ends. It is designed for isolation service on gas and water systems in commercial and residential plumbing, HVAC, and mechanical piping applications. The valve body is cast from ASTM B584-C84400 bronze, the ball and stem are 316 stainless steel, and the seat and packing are MPTFE with a PTFE seal. It carries a 150 psig steam rating and a 600 psig cold working pressure rating, with a maximum temperature rating of 500 degrees F. A steel lever handle is included for manual quarter-turn operation. Domestic manufacture is confirmed. Licensed plumbers and pipefitters are the primary installers.

This valve fits into standard-port ball valve positions on gas lines, domestic water systems, hydronic heating loops, and general mechanical piping where a reliable shutoff is required. The 1-1/4 inch orifice and 84 Cv flow coefficient support adequate flow capacity for typical 1-1/2 inch line service. The FNPT connections thread directly onto male-threaded pipe or fittings without additional adapters. The 70-140 Series is suited for both new construction and retrofit work where a compact, full-shutoff bronze valve is specified.

Key Features

• 2-piece bronze body cast and machined to ASTM B584-C84400 and ASTM B16 material standards
• 316 stainless steel ball and stem for corrosion resistance in gas and water service
• MPTFE seat and packing with PTFE seal for low-torque, low-emissions performance
• 150 psig steam / 600 psig cold working pressure ratings
• 500 degrees F maximum temperature rating
• Standard port, 1-1/4 inch orifice with 84 Cv flow coefficient
• Steel lever actuator for quarter-turn manual operation

Compatibility

Designed as an OEM-style replacement or new-installation valve for 1-1/2 inch FNPT piping systems carrying gas or water media where a standard-port bronze ball valve is specified.

Installation Notes

Installation is typically performed by a licensed plumber or pipefitter. Shut off and depressurize the line and purge any residual gas or fluid before removing or installing the valve. Apply thread sealant or PTFE tape to male threads per the applicable piping code — IFGC for gas service or IPC for water service. Confirm inlet-to-outlet length of 4.37 inches and top-to-inlet-center height of 3.06 inches clear the installation envelope before threading the valve into place.
