Apollo Valves 670750661679 1-1/4 in FNPT bronze ball valve inline (1-1/4 in) 7014664

Product Description

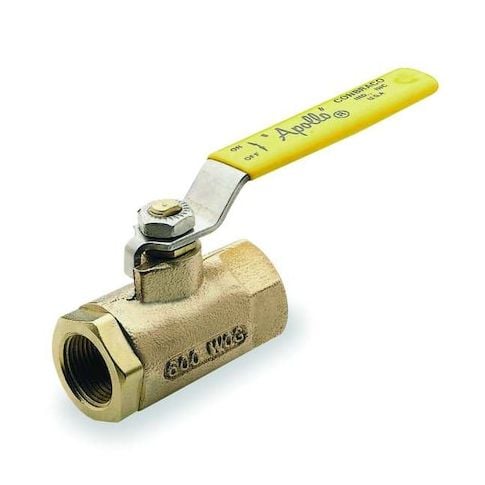

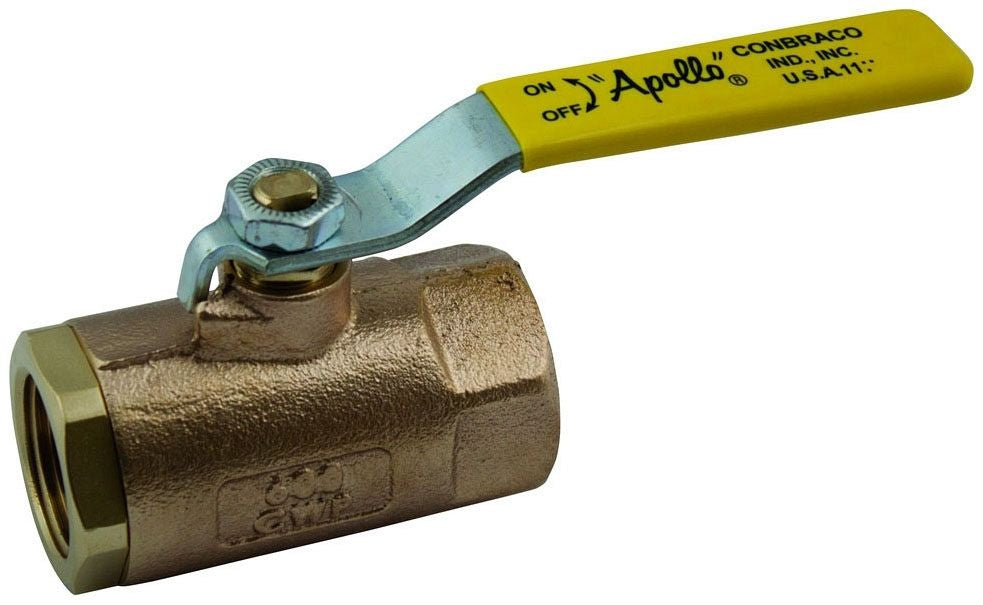

Apollo Valves 670750661679 is a 1-1/4 in FNPT inline bronze two-piece ball valve designed for steam and high-temperature service. The manual two-way valve features a bronze body with a chrome-plated ball, standard port straight-body design, and lever operation. It is rated to 600 psi CWP, 250 psi SWP, and -20 to 500 F, and supports vacuum service to 29 in Hg for industrial heating, cooling, and steam systems.

• Manual two-way 2-piece inline ball valve with 1-1/4 in FNPT female connections and lever handle
• Bronze body with chrome-plated ball, MPTFE/PTFE softgoods, 316 stainless steel stem, standard port
• Pressure rating 600 psi (CWP), steam rating 250 psi (SWP), temperature -20 to 500 F, vacuum to 29 in Hg

Product Highlights

Standard-port bronze ball valve, lever operated, 1-1/4 in FNPT, 600 psi CWP, suitable for steam and industrial fluid systems

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750661679
• Country of Origin: US

Technical Specifications

• Manufacturer Part Number: 7014664
• Alternate Part Number / UPC: 670750661679
• Brand: Apollo Valves
• Series/Model: 70-140
• Type: 2-Piece ball valve
• Nominal Size: 1-1/4 in
• Connection Type: 1-1/4 in FNPT (female)
• Port Type: Standard port
• Body Material: Bronze
• Ball Material: Chrome-plated bronze
• Stem Material: 316 stainless steel
• Seat Material: MPTFE
• Seal Material: PTFE
• Operation: Manual lever
• Valve Function: Two-way
• Pressure Rating: 600 psi (CWP); 250 psi (SWP)
• Temperature Rating: -20 to 500 F
• Vacuum Service Rating: 29 in Hg
• Flow Coefficient (Cv): 48
• Inlet to Outlet Length: 4 in
• Top to Inlet Center: 2.62 in
• Handle Length: 5.5 in
• Weight: 3.15 lb
• Country of Origin: US
• Standards/Approvals: MSS-SP-110; CSA B51; CRN OC10908.5C; Prop 65
