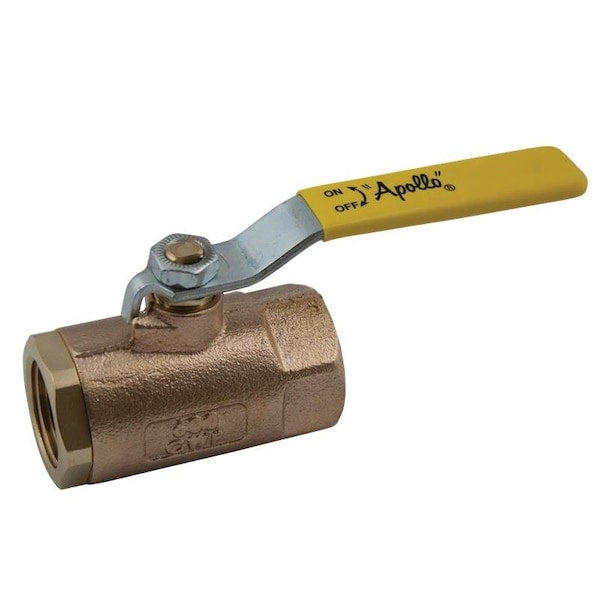

Apollo Valves 670750659607 1/2 in FNPT Bronze Ball Valve Inline (1/2 in)

Product Description

The Apollo Valves 670750659607 is a manual two-way inline bronze ball valve with 1/2 in FNPT female connections intended for steam service. It features PTFE seats and seals, a blowout-resistant 316 stainless steel stem, and a zinc-plated steel lever handle. Rated to 600 PSI CWP and 250 PSI WSP for steam, it operates from -20 to 450 degrees F and has a vacuum rating of 29 in Hg; not rated for combustible gas or potable water.

• Bronze body with 316 stainless steel / chrome-plated bronze ball and PTFE seats; FNPT x FNPT 1/2 in connections.
• Pressure ratings: 600 PSI CWP; steam WSP 250 PSI; temperature range -20 to 450 degrees F; vacuum rating 29 in Hg.
• Two-piece, 2-way inline construction with blowout-resistant stem and non-locking zinc-plated steel lever handle; standard port.

Product Highlights

Manual 1/2 in FNPT bronze ball valve for steam service; PTFE seats; 600 PSI CWP, 250 PSI WSP.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750659607
• Country of Origin: United States

Technical Specifications

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750659607
• UPC: 670750659607
• Country of Origin: United States
• Pipe Size: 1/2 in
• Nominal Valve Size: 1/2 in
• Connection Type: FNPT x FNPT (Female NPT)
• Connection Size: 1/2 in (Female NPT)
• Body Material: Bronze
• Ball Material: 316 stainless steel / chrome-plated bronze
• Ball Port Style: Standard port
• Valve Ways: 2-way
• Valve Structure: Two-piece
• For Media: Steam (not rated for combustible gas or potable water)
• Seat Material: PTFE
• Seal Material: PTFE
• Stem Type: Blowout resistant
• Stem Material: 316 Stainless Steel
• Handle Material: Zinc-plated steel
• Handle Type: Lever (non-locking)
• Body Style: Inline
• Max Pressure (CWP): 600 PSI
• Maximum Pressure - Steam (WSP): 250 PSI
• Vacuum Rating: 29 in Hg
• Temperature Range: -20 to 450 Degrees F
• Overall Length: 2.25 in
• Handle Length: 3.85 in
• Standards: ARRA Compliant; ASTM B584-C84400; Build America Buy America Act (BABA); Buy American Act (BAA); CRN
• Compliance: ISO 9001
• Valve Series: 70
• Item: Ball Valve
• Type: Two Piece
