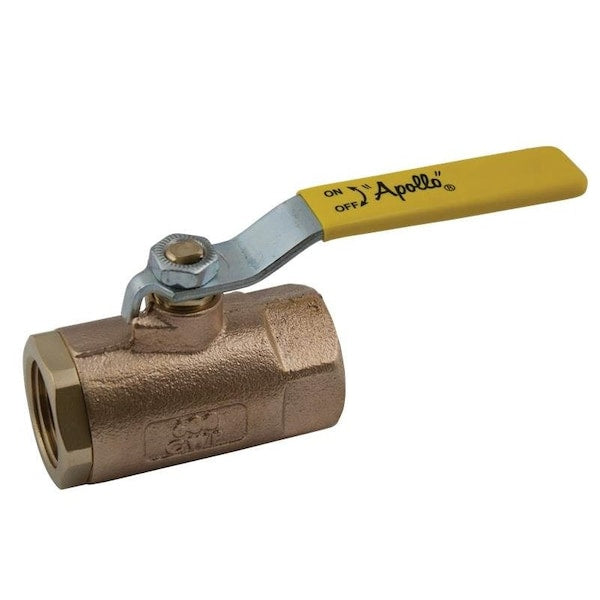

Apollo Valves 670750654145 Ball Valve 1-1/4 inches FNPT

Product Description

The APOLLO VALVES 670750654145 is a manual two-way ball valve with a bronze body, designed for steam media. This two-piece valve features a straight valve body style and a standard port. Suitable for various applications, it ensures reliable performance with its heavy pattern construction.

• Ball Material Chrome Plated Bronze
• Body Style Inline
• Ball Port Style Standard Port

Product Highlights

This ball valve offers robust construction and is ideal for steam applications.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750654145
• Country of Origin: United States

Technical Specifications

• MFR #: 7010601
• Zoro #: G2851502
• UPC #: 670750654145
• Country of Origin: United States
• Pipe Size: 1 1/4 in
• Overall Length: 4 in
• Connection Size - Side 2: 1 1/4 in
• Nominal Valve Size: 1 1/4 in
• Connection Size - Side 1: 1 1/4 in
• Handle Length: 5.5 in
• Handle Height: 2.62 in
• Ball Material: Chrome Plated Bronze
• Body Style: Inline
• Ball Port Style: Standard Port
• Valve Ways: 2-Way
• Valve Structure: Two-Piece
• For Media: Steam
• Connection Type: FNPT x FNPT
• Item: Ball Valve
• Seat Material: PTFE
• Features: Heavy Pattern Construction
• Handle Material: PVC, Zinc-Plated Steel
• Stem Material: Brass
• Standards: ARRA Compliant, ASTM B584-C84400, Build America Buy America Act (BABA), Buy American Act (BAA), CRN, MSS SP-110 Compliant
• Body Material: Bronze
• Temperature Range: -20 Degrees to 450 Degrees F
• Handle Type: Lever
• Ball Valve Product Group: Manual
• Stem Type: Blowout Resistant
• Max. Pressure: 600 PSI CWP
• Compliance: MSS SP-110
• Seal Material: PTFE
• Type: Two Piece
• 3-A Standard Compliance: Not Rated
• Operating Temperature - Maximum: 500 Degrees F
• Color - Valve Handle: Yellow
• Maximum Pressure - Combustible Gas: Not Rated
• Connection Type - Side 2: NPT
• Handle - Locking: Non-Locking
• Maximum Pressure - Steam: 150 PSI WSP
• Color - Valve Body: Bronze
• Vacuum Service Rating: 29 in Hg
• Cleaned and Bagged: Not Cleaned and Bagged
• Operating Temperature - Minimum: -20 Degrees F
• Connection Gender - Side 2: Female
• Connection Type - Side 1: NPT
• Connection Gender - Side 1: Female
• Valve Series: 70
• Valve Type: Standard Ball Valve
• Port Type: Standard
• Trim Material: Bronze
• Wsp Rating: 150psi
• Number Of Pieces: 2
