Apollo Valves 670750651045 Bv 1/2in Npt Brz

Product Description

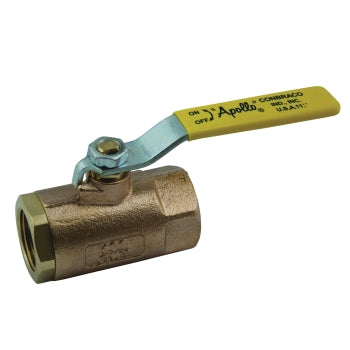

The APOLLO VALVES 670750651045 is a BV 1/2IN NPT BRZ LATCH LVR. The Apollo䋢 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a 2-piece standard port ball valve featuring female NPT connections.

• Premium materials and heavy duty construction
• Adjustable stem packing gland
• Blow-out proof stem

Product Highlights

This valve is cast and machined in Apollo䋢's South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750651045

Technical Specifications

• Type: 2-Piece
• Series: 70-100
• Nominal Size: 1/2 in
• End Style: FNPT
• Pressure Rating: 600 psig CWP
• Temperature Rating: 500 deg F
• Port Type: Standard
• Media: Water
• Actuator Type: Lever
• Ball Material: Chrome Plated Brass
• Inlet to Outlet Length: 2.17 in
• Top to Inlet Center: 1-3/4 in
• Body Material: Bronze
• Trim Material: Brass Stem and PTFE Seat
• Softgoods Material: MPTFE/RPTFE
• Domestic/Import: Domestic
