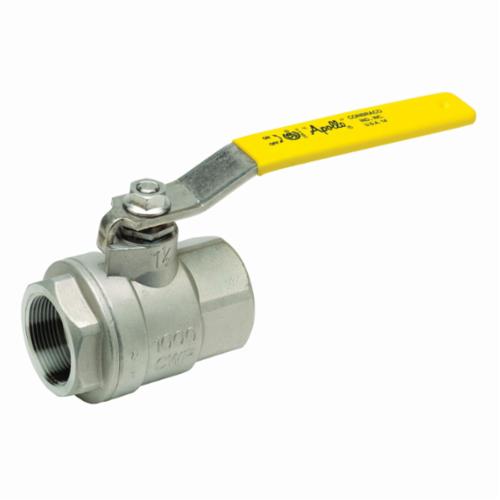

Apollo Valves 670750614743 76F-107-01-A Ball Valve 1-1/2 inches FNPT

Product Description

The APOLLO VALVES 670750614743 is a 76F-107-01-A series 2-piece ball valve with a 1-1/2" nominal size and FNPT end style. It features a stainless steel body and a 316 stainless steel ball. The valve is designed with RPTFE/MPTFE softgoods and a lever actuator, suitable for various applications.

• Investment cast components
• Reinforced seats
• Blow-out proof stem

Product Highlights

This ball valve offers reliable performance with its robust stainless steel construction and reinforced design.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750614743
• Country of Origin: Domestic

Technical Specifications

• Body Material: Stainless Steel
• End Style: FNPT
• Nominal Size: 1-1/2 in
• Port Type: Full
• Softgoods Material: RPTFE/MPTFE
• Actuator Type: Lever
• Ball Material: 316 Stainless Steel
• Inlet to Outlet Length: 4.1 in
• Manufacturer: Apollo Conbraco
• Series: 76F-100-A
• Top to Inlet Center: 3.31 in
• Trim Material: 316 Stainless Steel Stem and RPTFE Seat
• Type: 2-Piece
• Domestic / Import: Domestic
• Pressure Rating: 1000 psig CWP
